Nokia G-010G-D
Hardware Specifications
| Vendor/Brand | Nokia |
| Model | G-010G-D |
| Chipset | RTL9607FS |
| Flash | 256MB (SPI-NAND, Winbond 25N02KVZEIE) |
| RAM | 512MB |
| System | Linux (Realtek Unified SDK 2.2.0) |
| 2.5GBaseT | Yes |
| Optics | SC/APC |
| IP address | 192.168.1.254 |
| Web Gui | ✅ user adminadmin, password ALC#FGU (⚠️ only available when the PON connection IS NOT estabilished) |
| SSH | ✅ user adminadmin, password ALC#FGU, but has access to limited shell |
| Telnet | |
| Serial | ⚠️ (U-boot is password protected, Linux kernel disabled it after boot) |
| Serial baud | 115200 |
| Serial encoding | 8-N-1 |
| Form Factor | ONT |
List of software versions
- 3TN00816JJLJ25
List of partitions
| dev | name |
|---|---|
| mtd0 | “boot” |
| mtd1 | “env” |
| mtd2 | “env2” |
| mtd3 | “RI” |
| mtd4 | “binfo” |
| mtd5 | “image0” |
| mtd6 | “image1” |
| mtd7 | “cfg” |
| mtd8 | “cfg_bak” |
| mtd9 | “log” |
| mtd10 | “extfs” |
| mtd11 | “mft_data” |
Serial

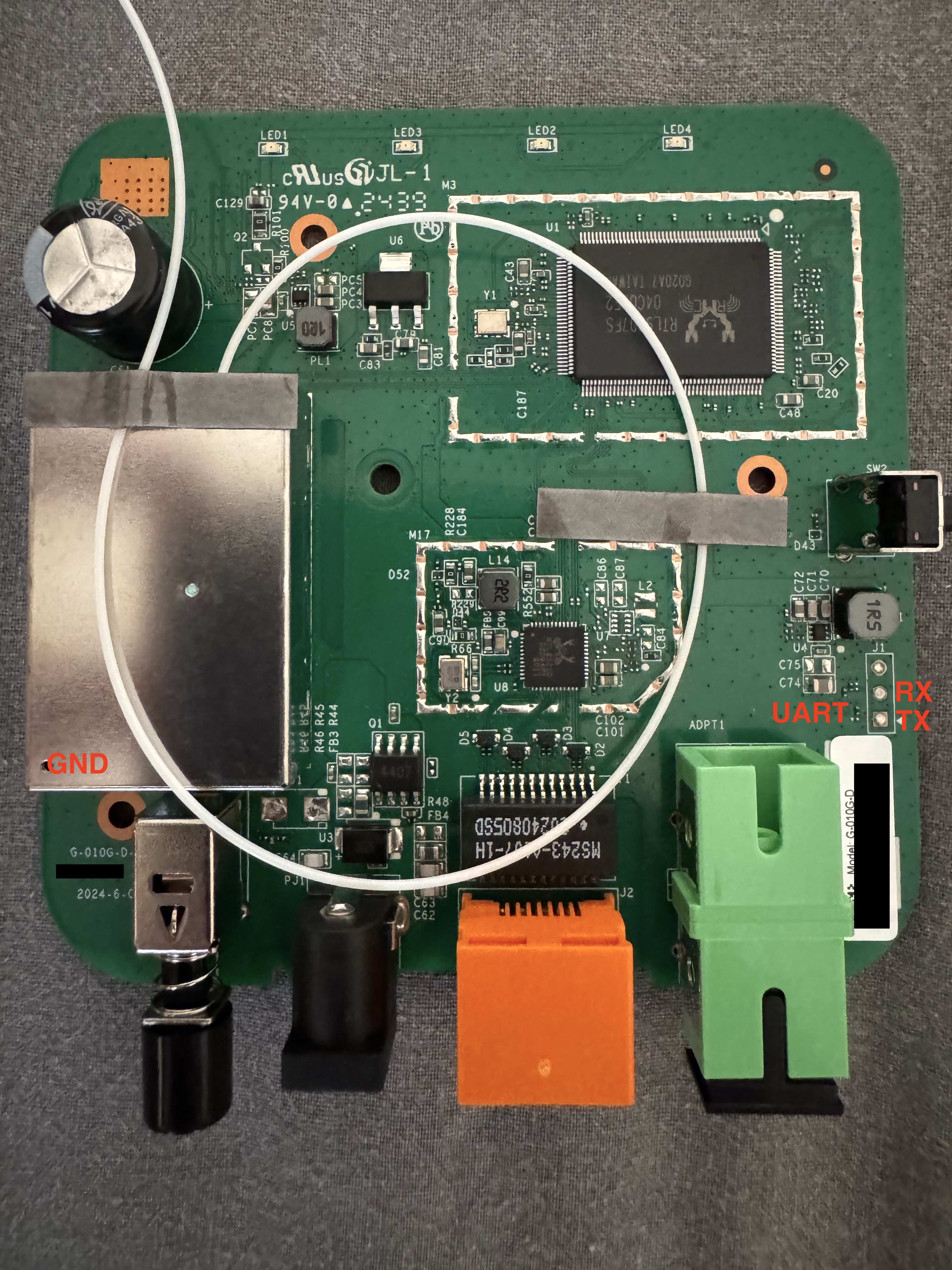

The ONT has a TTL 3.3v UART console (configured as 115200 8-N-1) that can be accessed from the top surface. To accept TX line commands, the GND of the TTL adapter should be attached to the ONT’s shield.
Photos

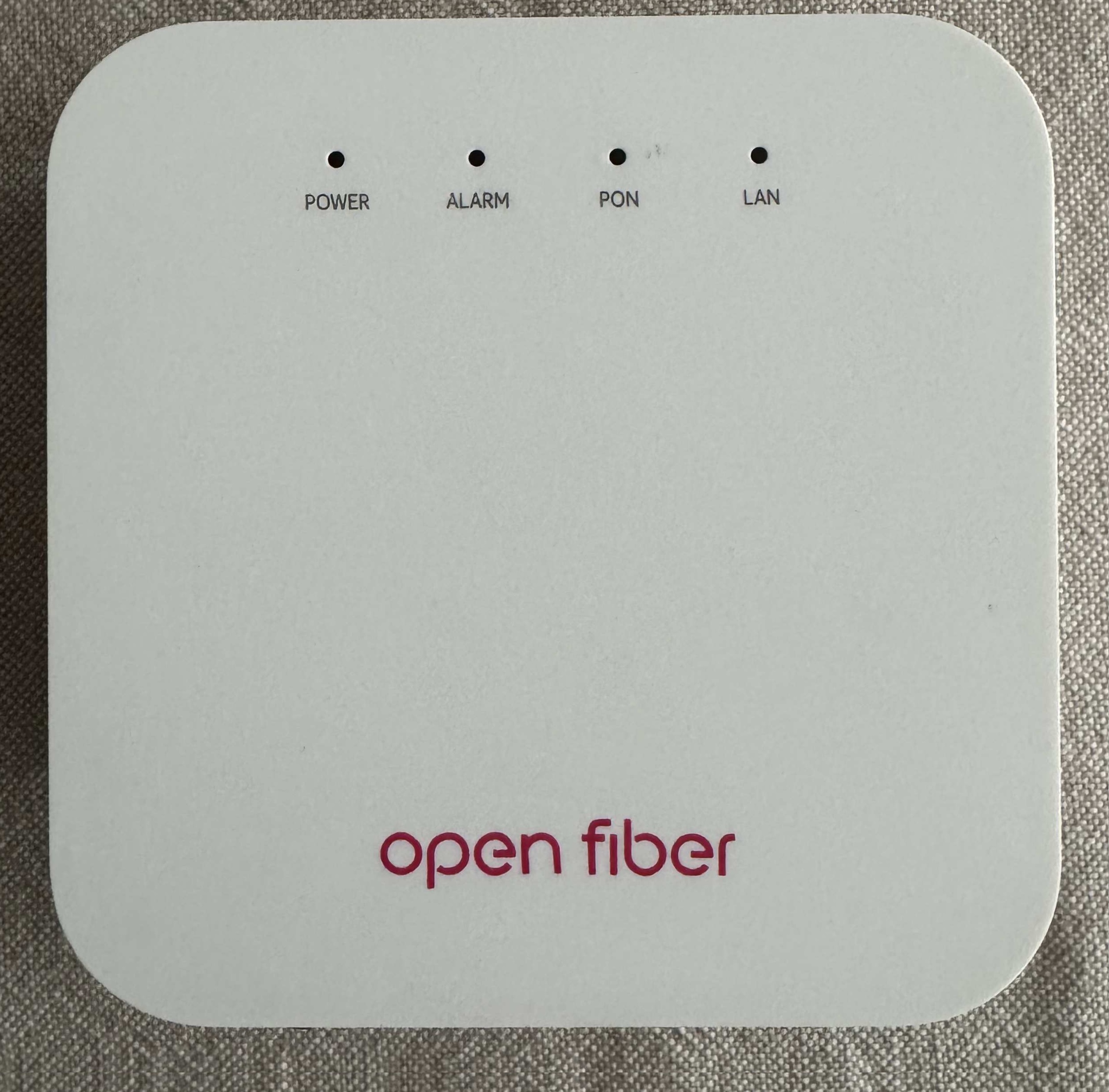

Front:

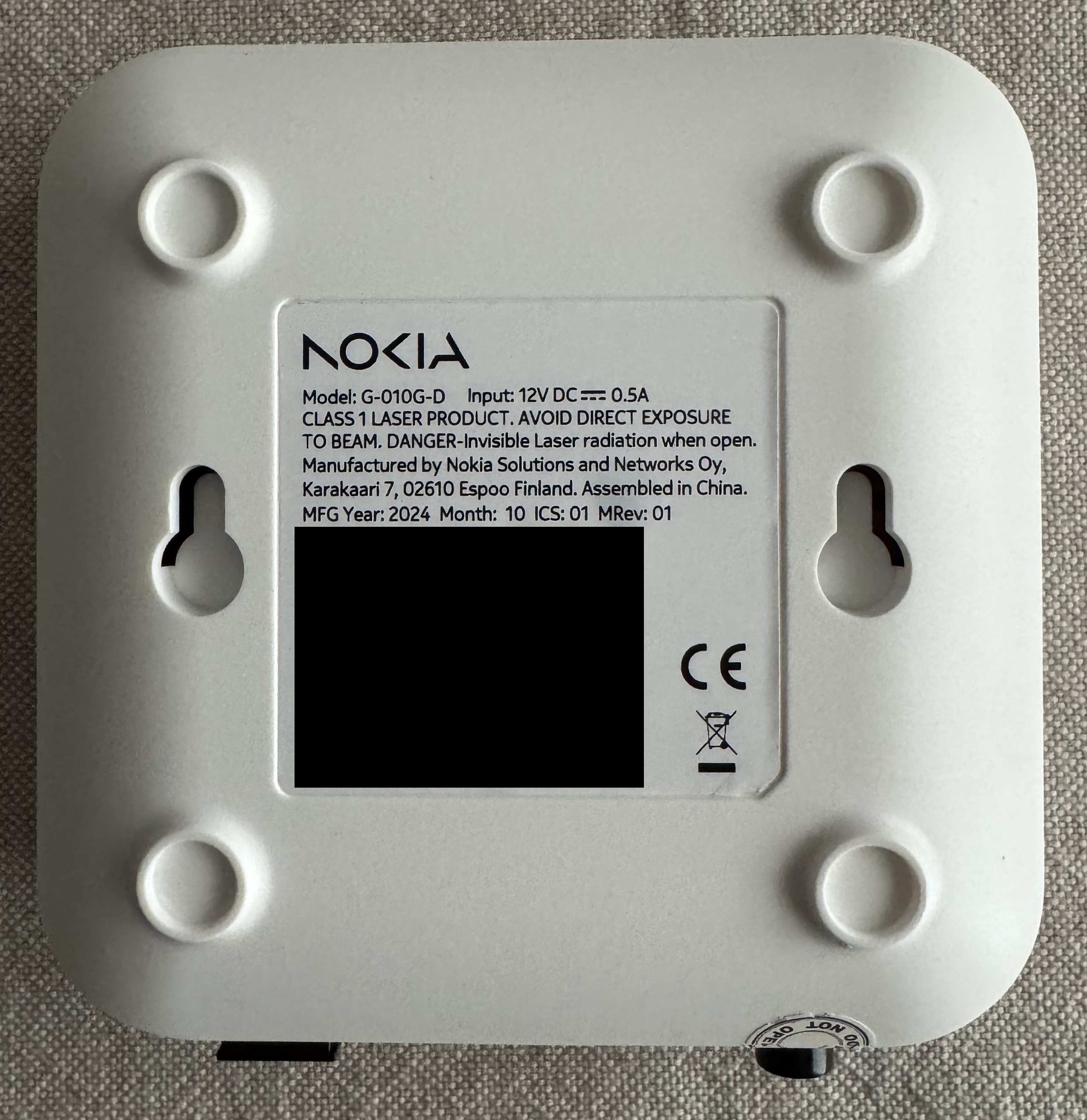

Back:
Front Internal:

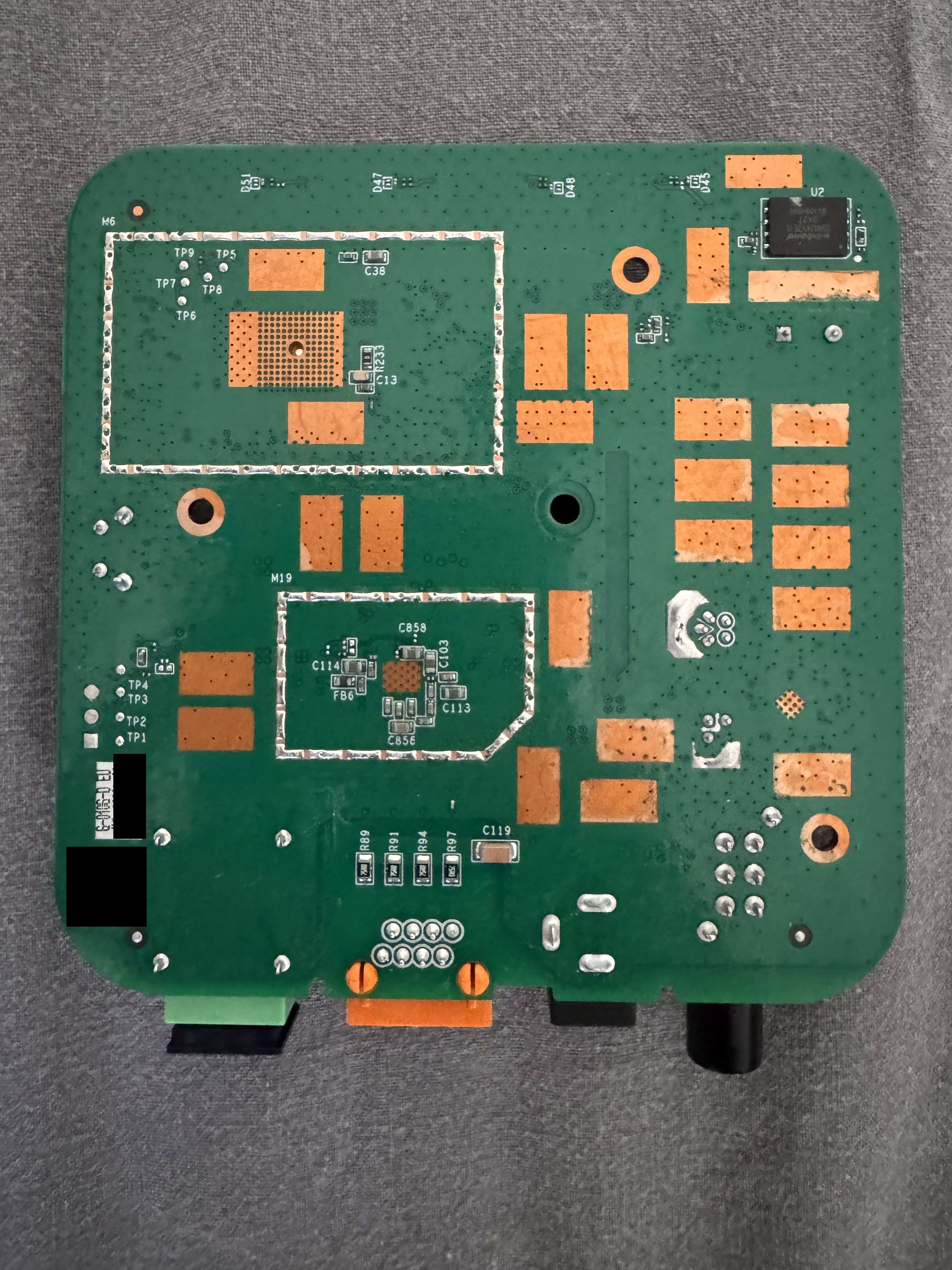

Back Internal:
