Hardware Specifications

Vendor/Brand	CIG
Model	G-97X2
ODM	✅
CPU	Realtek RTL9606
DRAM	128 MB (MXIC MX30LF1G18AC)
Flash Size	128 MB (Nanya NT5CC64M16GP-DI)
CPU Arch	MIPSBE Realtek Lexra
CPU Clock	700MHz
Bootloader	U-Boot CIG custom RSDK 2011
System	Linux 2.6.30.9-cig-sfu-1 (Realtek RSDK-1.5.6p2)
Ethernet ports	4x 1000Base-T
Voice	2x POTS
Optics	SEMTECH 25L95 SC/APC
IP address	GE1 Port - 192.168.100.1/24
Web Gui	❌
SSH	❌
Telnet	✅
FTP	✅(Basic ftpput/ftpget)
Serial	✅
Serial baud	115200
Serial encoding	8-N-1
Form Factor	ONT

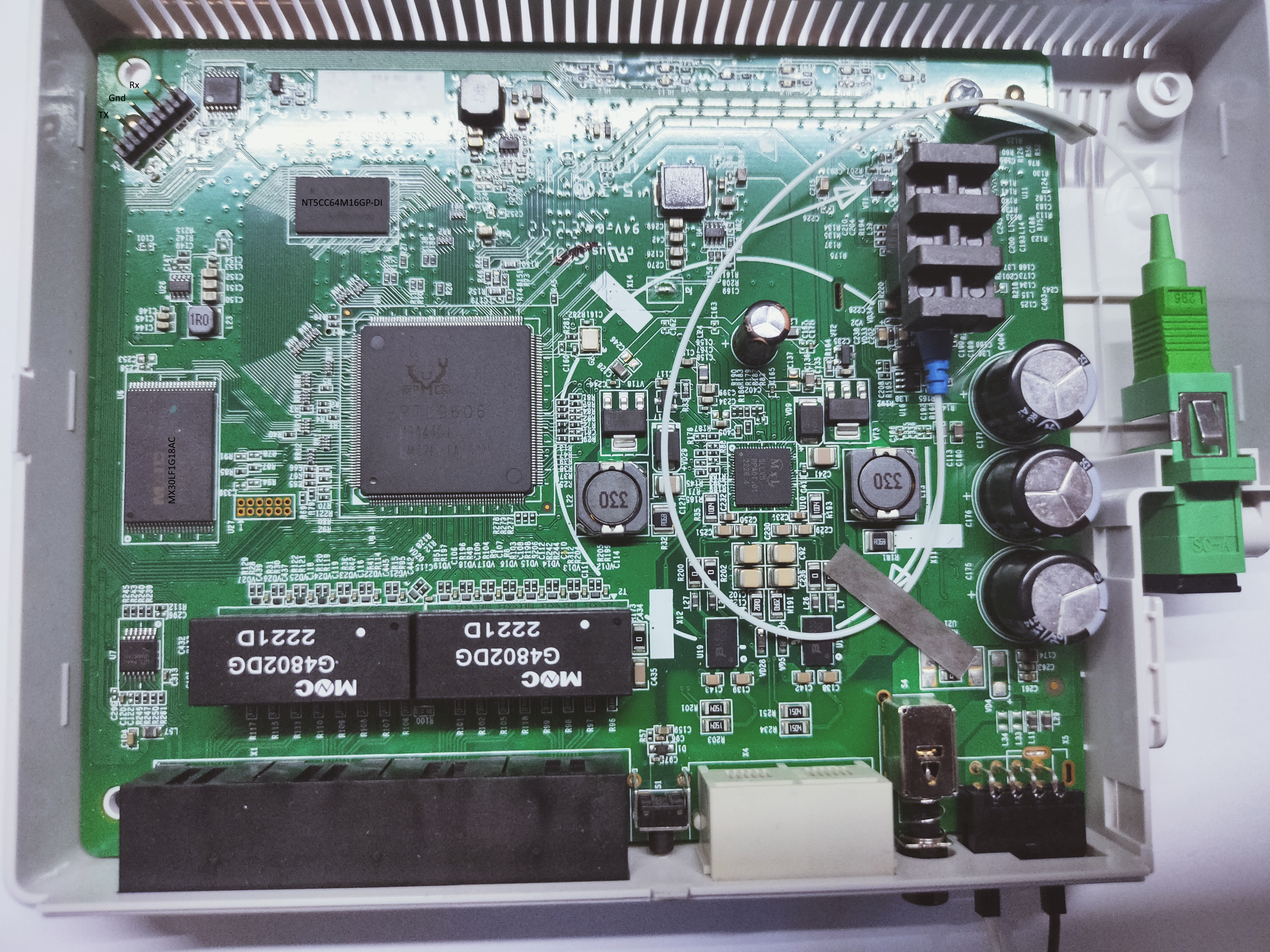

G-97X2 PCB

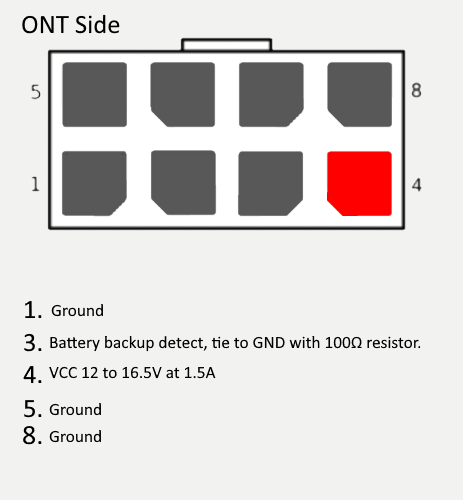

G-97X2 power connector

List of software versions

• R4.2.114.054 (Frontier FOG421)

Enable telnet (not persistent)

The login password can be generated using the following form:

GPON S/N in format GPONabc12345Please provide a valid GPON S/N.

UsernamePassword

#!/usr/bin/python3
import sys
from scapy.all import Ether, Raw, sendp, get_if_list

if len(sys.argv) != 2:
    print(f"{sys.argv[0]} GPONSN")
    sys.exit(1)

gpon_sn = sys.argv[1]
# Convert to GPONabc12345 format - this will also be username for telnet
gpon_sn = gpon_sn[0:4].upper() + gpon_sn[4:12].lower()
load = (
#        | enable bytes                            |
         b'\xee\xee\x00\x00\x00\x00\xff\xff\xff\xff' +
#        | GPON SN (reversed)       |
         bytes(gpon_sn, "utf8")[::-1] +
#        | Null bytes to XOR SN with itself      |
         bytes.fromhex("000000000000000000000000") +
#        | padding |
         b'a' * 32
)

pkt = Ether(dst="ff:ff:ff:ff:ff:ff", type=0xC199) / Raw(load=load)
for i in get_if_list():
    if i != "lo":
        sendp(pkt, iface=i, count=1, verbose=False)

print(f"Login at 192.168.100.1 with username:\n{gpon_sn}")

U-Boot access

# When U-Boot prints:
**************************************
*                                    *
*  KEY -- Enter console terminal     *
*                                    *
**************************************
waiting for your select ...

# Send unlock sequence from terminal
echo -en "\x1B\x1D\x0F\x0B" > /dev/ttyUSB0
# Or with Tera Term
send $1B $1D $0F $0B
