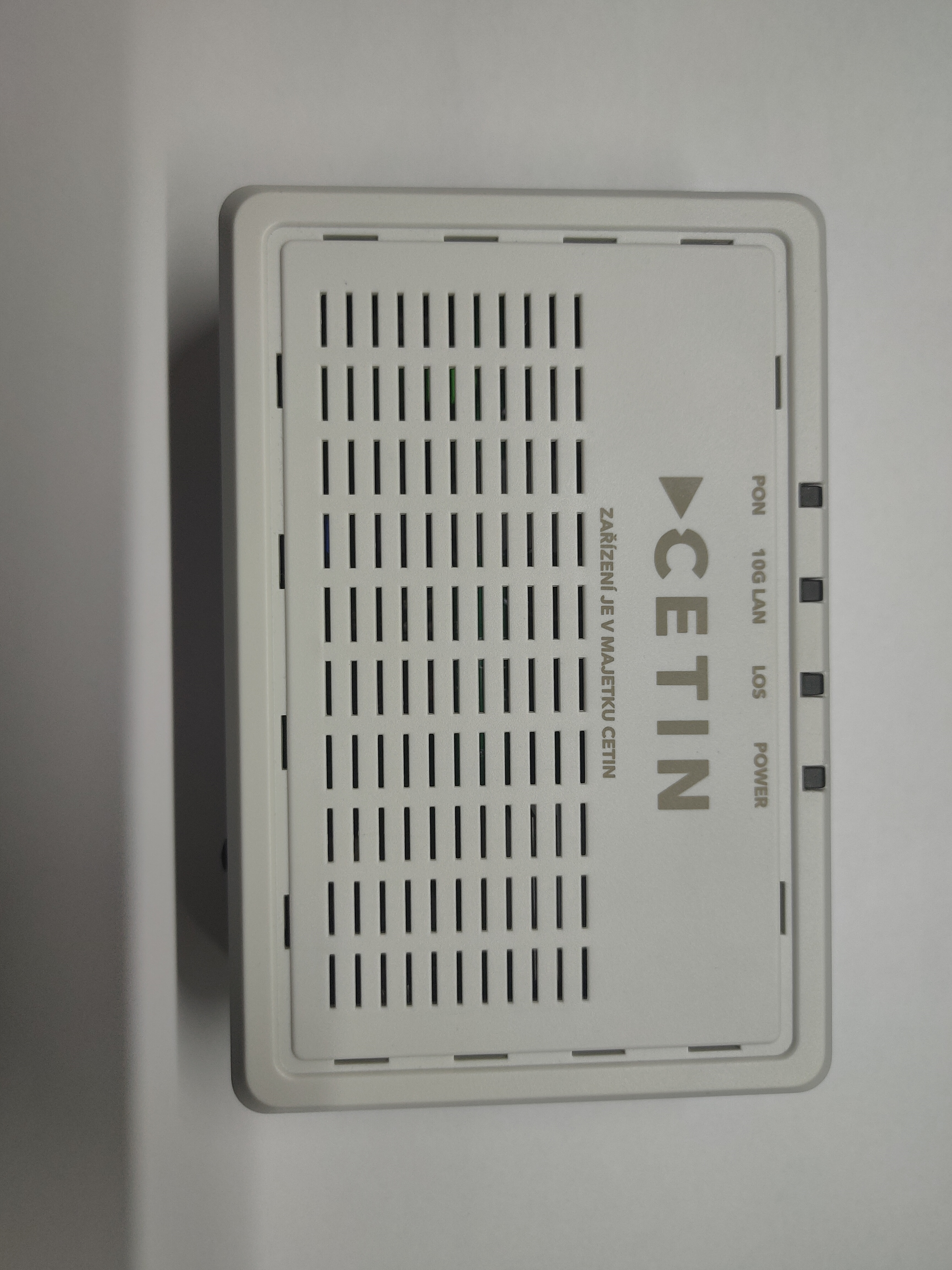

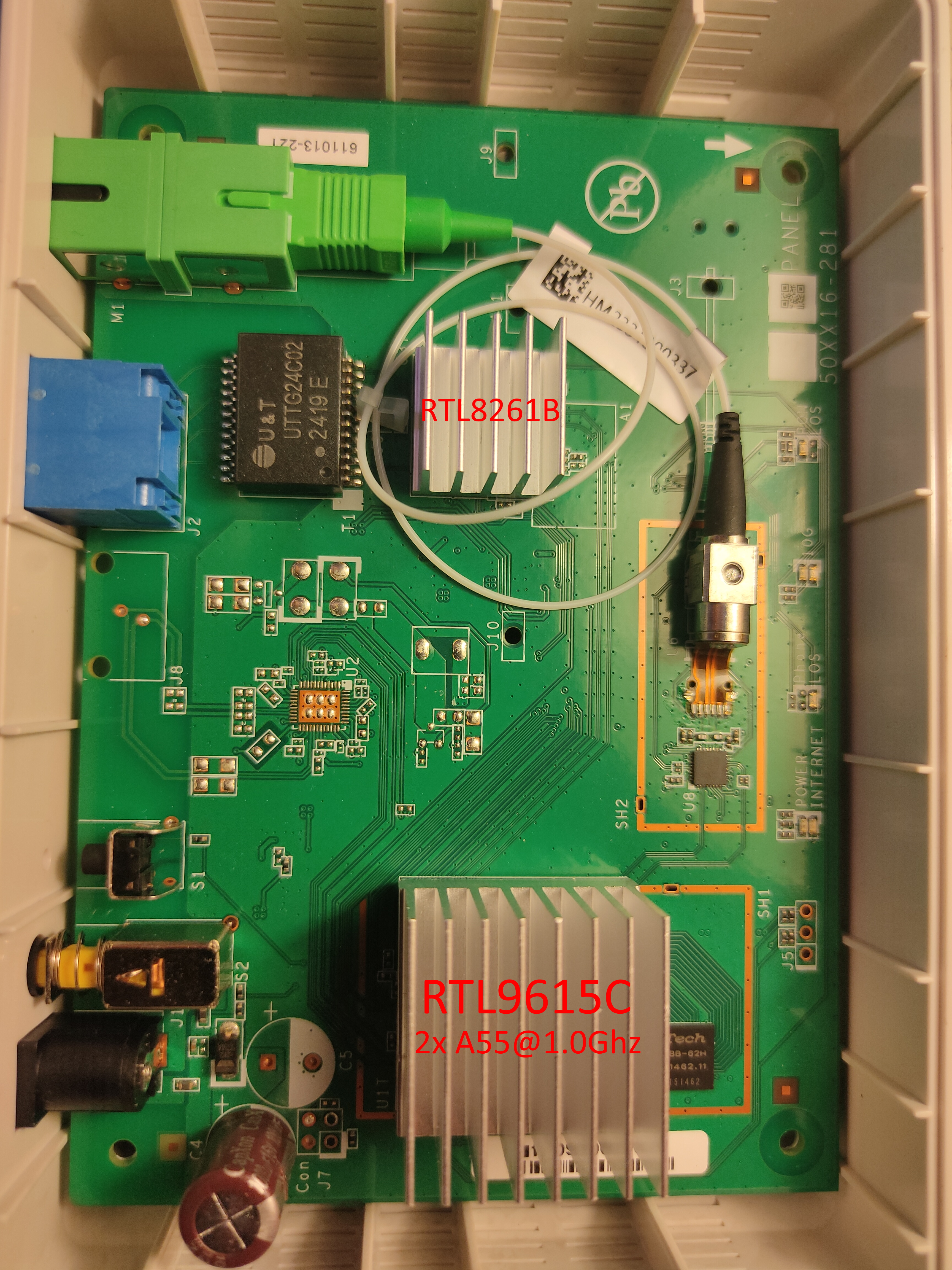

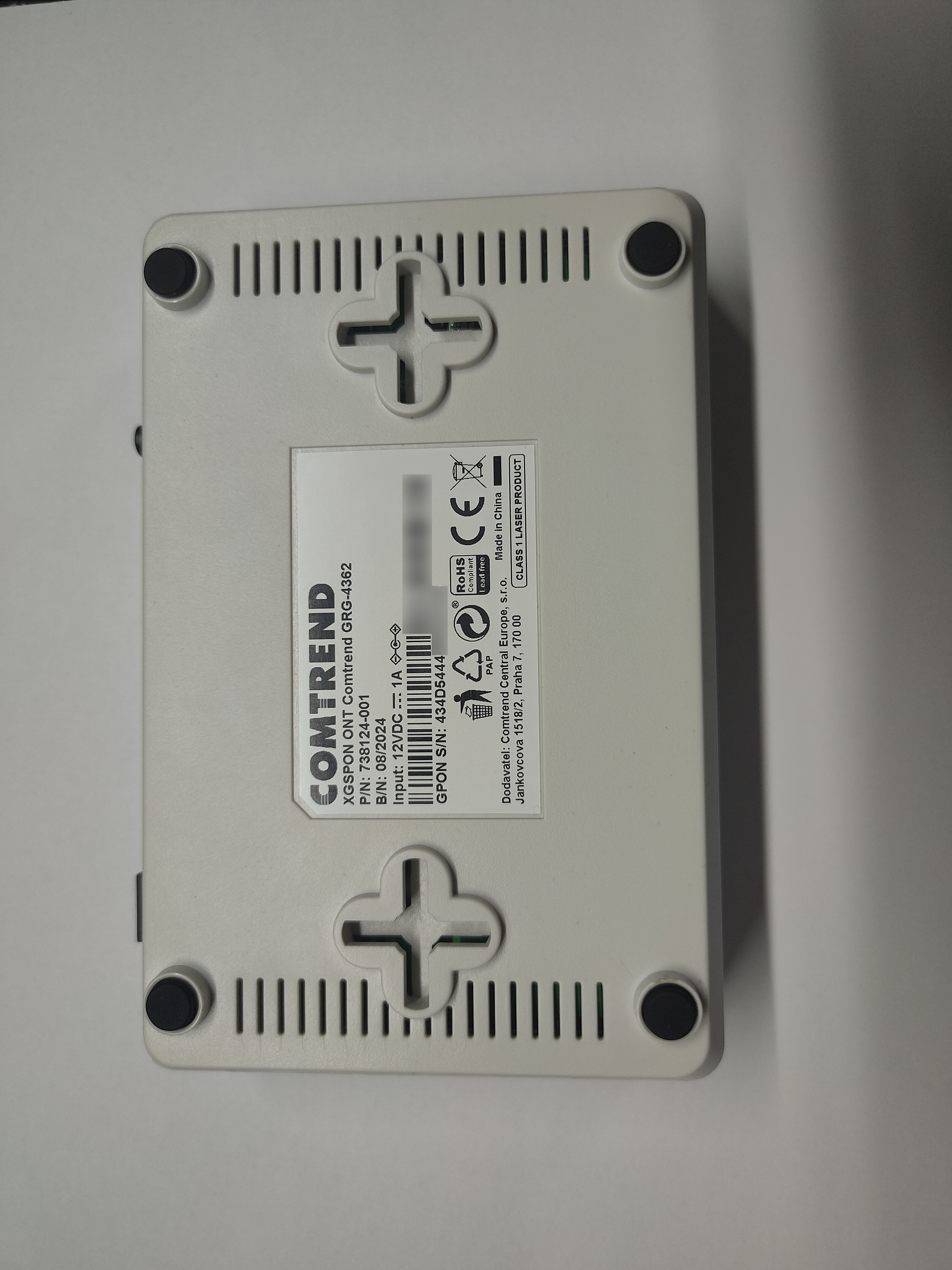

External/Internal Photo

Hardware Revisions

• V2.0

List of software versions

• CTN-1.0.8b16 (Cetin)
• CTN-1.0.8b2 (Cetin)

List of partitions

cat /proc/mtd

Only the first 4 partitions with erasesize 0x20000 should be manipulated using mtd devices, the fifth partition ubi_device contains the rest of the NAND and is to be manipulated using ubi volumes.

List of volumes (UBI)

ubinfo -a

To back up a volume, cat or dd the appropriate /dev/ubi0_X device to a file or pipe, to restore a volume, use the ubiupdatevol utility

This ONT supports dual boot.

Volumes ubi_k0, ubi_DTB0 and ubi_r0 respectively contain kernel and rootfs of the first image, while ubi_k1, ubi_DTB1 and ubi_r1 contain kernel and rootfs of the second one.

Useful files and binaries

Useful files

• /var/config/config.xml - Contains the user portion of the configuration
• /var/config/config_hs.xml - Contains the “hardware” configuration (which should not be changed)
• /var/config/rtkbosa_k.bin - Per-device laser driver calibration data
• /tmp/omcilog - OMCI messages logs (must be enabeled, see below)

Useful binaries

• flash - Used to manipulate the config files in a somewhat safe manner
• nv - Used to manipulate nvram storage, including persistent config entries via nv setenv/nv getenv
• omcicli - Used to interact with the running OMCI daemon
• omci_app - The OMCI daemon
• diag - Used to run low-level diagnostics commands on the onu
• cli - Comtrend cli.

GPON ONU status

Getting the operational status of the ONU

# diag rt_gpon get onu-state
ONU state: Operation State:Associated(O5.1)

Getting OLT vendor information

# omcicli mib get 131

Querying a particular OMCI ME

# omcicli mib get MIB_IDX

GPON/OMCI settings

Getting/Setting ONU GPON Serial Number

# flash get GPON_SN
GPON_SN=CMTD33221100
# flash set GPON_SN HWTC0A1B2C3D

Getting/Setting ONU GPON PLOAM password

# flash get GPON_PLOAM_PASSWD
GPON_PLOAM_PASSWD=3030303030
# flash set GPON_PLOAM_PASSWD AAAAAAAAAA

Getting/Setting ONU GPON LOID and LOID password

# flash get LOID
LOID=user
# flash set LOID user
# flash get LOID_PASSWD
LOID_PASSWD=user
# flash set LOID_PASSWD user

Getting/Setting OMCI software version (ME 7)

# flash get OMCI_SW_VER1
OMCI_SW_VER1=CTN-1.0.8b16
# flash set OMCI_SW_VER1 V3R017C10S100
# flash get OMCI_SW_VER2
OMCI_SW_VER2=CTN-1.0.8b2
# flash set OMCI_SW_VER2 V3R017C10S100

Getting/Setting OMCI hardware version (ME 256)

# flash get HW_HWVER
HW_HWVER=V2.0
# flash set HW_HWVER BF9.A

Getting/Setting OMCI vendor ID (ME 256)

# flash get PON_VENDOR_ID
PON_VENDOR_ID=CMTD
# flash set PON_VENDOR_ID HWTC

Getting/Setting OMCI equipment ID (ME 257)

# flash get GPON_ONU_MODEL
GPON_ONU_MODEL=GRG-4362
# flash set GPON_ONU_MODEL HG8240H

Getting/Setting OMCI OLT Mode and Fake OMCI

Configure how ONT handle OMCI from OLT:

# flash get OMCI_OLT_MODE
OMCI_OLT_MODE=1
# flash set OMCI_OLT_MODE 2

Some vendors/wholesale providers/ISPs have explicit LAN Port Number provisioning or proprietary OMCI that the cannot understand, this will make the reply OK to whatever the OLT sends it via OMCI.

0 = Disable, 1 = Enable, Default is 0

# flash get OMCI_FAKE_OK
OMCI_FAKE_OK=0
# flash set OMCI_FAKE_OK 1

Advanced settings

Transferring files to/from the router

This ONT has a capability of sharing files using FTP, TFTP, and Netcat.

Uploading any file to the FTP server will attempt to use it as a firmware update and fail.

Setting management MAC

# flash get ELAN_MAC_ADDR
ELAN_MAC_ADDR=1c6499a1b1c3
# flash set ELAN_MAC_ADDR 1c6499d4e5f6

Setting management IP

# flash get LAN_IP_ADDR
LAN_IP_ADDR=192.168.1.1
# flash set LAN_IP_ADDR 192.168.2.1

Rebooting the ONU

reboot

Getting the MTU of the L2 bridge

# diag switch get max-pkt-len port all
Port Speed
----------
0    9022
1    9022
2    9022
3    9022
4    9022
5    9022
6    12000
7    12000

Checking the currently active image info

# nv getenv sw_active
sw_active=0
# nv getenv sw_version0
sw_version0=CTN-1.0.8b16
# nv getenv sw_version1
sw_version1=CTN-1.0.8b2

Booting to a different image

# nv setenv sw_commit 0|1
# reboot

Disable multicast U-Boot update

Enabled by default in Realtek U-Boot, but 10G PHY does not work.

This speeds up boot time by 10 seconds not waiting for a timeout.

# nv setenv mupgrade_en 0

Unlocking shell access

Comtrend has written their own locked-down CLI shell, unlocking is possible with multiple methods.

Although the option to enter linux shell is displayed in help command, it silently fails until per-firmware password is provided.

This string is stored plaintext and hardcoded into /bin/cli and can be easily dumped.

# Example commands for firmware CTN-1.0.8b16
version --debug x4Wnhq2ReL
shell

Maintenance root shell

By editing U-Boot ENV you can boot this device straight into a root shell.

# Make sure to save your original variable content before re-writing.
TAURUS# setenv basicargs 'earlycon=serial,0xf43291b0 console=ttyS0,115200 init=/bin/bash'
TAURUS# saveenv

# Setup filesystems
mount -t proc proc /proc
mount -t sysfs sysfs /sys
mount -o size=64M -t tmpfs tmpfs /var/
mkdir /var/run
mkdir /var/tmp
mkdir /var/config
mount -t ubifs ubi0:ubi_Config /var/config/

# Read device login
flash get SUSER_NAME
flash get SUSER_PASSWORD

# Unblock ACL rules
flash set ACL_IP_TBL.0.any 0
flash set ACL_IP_TBL.0.telnet 1
flash set ACL_IP_TBL.0.web 1
flash set ACL_IP_TBL.0.https 1
flash set ACL_IP_TBL.0.ssh 1
flash set ACL_IP_TBL.0.icmp 1
flash set ACL_IP_TBL.1.ftp 0
flash set ACL_IP_TBL.1.tftp 0
flash set ACL_IP_TBL.1.web 0
flash set ACL_IP_TBL.1.https 0
flash set ACL_IP_TBL.1.ssh 0
flash set ACL_IP_TBL.1.icmp 0

# Enable full shell instead of CLI
# This script runs too early in boot process, delay was needed to get /var into right state
cat <<EOF > /var/config/run_customized_sdk.sh
#!/bin/sh
echo -en '\x1b[41;33m ===> run_customized_sdk.sh executed! <=== \x1b[0m\n'
sleep 60 && sed -i 's/\/bin\/cli/\/bin\/sh/g' /var/passwd && cat /var/passwd && echo -en '\x1b[42;30m ===> CLI Unlock success! <=== \x1b[0m\n' &
exit 0

EOF

Extracting and repacking the rootfs

# unsquashfs -d rootfs_extracted/ rootfs.img
# mksquashfs rootfs_extracted/ rootfs_new.img -comp xz -b 131072 -always-use-fragments -no-recovery -noappend

Firmware patch

Simple change with a hex editor can be done to enable full shell, inside /lib/libmib.so, change /bin/cli to /bin/ash

Then add /bin/ash to /etc/shells to enable normal shell.

Binary patch is required to prevent /bin/startup from reseting ME 256 and 257 parameters on reboot.

Flashing new firmware

• U-Boot

# Trigger Ymodem transfer from terminal client of your choice, wait about ~30 minutes
loady ${tftp_base} 115200
setenv current_vol ubi_r0
run check_vol
ubi write ${tftp_base} ubi_r0 ${filesize}
reset

• Linux

# Transfer with tool of your choice, wget/nc
# Swap ubi0_6 with appropriate device for inactive image
md5sum /tmp/rootfs.img
ubiupdatevol ubi0_6 /tmp/rootfs.img
