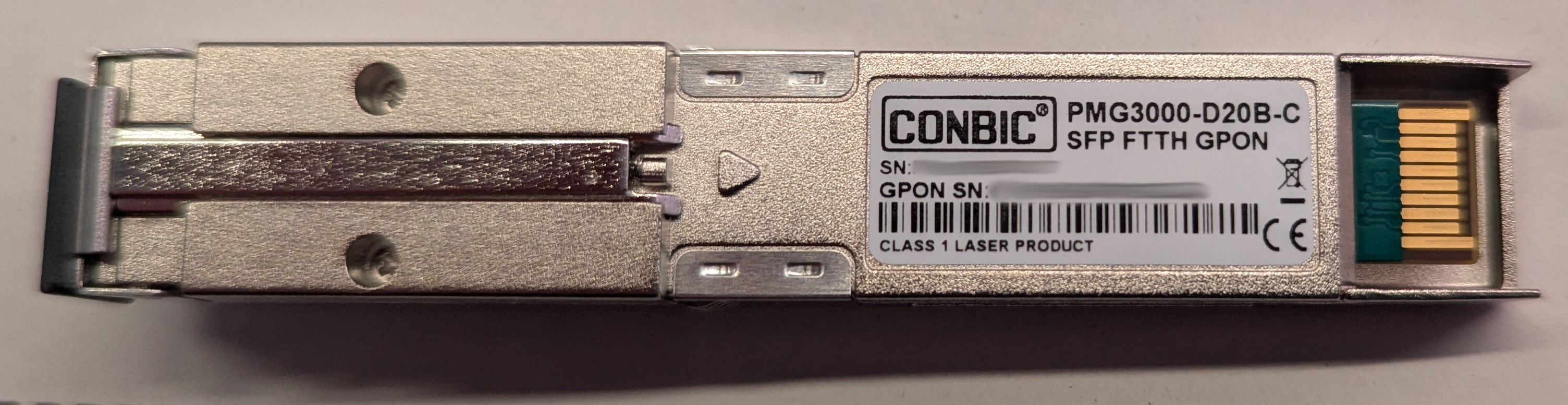

Hardware Specifications
| Vendor/Brand | CONBIC |
| Model | PMG3000-D20B-C |
| Chipset | Faraday/Galachip C1601 |
| Flash | |
| RAM | |
| CPU | |
| CPU Clock | |
| Bootloader | |
| System | |
| Linux shell | |
| SDK | |
| SFP interfaces | |
| Optics | SC/APC |
| IP address | 192.168.1.1 |
| Web Gui | ✅ username admin, password admin |
| SSH | ✅ username root, password root |
| Telnet | ❌ |
| Serial | |
| Serial baud | |
| Serial encoding | |
| Form Factor |
GPON settings
Setting ONU MAC Address
sh
gccli sys mac 00:1A:2B:3C:4D:5E
gccli sys saveSetting ONU GPON Serial Number
Note
The S/N is stored in the ASCII format.
sh
gccli sys gponsn ALCLf0f0f0f0
gccli sys saveThe GPON serial number may be set within the Web Gui, too.
