Prolink PGN6401V
Hardware Specifications
| Vendor/Brand | Prolink |
| Model | PGN6401V |
| Chipset | Realtek RTL9607Cv2 |
| Flash | SPI NAND 128MB |
| RAM | 256MB |
| CPU | Formosa MIPS interAptiv (multi) V2.0 |
| CPU Clock | 1150MHz |
| BogoMIPS | 766.77MHz |
| System | Linux 4.4.140 (GCC Realtek MSDK-4.8.5p1 Build 3068) |
| Ethernet ports | 4x1G |
| Optics | SC/UPC |
| IP address | 192.168.1.1 |
| Web Gui | ✅ user admin, password 1234 |
| Telnet | ✅ user admin, password 1234 |
| SSH | ✅ user admin, password 1234 |
| Serial baud | 115200 |
| Serial encoding | 8-N-1 |
| Form Factor | ONT |

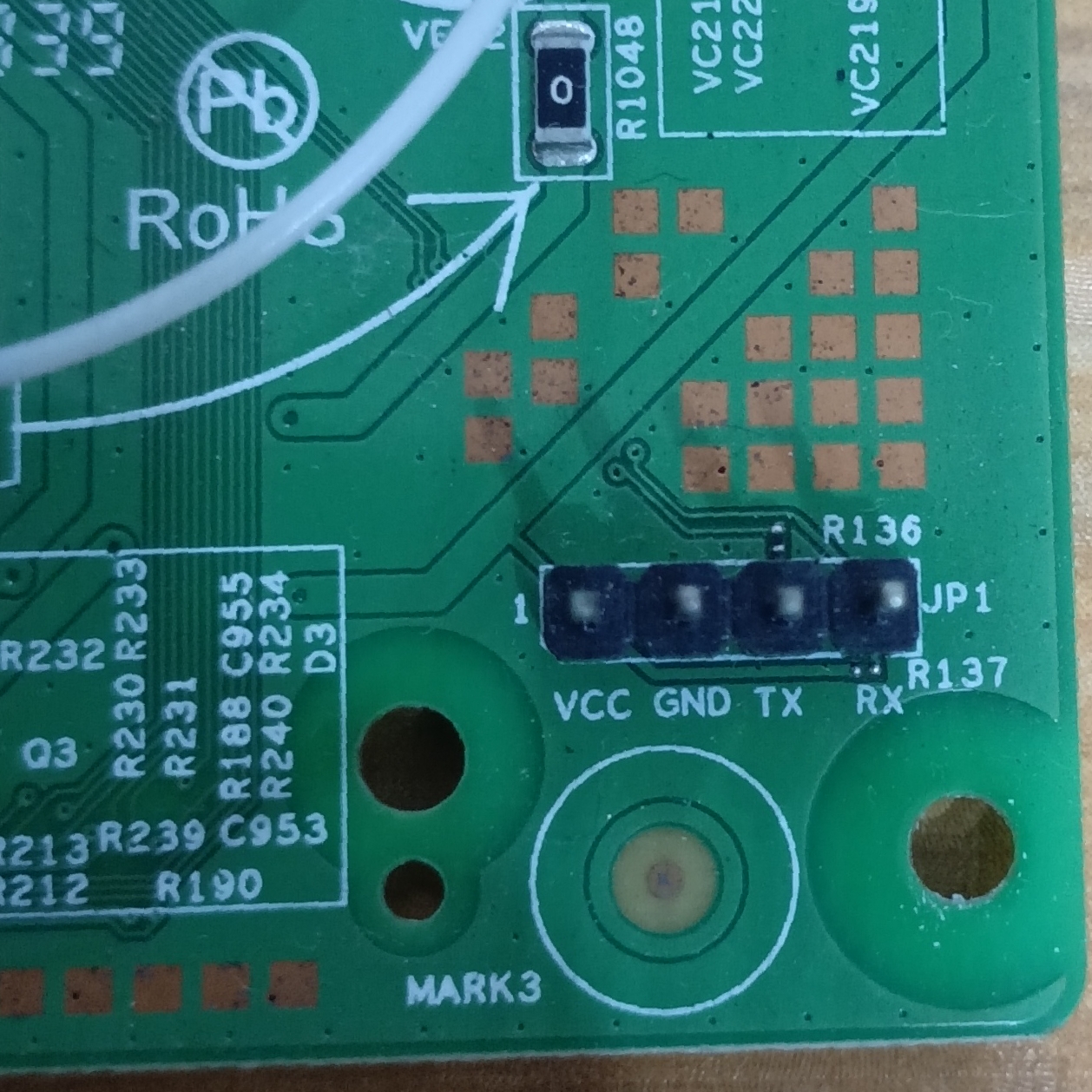

Serial
PGN6401V boot dump
Bismarck Preloader 3.7
II: LPLR:11261 PLR:ab04910e BD:22102017 TK:msdk-4.8.5-mips-EB-4.4-g2.23-m32ut-190619-cmcc
II: TLB initial done:
.ro section works!
.text and .ro sections work!
II: cg_cpu_pll_init done
II: cg_sram_pll_init done
II: CPU0 1150MHz, CPU1 600MHz, DRAM 666MHz, LX 200MHz, SRAM 500MHz, SPIF 100MHz
II: apro_otp_setup_fcn(fc)
II: DRAM calibration starts...
AK: ******* DRAM calibration version: v5.5 *******
AK: MEMPLL[31/63/95/127/159/191/223]=907f, c0000210, 64237c0, 320f0030, fff, a7f, 0
AK: TP=3, VD=1, CC=3, OT=2, EP=0, EB=0
AK: DRAM type = DDR3, Freq. = 666 MHz
ZQ: Clock: ODT/OCD=60/48, zq_zctrl_prog=0x c08033e, zq_zctrl_status=0x20a154
ZQ: Address: ODT/OCD=60/80, zq_zctrl_prog=0x1c080332, zq_zctrl_status=0x20a100
ZQ: DQ: ODT/OCD=60/60, zq_zctrl_prog=0x2c080338, zq_zctrl_status=0x20a122
ZQ: DQS: ODT/OCD=60/60, zq_zctrl_prog=0x3c080338, zq_zctrl_status=0x20a122
ZQ: INTERAL DDR3, ZQCL done, ZQCS Enable
AK: MRS: mr[0]=0x101a50, mr[1]=0x110004, mr[2]=0x120010, mr[3]=0x130000
AK: Start DDR_Calibration...
AK: Reduce DDR calibration
AK: Bit/max_r_s/max_r_l/max_w_s/max_w_l Bit/max_r_s/max_r_l/max_w_s/max_w_l
[ 0] 0 1f 0 1f [16] 0 1f 0 1f
[ 1] 0 1f 0 1f [17] 0 1f 0 1f
[ 2] 0 1f 0 1f [18] 0 1f 0 1f
[ 3] 0 1f 0 1f [19] 0 1f 0 1f
[ 4] 0 1f 0 1d [20] 0 1f 0 1f
[ 5] 0 1f 0 1f [21] 0 1f 0 1f
[ 6] 0 1f 0 1d [22] 0 1f 0 1f
[ 7] 0 1f 0 1d [23] 0 1f 0 1f
[ 8] 0 1f 0 1f [24] 0 1f 0 1f
[ 9] 0 1f 0 1f [25] 0 1f 0 1f
[10] 0 1f 0 1f [26] 0 1f 0 1f
[11] 0 1f 0 1f [27] 0 1f 0 1f
[12] 0 1f 0 1d [28] 0 1f 0 1f
[13] 0 1f 0 1f [29] 0 1f 0 1f
[14] 0 1f 0 1f [30] 0 1f 0 1f
[15] 0 1f 0 1f [31] 0 1f 0 1f
AK: Finish Calibration:
AK: DRAM size=0x10000000, tRFC[2]=0x165(nS), tREF=1729(nS)
AK: DCR=0x21321003, DTR[0:2]=0x99655828, 0x909061f, 0x6f19000
II: Change Stack from 0x9f002edc to 0x806fffe0
II: U-boot Magic Number is 0x27051956
II: Inflating U-Boot (0x80700040 -> 0x83c00000)... OK
II: Starting U-boot...
U-Boot 2020.01-svn2474 (Oct 20 2022 - 17:08:03 +0800)
Board: RTL9607Cv2, MIPS interAptiv:1150MHz RLX5281:600MHz LX:200MHz DDR3:666MHz SCLK:100MHz
ICACHE: 64KB (32-byte/4-way/512-set)
DCACHE: 32KB (32-byte/4-way/256-set)
DRAM: Physical 256 MiB, uboot useable size 256 MiB
NAND:
SPI NAND: 0xA1E4, Mode(111/111)
Create bbt: 459
NAND: 128 MiB
Loading Environment from NAND... OK
In: serial
Out: serial
Err: serial
II: Init Software Patch!
II: sw_test
II: Configurate otto_flash_layout
Saving Environment to NAND... Erasing NAND...
Erasing at 0xc0000 -- 100% complete.
Writing to NAND... OK
OK
NAND read: device 0 offset 0x0, size 0xc0000
786432 bytes read: OK
CRC32 for 81c80000 ... 81d3ffff ==> e378e16c
Net: LUNA GMAC
Warning: eth device name has a space!
Hit any key to stop autoboot: 1 0
swcore_init
multicast_start Using LUNA GMAC device
mcast upgrade timeout.
ubi0: attaching mtd5
ubi0: scanning is finished
ubi0: attached mtd5 (name "ubi_device", size 124 MiB)
ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes
ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096
ubi0: good PEBs: 995, bad PEBs: 0, corrupted PEBs: 0
ubi0: user volume: 5, internal volumes: 1, max. volumes count: 128
ubi0: max/mean erase counter: 4/1, WL threshold: 4096, image sequence number: 417166596
ubi0: available PEBs: 304, total reserved PEBs: 691, PEBs reserved for bad PEB handling: 20
No size specified -> Using max size (10539008)
Read 10539008 bytes from volume ubi_k0 to 83000000
## Booting kernel from Legacy Image at 83000000 ...
Image Name: Linux-4.4.140
Image Type: MIPS Linux Kernel Image (lzma compressed)
Data Size: 3360844 Bytes = 3.2 MiB
Load Address: 80010000
Entry Point: 8075d560
Verifying Checksum ... OK
Uncompressing Kernel Image
DEBUG_MEM_AUTO: DCR=0x21321003
DEBUG_MEM_AUTO: dcr=0x21321003, bankcnt=0x00000008, mem_size=0x10000000, banksize=0x02000000
DEBUG_MEM_AUTO: LUNA_PBO_DL_DRAM_SIZE_BARRIER=0x00401000, LUNA_PBO_UL_DRAM_SIZE_BARRIER=0x00101000
DEBUG_MEM_AUTO: LUNA_PBO_UL_DRAM_OFFSET=0x0f6ff000,LUNA_PBO_DL_DRAM_OFFSET=0x0dbff000
DEBUG_MEM_AUTO: PAGE_SIZE=0x00001000
DEBUG_MEM_AUTO: BSP_DSP_MEM_BASE=0xf900000, BSP_IPC_MEM_BASE=0xf800000
DEBUG_MEM_AUTO: [bsp_prom_memmap]add_memory_region(0, 230682624, BOOT_MEM_RAM)
DEBUG_MEM_AUTO: [bsp_prom_memmap]add_memory_region(0x00000000, 0x0dbff000, BOOT_MEM_RAM)
DEBUG_MEM_AUTO: [bsp_prom_memmap]add_memory_region(234881024, 24113152, BOOT_MEM_RAM)
DEBUG_MEM_AUTO: [bsp_prom_memmap]add_memory_region(0x0e000000, 0x016ff000, BOOT_MEM_RAM)
[ 0.000000] Linux version 4.4.140 (root@ylwx) (gcc version 4.8.5 20150209 (prerelease) (Realtek MSDK-4.8.5p1 Build 3068) ) #1 SMP Wed Mar 15 18:34:07 CST 2023
[ 0.000000] MIPS: machine is Realtek Semiconductor RTL8198D
[ 0.000000] [L2_DEBUG:(bsp_scache_config,54)] - L2_Bypass: Disable
[ 0.000000] [L2_DEBUG:(bsp_setup_scache,82)]SCache LineSize= 32 (B)
[ 0.000000] Disable SRAM PLL...done
[ 0.000000] bootconsole [early0] enabled
[ 0.000000] CPU0 revision is: 0001a120 (MIPS interAptiv (multi))
[ 0.000000] MIPS: machine is rtk,9607c
[ 0.000000] Determined physical RAM map:
[ 0.000000] memory: 0dbff000 @ 00000000 (usable)
[ 0.000000] memory: 016ff000 @ 0e000000 (usable)
[ 0.000000] Zone ranges:
[ 0.000000] Normal [mem 0x0000000000000000-0x000000000f6fefff]
[ 0.000000] Movable zone start for each node
[ 0.000000] Early memory node ranges
[ 0.000000] node 0: [mem 0x0000000000000000-0x000000000dbfefff]
[ 0.000000] node 0: [mem 0x000000000e000000-0x000000000f6fefff]
[ 0.000000] Initmem setup node 0 [mem 0x0000000000000000-0x000000000f6fefff]
[ 0.000000] VPE topology {2,2} total 4
[ 0.000000] Primary instruction cache 64kB, VIPT, 4-way, linesize 32 bytes.
[ 0.000000] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes
[ 0.000000] MIPS secondary cache 256kB, 8-way, linesize 32 bytes.
[ 0.000000] PERCPU: Embedded 11 pages/cpu @8300e000 s12512 r8192 d24352 u45056
[ 0.000000] Built 1 zonelists in Zone order, mobility grouping on. Total pages: 61712
[ 0.000000] Kernel command line: console=ttyS0,115200 ubi.mtd=4 root=31:7 rootfs=squashfs mtdparts=spinand:768K(boot),128K(env),128K(env2),128K(static_conf),127360K(ubi_device)
[ 0.000000] PID hash table entries: 1024 (order: 0, 4096 bytes)
[ 0.000000] Dentry cache hash table entries: 32768 (order: 5, 131072 bytes)
[ 0.000000] Inode-cache hash table entries: 16384 (order: 4, 65536 bytes)
[ 0.000000] Writing ErrCtl register=00000000
[ 0.000000] Readback ErrCtl register=00000000
[ 0.000000] Memory: 199224K/248824K available (7513K kernel code, 6762K rwdata, 2324K rodata, 240K init, 30032K bss, 49600K reserved, 0K cma-reserved)
[ 0.000000] Hierarchical RCU implementation.
[ 0.000000] Build-time adjustment of leaf fanout to 32.
[ 0.000000] NR_IRQS:256
[ 0.000000] CPU clock is 1150
[ 0.000000] [apro_clocks_init]clk_data.clk_num=2, ocp=1150000000, lx=200000000
[ 0.000000] clocksource: GIC: mask: 0xffffffffffffffff max_cycles: 0x10939a911d9, max_idle_ns: 440795210078 ns
[ 0.000000] sched_clock: 32 bits at 100 Hz, resolution 10000000ns, wraps every 21474836475000000ns
[ 0.010000] Console: colour dummy device 80x25
[ 0.010000] Calibrating delay loop... 761.03 BogoMIPS (lpj=3805184)
[ 0.050000] pid_max: default: 32768 minimum: 301
[ 0.050000] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes)
[ 0.060000] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes)
[ 0.060000] Primary instruction cache 64kB, VIPT, 4-way, linesize 32 bytes.
[ 0.070000] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes
[ 0.070000] MIPS secondary cache 256kB, 8-way, linesize 32 bytes.
[ 0.070000] CPU1 revision is: 0001a120 (MIPS interAptiv (multi))
[ 0.130000] Synchronize counters for CPU 1: done.
[ 0.130000] Primary instruction cache 64kB, VIPT, 4-way, linesize 32 bytes.
[ 0.130000] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes
[ 0.130000] MIPS secondary cache 256kB, 8-way, linesize 32 bytes.
[ 0.130000] CPU2 revision is: 0001a120 (MIPS interAptiv (multi))
[ 0.190000] Synchronize counters for CPU 2: done.
[ 0.190000] Primary instruction cache 64kB, VIPT, 4-way, linesize 32 bytes.
[ 0.190000] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes
[ 0.190000] MIPS secondary cache 256kB, 8-way, linesize 32 bytes.
[ 0.190000] CPU3 revision is: 0001a120 (MIPS interAptiv (multi))
[ 0.250000] Synchronize counters for CPU 3: done.
[ 0.250000] Brought up 4 CPUs
[ 0.250000] devtmpfs: initialized
[ 0.260000] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
[ 0.270000] futex hash table entries: 1024 (order: 3, 32768 bytes)
[ 0.270000] NET: Registered protocol family 16
[ 0.290000] pm-cps: CPC does not support clock gating
[ 0.300000] SCSI subsystem initialized
[ 0.300000] clocksource: Switched to clocksource GIC
[ 0.310000] NET: Registered protocol family 2
[ 0.310000] TCP established hash table entries: 2048 (order: 1, 8192 bytes)
[ 0.320000] TCP bind hash table entries: 2048 (order: 2, 16384 bytes)
[ 0.330000] TCP: Hash tables configured (established 2048 bind 2048)
[ 0.330000] UDP hash table entries: 256 (order: 1, 8192 bytes)
[ 0.340000] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes)
[ 0.350000] NET: Registered protocol family 1
[ 0.350000] [Kthread : luan_watchdog ] init complete!
[ 0.360000] ************ Watchdog Setting ****************
[ 0.370000] WDT_E=0, (1-enable, 0-disable)
[ 0.370000] WDT_CLK_SC=3
[ 0.370000] PH1_TO=31
[ 0.370000] PH2_TO=0
[ 0.380000] WDT_RESET_MODE=0
[ 0.380000] **********************************************
[ 0.390000] ==== Luna Watchdog Regs =====
[ 0.390000] BSP_WDTCNTRR(0xb8003260): 0x00000000
[ 0.400000] BSP_WDTINTRR(0xb8003264): 0x00000000
[ 0.400000] BSP_WDTCTRLR(0xb8003268): 0xe7c00000
[ 0.410000] =================================
[ 0.410000] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[ 0.420000] ntfs: driver 2.1.32 [Flags: R/W].
[ 0.420000] fuse init (API version 7.23)
[ 0.430000] io scheduler noop registered
[ 0.440000] io scheduler deadline registered
[ 0.440000] io scheduler cfq registered (default)
[ 0.450000] rtk-mips-ia-gpio 1b000038.gpio-controller: resource - [mem 0x1b000038-0x1b000043 flags 0x200] mapped at 0xbb000038
[ 0.460000] rtk-mips-ia-gpio 1b000038.gpio-controller: resource - [mem 0x18003308-0x1800335b flags 0x200] mapped at 0xb8003308
[ 0.470000] rtk-mips-ia-gpio 1b000038.gpio-controller: Setting up IRQs for GPIO bank 0
[ 0.480000] rtk-mips-ia-gpio 1b000038.gpio-controller: Setting up IRQs for GPIO bank 1
[ 0.490000] rtk-mips-ia-gpio 1b000038.gpio-controller: Setting up IRQs for GPIO bank 2
[ 0.500000] Realtek GPIO Driver for Flash Reload Default
[ 0.560000] Serial: 8250/16550 driver, 1 ports, IRQ sharing disabled
[ 0.570000] console [ttyS0] disabled
[ 0.570000] 18002000.serial: ttyS0 at MMIO 0x18002000 (irq = 46, base_baud = 12327200) is a 16550A
[ 0.580000] console [ttyS0] enabled
[ 0.580000] console [ttyS0] enabled
[ 0.590000] bootconsole [early0] disabled
[ 0.590000] bootconsole [early0] disabled
[ 0.600000] of_serial: probe of 18002100.serial failed with error -28
[ 0.610000] of_serial: probe of 18002200.serial failed with error -28
[ 0.610000] aipcBoardChipId=0x96070001 aipcBoardChipRev=0x00000003 aipcBoardChipSubType=0x00000018
[ 0.620000] RTL9607C_CHIP_ID 0x96070001
[ 0.630000] CHIP_REV_ID_C 0x00000003
[ 0.730000] aipc: register chrdev(254,0)
[ 0.740000] aipc: create device successed
[ 0.740000] aipc: start aipc irq init
[ 0.740000] aipc: Request IRQ for IPC OK
[ 0.750000] aipc: create dsp console device successed
[ 0.750000] aipc: init done
[ 0.760000] Realtek Luna SPI NAND Flash Driver Rev:00:00:00 (ChaoYuan_Yang)
[ 0.770000] [SPINAND] Blocks number under 6 are protected
[ 0.770000] [SPINAND] Allow max 4 bits flip in blank page!
[ 0.790000] Use RTK bb func
[ 0.790000] Use RTK bb scan
[ 0.800000] nand: device found, Manufacturer ID: 0xa1, Chip ID: 0xe4
[ 0.810000] nand: Unknown
[ 0.810000] nand: 128 MiB, SLC, erase size: 128 KiB, page size: 2048, OOB size: 64
[ 0.880000] detect block 459(459) is bad
[ 0.880000] good block number 1023
[ 0.880000] 5 cmdlinepart partitions found on MTD device spinand
[ 0.890000] RTK: using dynamic nand partition
[ 0.900000] Creating 5 MTD partitions on "spinand":
[ 0.900000] 0x000000000000-0x0000000c0000 : "boot"
[ 0.910000] 0x0000000c0000-0x0000000e0000 : "env"
[ 0.910000] 0x0000000e0000-0x000000100000 : "env2"
[ 0.920000] 0x000000100000-0x000000120000 : "static_conf"
[ 0.930000] 0x000000120000-0x000007d80000 : "ubi_device"
[ 0.930000] Size of the first partition is 6 blocks.
[ 0.940000] Realtek SPINAND Flash Driver is successfully installing.
[ 0.950000] Init RTK Driver Module....rtk_switch_irq_init 355 irq=38 name=apl_sw
[ 1.040000] phy recovery init complete! version 1.1
[ 1.050000] OK
[ 1.050000] Init RTK Core Dev Module....OK
[ 1.050000]
[ 1.050000] rtdrv_init !!!! for netfilter
[ 1.060000] [rtdrv_init]: rtdrv_ext_igmpHook_sockopts init.
[ 1.070000] [rtdrv_init]: rtdrv_ext_igmpHook_sockopts success.
[ 1.070000] pkt_redirect_init complete
[ 1.080000] interrupt broadcaster init ok!
[ 1.080000] drivers/net/ethernet/realtek/rtl86900/sdk/src/module/dspbo_queue/dspbo_queue_main.c:284 pDsPboQueueTask complete!
[ 1.090000] rtk_gmac_9607c_associative_init 10027
[ 1.100000] GMAC0 Tx Ring Size:
[ 1.100000] [#0]:1024 [#1]:64 [#2]:64 [#3]:64 [#4]:64
GMAC0 Rx Ring Size:
[ 1.110000] [#0]:1024 [#1]:256 [#2]:256 [#3]:64 [#4]:64 [#5]:64
[ 1.120000] eth0: RTL-8686 at 0xb8012000, 00:00:00:01:00:02, IRQ 59
[ 1.120000] eth0.2: RTL-8686 at 0xb8012000, 00:00:00:01:00:02, IRQ 59
[ 1.130000] eth0.3: RTL-8686 at 0xb8012000, 00:00:00:01:00:02, IRQ 59
[ 1.140000] eth0.4: RTL-8686 at 0xb8012000, 00:00:00:01:00:02, IRQ 59
[ 1.150000] eth0.5: RTL-8686 at 0xb8012000, 00:00:00:01:00:02, IRQ 59
[ 1.150000] eth0.6: RTL-8686 at 0xb8012000, 00:00:00:01:00:02, IRQ 59
[ 1.160000] eth0.7: RTL-8686 at 0xb8012000, 00:00:00:01:00:02, IRQ 59
[ 1.170000] eth0.8: RTL-8686 at 0xb8012000, 00:00:00:01:00:02, IRQ 59
[ 1.180000] eth0.9: RTL-8686 at 0xb8012000, 00:00:00:01:00:02, IRQ 59
[ 1.180000] nas0: RTL-8686 at 0xb8012000, 00:00:00:01:00:02, IRQ 59
[ 1.190000] >>>> Set nas0 carrier off !!!
[ 1.190000] can't find dev eth0
[ 1.200000] eth0.2 -> 0x1
[ 1.200000] eth0.3 -> 0x2
[ 1.200000] eth0.4 -> 0x4
[ 1.210000] eth0.5 -> 0x8
[ 1.210000] eth0.6 -> 0x10
[ 1.210000] eth0.7 -> 0x100
[ 1.210000] eth0.8 -> 0x40
[ 1.220000] eth0.9 -> 0x80
[ 1.220000] nas0 -> 0x20
[ 1.300000] Disable gmac[0] padding
[ 1.300000] GMAC1 Tx Ring Size:
[ 1.310000] [#0]:1024 [#1]:64 [#2]:64 [#3]:64 [#4]:64
GMAC1 Rx Ring Size:
[ 1.310000] [#0]:1024 [#1]:256 [#2]:256 [#3]:64 [#4]:64 [#5]:64
rtk_gmac_netdev_init 10657: netdev name=eth0 exist
[ 1.340000] Disable gmac[1] padding
[ 1.340000] first entry: 0, portmask 2047, rx: 80766de4
[ 1.350000] re8670_set_mtu-967: dev=eth0 new_mtu=1500
[ 1.360000] re8670_set_mtu-967: dev=eth0.2 new_mtu=1500
[ 1.360000] re8670_set_mtu-967: dev=eth0.3 new_mtu=1500
[ 1.370000] re8670_set_mtu-967: dev=eth0.4 new_mtu=1500
[ 1.370000] re8670_set_mtu-967: dev=eth0.5 new_mtu=1500
[ 1.380000] re8670_set_mtu-967: dev=eth0.6 new_mtu=1500
[ 1.380000] re8670_set_mtu-967: dev=eth0.7 new_mtu=1500
[ 1.390000] re8670_set_mtu-967: dev=eth0.8 new_mtu=1500
[ 1.400000] re8670_set_mtu-967: dev=eth0.9 new_mtu=1500
[ 1.400000] re8670_set_mtu-967: dev=nas0 new_mtu=1500
[ 1.410000] [FCEXT] rtk_fc_extmodule_init
[ 1.430000] [FCMGR] module init @rtk_fc_mgr_init(461)
[ 1.440000] fc_db.controlFuc.special_fast_forward_mode = 0
[ 1.450000] fc_db.controlFuc.hwnat_customize = 0
[ 1.450000] fc_db.controlFuc.hwnat_customize_nptv6_sram_acc_v2 = 0
[ 2.110000] RTK FleetConntrack Driver - core module init
[ 2.120000] - build ver. 0.2.5.702 02/08/22-13:30:15
[ 2.130000] - mem usage 7146 KB (malloc:2189912 fc_db:5127848 pro_db:532)
[ 2.130000] priority: 0, portmask 2047, rx: 80766de4
[ 2.140000] insert here, priority: 1, portmask 2047, rx: 8076b774
[ 2.150000] RTK FleetConntrack Driver - manager module init
[ 2.150000] - mem usage 462 KB (db:438432 nicrx_ipi:35584)
[ 2.160000] smuxdev: loaded
[ 2.160000] PPP generic driver version 2.4.2
[ 2.170000] NET: Registered protocol family 24
[ 2.170000] PPTP driver version 0.8.5
[ 2.180000] MPPE/MPPC encryption/compression module registered
[ 2.180000] __rtl8192cd_init(18872): SIZE=2 b8b30000/ba000000/72
[ 2.190000] __rtl8192cd_init(18879): SIZE=2 b8b30000/ba000000/72
[ 2.190000] Realtek WLAN driver driver version 4.0.8.2(2021-05-11)
[ 2.200000] DFS function - version 2.0.14
[ 2.210000] Adaptivity function - version 9.7.08
[ 2.220000] CFG0
[ 2.220000] PCIE0 reset pin is set to GPIO 40
[ 2.230000] ===> PCIE reset try 0
[ 2.440000] 9607c pcie port 0
[ 2.450000] IC-C v006 (2022.09.30)
[ 2.620000] Port0 Link@2.5GHz
[ 2.620000] rtl8192cd_init_one(15908): vendor_deivce_id(f81210ec) sub(f81210ec)
[ 2.630000]
[ 2.630000] found 8812F !!!
[ 2.630000] IS_RTL8812F_SERIES value8 = 14
[ 2.640000] Hardware type = RTL8812FE
[ 2.640000] MACHAL_version_init
[ 2.650000] 55772M
[ 2.650000] HALMAC_MAJOR_VER = 1
[ 2.650000] HALMAC_PROTOTYPE_VER = 6
[ 2.650000] HALMAC_MINOR_VER = 6
[ 2.650000] HALMAC_PATCH_VER = 23
[ 2.660000] [TRACE]halmac_init_adapter <===
[ 2.670000] halmac_init_adapter Succss
[ 2.670000] [MACFM_software_init 256]wifi hal support Mac function = 0x11ff
[ 2.690000]
[ 2.690000]
[ 2.690000] #######################################################
[ 2.700000] SKB_BUF_SIZE=4832 MAX_SKB_NUM=768
[ 2.710000] #######################################################
[ 2.710000]
[ 2.730000] [MACFM_software_init 256]wifi hal support Mac function = 0x11ff
[ 2.740000] [MACFM_software_init 256]wifi hal support Mac function = 0x11ff
[ 2.750000] [MACFM_software_init 256]wifi hal support Mac function = 0x11ff
[ 2.760000] [MACFM_software_init 256]wifi hal support Mac function = 0x11ff
[ 2.760000] [MACFM_software_init 256]wifi hal support Mac function = 0x11ff
[ 2.780000] CFG1
[ 2.780000] PCIE1 reset pin is set to GPIO 39
[ 2.790000] ===> PCIE reset try 0
[ 3.000000] 9607c pcie port 1
[ 3.010000] IC-C v006 (2022.09.30)
[ 3.160000] Port1 Link@2.5GHz
[ 3.160000] rtl8192cd_init_one(15908): vendor_deivce_id(818c10ec) sub(818c10ec)
[ 3.170000] IS_RTL8192F_SERIES value8 = d
[ 3.180000] MACHAL_version_init
[ 3.180000] [MACFM_software_init 256]wifi hal support Mac function = 0x84960
[ 3.190000]
[ 3.190000]
[ 3.190000] #######################################################
[ 3.200000] SKB_BUF_SIZE=2832 MAX_SKB_NUM=384
[ 3.210000] #######################################################
[ 3.210000]
[ 3.230000] [MACFM_software_init 256]wifi hal support Mac function = 0x84960
[ 3.240000] [MACFM_software_init 256]wifi hal support Mac function = 0x84960
[ 3.250000] [MACFM_software_init 256]wifi hal support Mac function = 0x84960
[ 3.250000] [MACFM_software_init 256]wifi hal support Mac function = 0x84960
[ 3.260000] [MACFM_software_init 256]wifi hal support Mac function = 0x84960
[ 3.270000] hidraw: raw HID events driver (C) Jiri Kosina
[ 3.280000] /proc/slicReadID created
[ 3.280000] u32 classifier
[ 3.290000] nf_conntrack version 0.5.0 (3112 buckets, 12448 max)
[ 3.290000] gre: GRE over IPv4 demultiplexor driver
[ 3.300000] ip_tables: (C) 2000-2006 Netfilter Core Team
[ 3.310000] NET: Registered protocol family 10
[ 3.310000] ip6_tables: (C) 2000-2006 Netfilter Core Team
[ 3.320000] sit: IPv6 over IPv4 tunneling driver
[ 3.330000] NET: Registered protocol family 17
[ 3.330000] bridge: automatic filtering via arp/ip/ip6tables has been deprecated. Update your scripts to load br_netfilter if you need this.
[ 3.350000] Bridge firewalling registered
[ 3.350000] Ebtables v2.0 registered
[ 3.350000] l2tp_core: L2TP core driver, V2.0
[ 3.360000] l2tp_ppp: PPPoL2TP kernel driver, V2.0
[ 3.360000] 8021q: 802.1Q VLAN Support v1.8
[ 3.370000] Register system dying gasp...Done
[ 3.380000] ubi0: attaching mtd4
[ 3.960000] ubi0: scanning is finished
[ 3.970000] ubi0: attached mtd4 (name "ubi_device", size 124 MiB)
[ 3.980000] ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes
[ 3.980000] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
[ 3.990000] ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096
[ 4.000000] ubi0: good PEBs: 995, bad PEBs: 0, corrupted PEBs: 0
[ 4.010000] ubi0: user volume: 5, internal volumes: 1, max. volumes count: 128
[ 4.010000] ubi0: max/mean erase counter: 4/1, WL threshold: 4096, image sequence number: 417166596
[ 4.020000] ubi0: available PEBs: 304, total reserved PEBs: 691, PEBs reserved for bad PEB handling: 20
[ 4.030000] ubi0: background thread "ubi_bgt0d" started, PID 75
[ 4.040000] input: gpio-keys as /devices/platform/gpio-keys/input/input0
[ 4.050000] VoIP control bind 2 (2) instances successfully.
[ 4.060000] index dsp_cpuid dsp_cch host_cch
[ 4.060000] ----- --------- ------- --------
[ 4.070000] 0 0 0 0
[ 4.070000] 1 0 1 1
[ 4.080000] voip spin lock init done
[ 4.080000] VoIP RX netfilter hook init done!
[ 4.080000] VoIP RX netfilter hook for IPv6 init done!
[ 4.090000] =============RTK VOIP SUITE=============
[ 4.100000] SDK VoIP Version: VoIP-1.6-DSP-R5523-Luna-R24-Integrate_RTL_CA
[ 4.100000] Board CFG Model :
[ 4.110000] INITIAL VOIP MANAGER PROGRAM
[ 4.110000] VFS: Mounted root (squashfs filesystem) readonly on device 31:7.
[ 4.120000] devtmpfs: mounted
[ 4.130000] Freeing unused kernel memory: 240K
Bad inittab entry at line 33
starting pid 83, tty '': '/etc/init.d/rcS'
=== Start to run rc0 / rc63 ===
----- do_rc [/etc/init.d/rc2] -----
WARN: conflicting configurations in /etc/fstab and /etc/default/rcS
regarding the writability of rootfs. Please fix one of them.
[ 5.020000] UBIFS (ubi0:0): background thread "ubifs_bgt0_0" started, PID 110
[ 5.060000] UBIFS (ubi0:0): recovery needed
[ 5.180000] UBIFS (ubi0:0): recovery completed
[ 5.190000] UBIFS (ubi0:0): UBIFS: mounted UBI device 0, volume 0, name "ubi_Config"
[ 5.200000] UBIFS (ubi0:0): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes
[ 5.210000] UBIFS (ubi0:0): FS size: 9777152 bytes (9 MiB, 77 LEBs), journal size 1015809 bytes (0 MiB, 6 LEBs)
[ 5.220000] UBIFS (ubi0:0): reserved for root: 461798 bytes (450 KiB)
[ 5.220000] UBIFS (ubi0:0): media format: w4/r0 (latest is w4/r0), UUID D3E0B48B-1528-401A-893D-F7E9F330FB5A, small LPT model
----- do_rc [/etc/init.d/rc3] -----
[ 5.350000] tv_sec:5 tv_usec:350076
[ 5.350000] luna_watchdog: luna_watchdog/3 not respond!
Open /dev/voip/mgr fail, ret = -1, errno = 2
WARNING: table_setting: Invalid table entry name: DEFAULT_WLAN_SSID
WARNING: table_setting: Invalid table entry name: DEFAULT_WLAN_WPAKEY
set_msgqueue_max_size:414> set msgqidds.msg_qbytes=36000 OK
set_msgqueue_max_size:414> set msgqidds.msg_qbytes=36000 OK
[ 6.120000] aipc: (0419)prepare_BIR
aipc: write image successful. size=2881648 rc=2881648 wc=2881648[ 6.480000] aipc: (0528)aipc_dev_ioctl boot dsp
da=0xb02c0400 remain=0
[ 6.490000] aipc: (0530)aipc_dev_ioctl boot dsp done
Wait DSP 0/1 booting ......
.[ 7.010000] aipc: (0599)aipc_dsp_disable_mem
Wait DSP ok. wait_cnt=1
DSP 0 Software Ready!
diable printk= 0 parameter is 1
== Now update province sw version... =======================================
set RTK_DEVINFO_SWVER=V8.1.1
Usage: flash cmd
cmd:
info show flash offset information.
loop enter a infinite loop.
get <MIB-NAME> [...] get the specific mib from flash memory.
Example:
get NTP_ENABLED get the specific mib table entry from flash memory.
get ATM_VC_TBL get all the specific mib chain records from flash memory.
get ATM_VC_TBL.NUM get the specific mib chain record size from flash memory.
get ATM_VC_TBL.0.ifIndex get the specific member of the mib chain record from flash memory.
set <MIB-NAME MIB-VALUE> [...]set the specific mib into flash memory.
Example:
set NTP_ENABLED 0 set the specific mib table entry into flash memory.
set ATM_VC_TBL.1.vpi 8 set the specific member of the mib chain recrod into flash memory.
add <MIB-CHAIN-NAME> [...] add mib chain record(s) into flash memory.
Example:
add ATM_VC_TBL add a mib chain record into flash memory.
add ATM_VC_TBL.2 add mib chain record(s) into flash memory.
del <MIB-CHAIN-NAME> [...] delete mib chain record(s) into flash memory.
Example:
del ATM_VC_TBL delete the last mib chain record into flash memory.
del ATM_VC_TBL.2 delete the specific mib chain record into flash memory.
all [cs|hs] dump all flash parameters.
list [cs|hs|all] [sorted] list mib parameters(sorted).
default <cs/hs> write program default value to flash.
clear clear flash setting.
voip voip setings.
r <OFFSET> read flash from <OFFSET>.
w <OFFSET> <VALUE> write flash to <OFFSET>.
erase <OFFSET> erase flash from <OFFSET>.
Usage: mib cmd
cmd:
get <MIB-NAME> [...] get the specific mib from configd.
Example:
get NTP_ENABLED get the specific mib table entry from configd.
get ATM_VC_TBL get all the specific mib chain records from configd.
get ATM_VC_TBL.NUM get the specific mib chain record size from configd.
get ATM_VC_TBL.0.ifIndex get the specific member of the mib chain record from configd.
set <MIB-NAME MIB-VALUE> [...]set the specific mib into configd.
Example:
set NTP_ENABLED 0 set the specific mib table entry into configd.
set ATM_VC_TBL.1.vpi 8 set the specific member of the mib chain recrod into configd.
add <MIB-CHAIN-NAME> [...] add mib chain record(s) into configd.
Example:
add ATM_VC_TBL add a mib chain record into configd.
add ATM_VC_TBL.2 add mib chain record(s) into configd.
del <MIB-CHAIN-NAME> [...] delete mib chain record(s) into configd.
Example:
del ATM_VC_TBL delete the last mib chain record into configd.
del ATM_VC_TBL.2 delete the specific mib chain record into configd.
all [cs|hs|rs] dump all mib from configd.
reset [flag] Reset to default with flag.
commit [cs|hs] commit all mib from configd into flash.
voipshmupdate voip shm update.
nv setenv sw_version0 V8.1.1
Unix Socket Connect to server failed!!!: No such file or directory
Unable to open unix socket file /var/run/systemd.usock!!!
RTL Chip............
Loading modules: ca-ne ca-plat-kernel ca-sdk-cb libscfg
[ 8.490000] omcidrv: loading out-of-tree module taints kernel.
[ 8.550000] register_gpon_evt_state: register gpon event state Successfully !
[ 8.560000] omci platform db suc!
[ 8.560000] ponPort:5 cpuPort:9 rgmiiPort:8 uniPortMask:0x20f etherPortMask:0xf
[ 8.570000] omci platform attached!
Loading TR-142 Module...
[ 8.610000] Realtek TR-142 Module initialized.
[ 8.720000] [rtk_tr142_nl_recv_msg] rtk_tr142_nl_pid = 268
[ 8.730000] Set mapping_outermost_vlan_by_mac_from_lut to 0 OK.
TR142_FEATURE_API_INIT_LIB ret = 0
[rtk_tr142_debug_log_set] log_enable = 0
tr142_app app_log_enable = 0
AUTO_PON_MODE=1
[ 8.890000] re8670_open 5085
[ 8.890000] re8670_open 5100
[ 8.900000] re8670_open 5100
[ 8.920000] re8670_open 5100
running GPON mode ...
insmod: can't insert '/lib/modules/rldp_drv.ko': No such file or directory
Loading Realtek IGMP/ MLD Snooping Module...
[ 9.260000] multicast_moudle_init
----- do_rc [/etc/init.d/rc10] -----
----- do_rc [/etc/init.d/rc14] -----
----- do_rc [/etc/init.d/rc18] -----
----- do_rc [/etc/init.d/rc20] -----
----- do_rc [/etc/init.d/rc32] -----
[setup_pushbtn_thread:3717] Create new theread for pushbtn
Input driver version is 1.0.1
Input device ID: bus 0x19 vendor 0x1 product 0x1 version 0x100
Input device name: "gpio-keys"
Supported events:
Event type 0 (Sync)
Event type 1 (Key)
Event code 238
Event code 408
Event type 20 (Repeat)
Grab succeeded, ungrabbing.
Start rtk_ramonitor daemon!
[ 9.510000] Reset value to -1
Testing ... (interrupt to exit)
[ 9.520000] Reset value to -1
rtkbosa: Don’t care pon mode, use general file
[ 9.540000] Reset value to -1
[ 9.550000] Reset value to -1
[ 9.560000] Reset value to -1
[ 9.570000] Reset value to -1
cat: can't open '/var/config/rtkbosa_k_checksum'[ 9.580000] Reset value to -1
: No such file or directory
[ 9.590000] random: nonblocking pool is initialized
[ 9.590000] Reset value to -1
rtkbosa: checksumold =
rtkbosa: Use general file [/var/config/[ 9.600000] Reset value to -1
rtkbosa_k.bin]
[1;33;46mrtkbosa: Version 2.9 (Mar 15 2023 - 18:41:49)[m
[ 9.680000] 0
rtkbosa: Detecting RTL8290B ...
rtkbosa: Error (0x10): The chip is not found
rtkbosa: Detecting UX3360 ...
rtkbosa: REG161=0x00
rtkbosa: Read 0x51.0x80(0x55): 0xFF
rtkbosa: Read 0x51.0x81(0x58): 0xFF
rtkbosa: Read 0x51.0x82(0x33): 0xFF
rtkbosa: Read 0x51.0x83(0x33): 0xFF
rtkbosa: Read 0x51.0x84(0x36): 0xFF
rtkbosa: Read 0x51.0x85(0x30): 0xFF
rtkbosa: Detecting UX3320S ...
rtkbosa: Read 0x51.0xF5(0x55): 0x55
rtkbosa: Read 0x51.0xF6(0x58): 0x58
rtkbosa: Read 0x51.0xF7(0x33): 0x33
rtkbosa: Read 0x51.0xF8(0x33): 0x33
rtkbosa: Read 0x51.0xF9(0x32): 0x32
rtkbosa: Read 0x51.0xFA(0x30): 0x30
rtkbosa: Read 0x51.0xFB(0x53): 0x53
rtkbosa: Init UX3320S ...
rtkbosa: Open file [/var/config/rtkbosa_k.bin]
/var/config/omci_ignore_mib_tbl.conf meClassId:255
/var/config/omci_ignore_mib_tbl.conf subType:0
/var/config/omci_ignore_mib_tbl.conf meClassId:247
/var/config/omci_ignore_mib_tbl.conf subType:0
<fMgmtInit:601> is the so is not a regular file.
<fMgmtInit:601> is the so is not a regular file.
<fMgmtInit:601> is the so is not a regular file.
meter set pon-tick-token tick-period 73 token 97
Module libomcivoip.so is loaded and inited
[libtr142][OMCI] == rtk_tr142.so is loaded ==
[rtk_tr142_debug_log_set] log_enable = 0
Module libtr142.so is loaded and inited
load moduleOptInitFunc
Module /lib/features/internal/bdp_00000080.so is inited
Module /lib/features/internal/mc_00000002.so is inited
RTK.0> command:[rtk_qos_tick_tocken_init:191] Enable 9607C 8000Kbps base !!
Module /lib/features/internal/me_00040000.so is inited
meter set tick-token tick-period 71 token 151
RTK.0> command:####################### voice_rtk_init_voip_cfg() #######################
voip omci line state share size = 764
codec_suporrt_list 1279
### voice_rtk_init_voip_cfg()###, pFlash=0x771331a8, g_pLineState=0x7761c000
register set 0x801030 0x80004797
[1;33;46mrtkbosa: 9603C/9607C(1): A2/0x9E = 0x68[m
[1;33;46mrtkbosa: 9603C/9607C(2): A2/0x9E = 0x68[m
[1;33;46mrtkbosa: A2.T2/0x8E = 0x40[m
RTK.0> command:omci_wrapper_getTransceiverStatus ioctl failed 4
omci_GetTransceiverInfo 7450 : get WAVE length fail
[ 10.110000] [rtk_tr142_veip_get_transparent_ifIndex] ifIndex = 0
Error: cannot op[ 10.150000] do_rtdrv_ext_igmpHook_set_ctl cmd (16018)
en /sys/class/net/eth0.2.0/ifindex
Error: cannot op[ 10.160000] do_rtdrv_ext_igmpHook_set_ctl cmd (16018)
en /sys/class/net/eth0.3.0/ifind[ 10.170000] do_rtdrv_ext_igmpHook_set_ctl cmd (16018)
ex
Error: cannot open /sys/class/net/eth0.4.0/i[ 10.180000] do_rtdrv_ext_igmpHook_set_ctl cmd (16018)
findex
Error: cannot open /sys/class/net/eth0.5.0/ifindex
CMD: /bin/sh -c /bin/echo 5 nas0 > /proc/rtl8686gmac/dev_port_mapping
Ignore classId:287
MIB_Table_In[ 10.200000] port 5 it Init mib tablassign to nas0
e:mib_ExtendedOn[ 10.210000] nas0 -> 0x20
uGZTE.so fail, error code is:1...
CMD: /bin/sh -c echo 0x20 > /proc/fc/ctrl/wan_port_mask
CMD: /bin/smuxctl --if nas0 --set-if-rsmux --set-if-rx-policy DROP --set-if-tx-policy CONTINUE --set-if-rxmc-policy DROP --set-if-rx-multi 1
MIB chain descriptors checking (total 56) ok !
##########enter[check_suser_password]########
lk>debug>setup_mac_addr index=0
[1;33;46m<utility.c 761 setup_mac_addr> [mmacAddr[5]+0 = 89
lk>debug>setup_mac_addr index=1
[1;33;46m<utility.c 761 setup_mac_addr> [mmacAddr[5]+1 = 8a
lk>debug>setup_mac_addr index=2
[1;33;46m<utility.c 761 setup_mac_addr> [mmacAddr[5]+2 = 8b
omci_wrapper_msgHandler: devMode 1,receiveState 1,usrLogLvl 1, drvLogLvl 1,sn PRLN 5
>>> Disable /dev/console XON XOFF !!!
MIB_Table_Init Init mib table:mib_Me242.so fail, error code is:1...
CMD: /bin/ifconfig eth0.2 hw ether 90610cb53589
CMD: /bin/ifconfig eth0.3 hw ether 90610cb53589
CMD: /bin/ifconfig eth0.4 hw ether 90610cb53589
CMD: /bin/ifconfig eth0.5 hw ether 90610cb53589
MIB_Table_Init Init mib table:mib_Me243.so fail, error [ 10.360000] tv_sec:10 code is:1...
MItv_usec:361950
B_Table_Init Ini[ 10.360000] CPU0 kick watchdog!
t mib table:mib_Me350.so fail, error code is:1...
CMD: /bin/ifconfig wlan0 hw ether 90610cb53589
MIB_Table_Init Init mib table:mib_Me370.so fail, error code is:1...
MIB_Table_Init Init mib table:mib_Me373.so fail, error code is:1...
CMD: /bin/ifconfig wlan0 mtu 1500
lk>debug>setup_mac_addr index=1
[1;33;46m<utility.c 761 setup_mac_addr> [mmacAddr[5]+1 = 8a
CMD: /bin/ifconfig wlan0-vap0 hw ether 90610cb5358a
CMD: /bin/ifconfig wlan0-vap0 mtu 1500
lk>debug>setup_mac_addr index=1
[1;33;46m<utility.c 761 setup_mac_addr> [mmacAddr[5]+1 = 8b
CMD: /bin/ifconfig wlan0-vap1 hw ether 90610cb5358b
CMD: /bin/ifconfig wlan0-vap1 mtu 1500
lk>debug>setup_mac_addr index=1
[1;33;46m<utility.c 761 setup_mac_addr> [mmacAddr[5]+1 = 8c
CMD: /bin/ifconfig wlan0-vap2 hw ether 90610cb5358c
CMD: /bin/ifconfig wlan0-vap2 mtu 1500
lk>debug>setup_mac_addr index=1
[1;33;46m<utility.c 761 setup_mac_addr> [mmacAddr[5]+1 = 8d
CMD: /bin/ifconfig wlan0-vap2 hw ether 90610cb5358d
CMD: /bin/ifconfig wlan0-vap2 mtu 1500
lk>debug>setup_mac_addr index=1
[1;33;46m<utility.c 761 setup_mac_addr> [mmacAddr[5]+1 = 8e
CMD: /bin/ifconfig wlan1 hw ether 90610cb5358e
CMD: /bin/ifconfig wlan1 mtu 1500
lk>debug>setup_mac_addr i[ 10.480000] port 0 assign to eth0.2
ndex=1
[1;33;4[ 10.480000] eth0.2 -> 0x1
6m<utility.c 761 setup_mac_addr> [mmacAddr[5]+1 = 8f
CMD: /bin/ifconfig wlan1-vap0 hw ether 90610cb5358f
CMD: /bin/ifconfig wlan1-vap0 mtu 1500
lk>debug>setup_mac_addr index=1
[1;33;46m<utility.c 761 setup_mac_addr> [mmacAddr[5]+1 = 90
CMD: /bin/ifconfig wlan1-vap1 hw ether 90610cb53590
CMD: /bin/ifconfig wlan1-vap1 mtu 1500
lk>debug>setup_mac_addr index=1
[1;33;46m<utility.c 761 setup_mac_addr> [mmacAddr[5]+1 = 91
CMD: /bin/ifconfig wlan1-vap2 hw ether 90610cb53591
CMD: /bin/ifconfig wlan1-vap2 mtu 1500
lk>debug>setup_mac_addr index=1
[1;33;46[ 10.540000] port 1 m<utility.c 761 assign to eth0.3
setup_mac_addr> [ 10.540000] eth0.3 -> 0x2
[mmacAddr[5]+1 = 92
CMD: /bin/ifconfig wlan1-vap2 hw ether 90610cb53592
CMD: /bin/ifconfig wlan1-vap2 mtu 1500
CMD: /bin/ifconfig eth0 up
CM[ 10.560000] write watchdog_flag to 0x00000001
D: /bin/ifconfig[ 10.570000] REG32(BSP_WDTCTRLR) = 0xe7c00000
eth0 mtu 1500
CMD: /bin/sh -c /bin/echo 0 eth0.2 > /proc/rtl8686gmac/dev_port_mapping
Ignore classId:255 SubType:0
MIB_Table_Init Init mib table:mib_PrivateTellionOntStatistics.so fail, error code is:1...
CMD: /bin/sh -c echo eth0.2.0 0 >> /var/dev_port_mapping
CMD: /bin/ifconfig eth0.2 up
CMD: /bin/ifconfig eth0.2 mtu 1500
CMD: /bin/smuxctl --if-create-name eth0.2 eth0.2.0 --set-if-rsmux
[1;33;46mrtkbosa: The Vendor name or PN is not empty, do NOT set it.[m
[1;33;46mrtkbosa: done[m
CMD: /bin/smuxctl --if eth0.2 --rx --tags 0 --set-rxif eth0.2.0 --rule-alias eth0.2-rx-default --rule-append
CMD: /bin/sh -c /bin/echo 1 eth0.3 > /proc/rtl8686gmac/dev_port_mapping
----- do_rc [/etc/init.d/rc34] ----[ 10.640000] port 2 -
CMD: /bin/assign to eth0.4
sh -c echo eth0.[ 10.650000] eth0.4 -> 0x4
3.0 1 >> /var/dev_port_mapping
CMD: /bin/ifconfig eth0.3 up
CMD: /bin/ifconfig eth0.3 mtu 1500
----- do_rc [/etc/init.d/rc35] -----
CMD: /bin/smuxctl --if-create-name eth0.3 eth0.3.0 --set-if-rsmux
CMD: /bin/smuxctl --if eth0.3 --rx --tags 0 --set-rxif eth0.3.0 --rule-alias eth0.3-rx-default --rule-append
run rcm voip script...
CMD: /bin/sh -c /bin/echo 2 eth0.4 > /proc/rtl8686gmac/dev_port_mapping
Turn on phy power...
CMD: /bin/sh -c echo eth0.4.0 2 >> /var/dev_port_mapping
CMD: /bin/ifconfig eth0.4 up
CMD: /bin/ifconfig eth0.4 mtu 1500
CMD: /bin/smuxctl --if-create-name eth0.4 eth0.4.0 --set-if-rsmux
diable printk= 0 parameter is 0
CMD: /bin/smuxctl --if eth0.4 --rx --tags 0 --set-rxif eth0.4.0 --rule-alias eth0.4-rx-default --rule-append
CMD[ 10.720000] port 3 : /bin/sh -c /biassign to eth0.5
n/echo 3 eth0.5 [ 10.730000] eth0.5 -> 0x8
> /proc/rtl8686gmac/dev_port_mapping
/bin/sh: can't open '/etc/scripts/board_init.sh'
CMD: /bin/sh -c echo eth0.5.0 3 >> /var/dev_port_mapping
CMD: /bin/ifconfig eth0.5 up
4 cpu
CMD: /bin/ifconfig eth0.5 mtu 1500
starting pid 604, tty '/dev/ttyS0': '/bin/login -p'
starting pid 607, tty '': '/bin/inetd'
ponmode PON_MODE=1
CMD: /bin/smuxctl --if-create-name eth0.5 eth0.5.0 --set-if-rsmux
CMD: /bin/smuxctl --if eth0.5 --rx --tags 0 --set-rxif eth0.5.0 --rule-alias eth0.5-rx-default --rule-append
[ 10.880000] Inactive PIN_CS:
[ 10.890000]
[ 10.890000] <<<<<<<<<<< Si3228x Driver Version 9.1.0 >>>>>>>>>>
[ 10.890000] --------------------------------------
[ 10.900000] SLIC HW intf 0 starting at 0 CS=00000000
service /bin/dropbear port 22 tcp enabled
service /bin/ftpd port 21 tcp enabled
service /bin/telnetd port 23 tcp enabled
service /bin/tftpd port 69 udp enabled
CMD: /bin/brctl addbr br0
login: [ 11.010000] cs0
[ 11.010000] MSIF_LOCK 0x1, cs 0x0
[ 11.010000] aipc: (0235)aipc_module_voip_set_pcm_fs IO_MODE_EN=0x0000a050
[ 11.020000] Pull low GPIO 28
CMD: /bin/ifconfig br0 hw ether 90610cb53589
CMD: /bin/ifconfig br0 mtu 1500
CMD: /bin/ifconfig eth0 hw ether 90610cb53589
ifconfig: SIOCSIFHWADDR: Device or resource busy
[rtk_fc_stp_clean@3024]: ERROR! No such file or directory
[rtk_fc_stp_clean@3036]: ERROR! No such file or directory
CMD: /bin/sh -c /bin/smuxctl --if eth0.2 --rx --tags 0 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.2 --tx --tags 0 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.2 --rx --tags 1 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.2 --tx --tags 1 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.2 --rx --tags 2 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.2 --tx --tags 2 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.2 --rx --tags 3 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.2 --tx --tags 3 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.3 --rx --tags 0 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.3 --tx --tags 0 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.3 --rx --tags 1 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.3 --tx --tags 1 --rule-remove-alias STP-Rule+
[ 11.240000] Pull high GPIO 28
[ 11.240000] Start SLIC init....
[ 11.240000] Start SLIC init....
CMD: /bin/sh -c /bin/smuxctl --if eth0.3 --rx --tags 2 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.3 --tx --tags 2 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.3 --rx --tags 3 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.3 --tx --tags 3 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.4 --rx --tags 0 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.4 --tx --tags 0 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.4 --rx --tags 1 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.4 --tx --tags 1 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.4 --rx --tags 2 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.4 --tx --tags 2 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.4 --rx --tags 3 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.4 --tx --tags 3 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.5 --rx --tags 0 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.5 --tx --tags 0 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.5 --rx --tags 1 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.5 --tx --tags 1 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.5 --rx --tags 2 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.5 --tx --tags 2 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.5 --rx --tags 3 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.5 --tx --tags 3 --rule-remove-alias STP-Rule+
CMD: /bin/brctl stp br0 off
CMD: /bin/brctl setfd br0 1
CMD: /bin/brctl setageing br0 7200
setupUniPortCapability:22578 line is 2;2;2;2
setupUniPortCapability:22582 pch is 2
setupUniPortCapability:22656 pch is 2, port 0, UNI_PORT_GE
setupUniPortCapability:22582 pch is 2
setupUniPortCapability:22656 pch is 2,[ 11.690000] pf_rt_ActivateGpon 3801 deactivate GPON fail ret:-1
port 1, UNI_POR[ 11.690000]
T_GE
setupUniPo[ 11.700000] priority: 1, portmask 2047, rx: 8076b774
rtCapability:225[ 11.700000] device eth0.2.0 entered promiscuous mode
82 pch is 2
set[ 11.710000] insert here, priority: 4, portmask 32, rx: 80366fd8
upUniPortCapability:22656 pch is 2, port 2, UNI_PORT_GE
setupUniPortCapability:22582 pch is 2
setupUniPortCa[ 11.730000] device eth0.3.0 entered promiscuous mode
pability:22656 pch is 2
, port 3, UNI_PORT_GE
CMD: /bin/ifconfig eth0.2.0 mtu 1500
CMD: /bin/brctl addif br0 eth0.2.0
omci_wrapper_a[ 11.750000] device eth0.4.0 entered promiscuous mode
ctivateGpon ioctl failed
CMD: /bin/ifconfig eth0.2.0 up
[sendMessageToLanNetInfo 19438]: get lannetinfo msgqueue error!
[restart_ethernet@16135] eth0.2.0[ 11.770000] device eth0.5.0 entered promiscuous mode
is up
getUniPortCapability:22697 line is 2;2;2;2
getUniPortCapability:2270[ 11.780000] SLIC0 ID: 4 pch is 2, portSi3227
[ 11.780000] SLIC1 ID: is 0
CMD: /Si3227
bin/ifconfig eth[ 11.790000] [32m[0000007430][ ][0m Si3228x_Init_with_Options(470) size = 2 init_opt = 0
0.3.0 mtu 1500
CMD: /bin/brctl addif br0 eth0.3.0
CMD: /bin/ifconfig e[ 11.800000] [32m[0000007440][ ][0m SiVoice: Channel 0: Type = PROSLIC Rev = 3
th0.3.0 up
[restart_ethernet@16135] eth0.3.0 is up
[sendMessageToLanNetInfo [ 11.820000] [32m[0000007460][ ][0m SiVoice: Channel 1: Type = PROSLIC Rev = 3
19438]: get lannetinfo msgqueue error!
getUniPortCapability:22697 line is 2;2;2;2
getUniPortCapability:22704 pch is 2, port is 1
CMD: /bin/ifconfig eth0[ 11.840000] [32m[0000007480][ ][0m ProSLIC:loading patch: 05262017
.4.0 mtu 1500
CMD: /bin/brctl addif br0 eth0.4.0
CMD: /bin/ifconfig eth0.4.0 up
[restart_ethernet@16135] eth0.4.0 is up
[sendMessageToLanNetInfo 19438]: get lannetinfo msgqueue e[ 11.870000] IPv6: ADDRCONF(NETDEV_UP): br0: link is not ready
rror!
getUniPortCapability:22697 line is 2;2;2;2
getUniPortCapability:22704 pch is 2, port is 2
CMD: /bin/ifconfig eth0.5.0 mtu 1500
CMD: /bin/brctl addif br0 eth0.5.0
CMD: /bin/ifconfig eth0.5.0 up
[restart_ethernet@16135] eth0.5.0 is up
[sendMessageToLanNetInfo 19438]: get lannetinfo msgqueue error!
getUniPortCapability:22697 line is 2;2;2;2
getUniPortCapability:22704 pch is 2
, port is 3
CMD: /bin/ifconfig br0 192.168.1.1 netmask 255.255.255.0 mtu 1500
Find ATM_VC_TBL interface br0 Fail!
CMD: /bin/ifconfig br0 add fe80::1/64
Set Link-Local Address for br0
sh: can't create /proc/driver/realtek/rtk_op_mode: nonexistent directory
CMD: /bin/spppd
iptables: Bad rule (does a matching rule exist in that chain?).
CMD: /bin/vsntp -s 216.239.35.4
CMD: /bin/boa connect 216.239.35.4: Network is unreachable
CMD: /bin/touch /var/monitor_list
CMD: /bin/monitord
[ 12.250000] [32m[0000007890][ ][0m Si3228x: VBAT @ 50ms = 58.901 v
===== monitord =====
Debug message: off
Monitor Timer: 15 sec.
[ 12.330000] [32m[0000007970][ ][0m Si3228x: VBAT Up = 58.692 v
[update_monitor_list_file:23108] process_name = omci_app, action = 1
New file monitor_list change.
[update_monitor_list_file:23108] process_name = lanNetInfo, action = 1
New file monitor_list change.
[ 12.380000] drivers/net/ethernet/realtek/rtl86900/sdk/src/rtk/pon_led.c:1189 led sw blink init complete!
rtk_pon_led_SpecType_set 0
[1;33;46m<utility.c 5984 startWan> [mstartWan Start all WAN
CMD: /bin/ifconfig nas0 hw ether 90610cb53589
CMD: /bin/ifconfig nas0 up
CMD: /bin/ifconfig nas0 mtu 1500
CMD: /bin/ifconfig nas0 mtu 1500
CMD: /bin/sh -c /bin/smuxctl --if-create-name nas0 nas0_0 --set-if-rsmux --carrier MANUAL
CMD: /bin/sh -c /bin[ 12.420000] [32m[0000008060][ ][0m Si3228x: VBAT @ 50ms = 58.901 v
/smuxctl --if nas0_0 --rx --tags 1 --filter-vid 0x400 1 --pop-tag --rule-alias nas0_0-rx-default-leaf --rule-append
==> [addEthWANdev] /bin/smuxctl --if nas0_0 --tx --tags 0 --push-tag --set-vid 0x400 1 --set-priority 0 1 --target ACCEPT --rule-alias nas0_0-tx-default --rule-append
CMD: /bin/sh -c /bin/smuxctl --if nas0_0 --tx --tags 0 --push-tag --set-vid 0x400 1 --set-priority 0 1 --target ACCEPT --rule-alias nas0_0-tx-default --rule-append
==> [addEthWANdev] /bin/smuxctl --if nas0_0 --tx --tags 1 --set-vid 0x400 1 --set-priority 0 1 --target ACCEPT --rule-alias nas0_0-tx-default --rule-append
CMD: /bin/sh -c /bin/smuxctl --if nas0_0 --tx --tags 1 --set-vid 0x400 1 --set-priority 0 1 --target ACCEPT --rule-alias nas0_0-tx-default --rule-append
[fixUpDns6_other:3512] dns_file=/var/resolv6.conf.nas0_0
[update_monitor_list[ 12.500000] [32m[0000008140][ ][0m Si3228x: VBAT Up = 59.111 v
_file:23108] process_name = dnsmasq, action = 0
New file monitor_list change.
==> [addEthWANdev] /bin/smuxctl --if nas0_0 --tx --tags 2 --set-vid 0x400 2 --set-priority 0 2 --target ACCEPT --rule-alias nas0_0-tx-default --rule-append
CMD: /bin/sh -c /bin/smuxctl --if nas0_0 --tx --tags 2 --set-vid 0x400 2 --set-priority 0 2 --target ACCEPT --rule-alias nas0_0-tx-default --rule-append
Open file /var/tmp/hosts failed !
==> [addEthWANdev] /bin/smuxctl --if nas0_0 --tx --tags 3 --set-vid 0x400 3 --set-priority 0 3 --target ACCEPT --rule-alias nas0_0-tx-default --rule-append
CMD: /bin/sh -c /bin/smuxctl --if nas0_0 --tx --tags 3 --set-vid 0x400 3 --set-priority 0 3 --target ACCEPT --rule-alias nas0_0-tx-default --rule-append
CMD: /bin/ifconfig nas0_0 mtu 1500
cmdStr: echo 130816 1 1024 0 4 -1 > /proc/rtk_tr142/wan_info
restart DNS relay failed !
CMD: /bin/ifconfig nas0 mtu 1500
CMD: /bin/sh -c /bin/smuxctl --if-create-name nas0 nas0_1 --set-if-rsmux --carrier MANUAL
CMD: /bin/sh -c /bin/smuxctl --if nas0_1 --rx --tags 1 --filter-vid 0x406 1 --pop-tag --rule-alias nas0_1-rx-default-leaf --rule-append
==> [addEthWANdev] /bin/smuxctl --if nas0_1 --tx --tags 0 --push-tag --set-vid 0x406 1 --set-priority 0 1 --target ACCEPT --rule-alias nas0_1-tx-default --rule-append
CMD: /bin/sh -c /bin/smuxctl --if nas0_1 --tx --tags 0 --push-tag --set-vid 0x406 1 --set-priority 0 1 --target ACCEPT --rule-alias nas0_1-tx-default --rule-append
==> [addEthWANdev] /bin/smuxctl --if nas0_1 --tx --tags 1 --set-vid 0x406 1 --set-priority 0 1 --target ACCEPT --rule-alias nas0_1-tx-default --rule-append
CMD: /bin/sh -c /bin/smuxctl --if nas0_1 --tx --tags 1 --set-vid 0x406 1 --set-priority 0 1 --target ACCEPT --rule-alias nas0_1-tx-default --rule-append
==> [addEthWANdev] /bin/smuxctl --if nas0_1 --tx --tags 2 --set-vid 0x406 2 --set-priority 0 2 --target ACCEPT --rule-alias nas0_1-tx-default --rule-append
CMD: /bin/sh -c /bin/smuxctl --if nas0_1 --tx --tags 2 --set-vid 0x406 2 --set-priority 0 2 --target ACCEPT --rule-alias nas0_1-tx-default --rule-append
==> [addEthWANdev] /bin/smuxctl --if nas0_1 --tx --tags 3 --set-vid 0x406 3 --set-priority 0 3 --target ACCEPT --rule-alias nas0_1-tx-default --rule-append
CMD: /bin/sh -c /bin/smuxctl --if nas0_1 --tx --tags 3 --set-vid 0x406 3 --set-priority 0 3 --target ACCEPT --rule-alias nas0_1-tx-default --rule-append
CMD: /bin/ifconfig nas0_1 mtu 1500
cmdStr: echo 130817 1 1030 0 4 -1 > /proc/rtk_tr142/wan_info
CMD: /bin/ifconfig nas0 mtu 1500
CMD: /bin/sh -c /bin/smuxctl --if-create-name nas0 nas0_2 --set-if-rsmux --carrier[ 12.740000] ubi0 error: ubi_open_volume: cannot open device 0, volume 0, error -16
MANUAL
CMD: /bin/sh -c /bin/smuxctl --if nas0_2 --rx --tags 1 --filter-vid 0x401 1 --pop-tag --rule-alias nas0_2-rx-default-leaf --rule-append
==> [addEthWANdev] /bin/smuxctl --if nas0_2 --tx --tags 0 --push-tag --set-vid 0x401 1 --set-priority 0 1 --target ACCEPT --rule-alias nas0_2-tx-default --rule-append
CMD: /bin/sh -c /bin/smuxctl --if nas0_2 --tx --tags 0 --push-tag --set-vid 0x401 1 --set-priority 0 1 --target ACCEPT --rule-[ 12.790000] IPv6: ADDRCONF(NETDEV_UP): nas0_0: link is not ready
alias nas0_2-tx-default --rule-append
==> [addEthWANdev] /bin/[ 12.800000] IPv6: ADDRCONF(NETDEV_UP): nas0_0: link is not ready
smuxctl --if nas0_2 --tx --tags 1 --set-vid 0x401 1 --set-priority 0 1 --target ACCEPT --rule-alias nas0_2-tx-default --rule-append
CMD: /bin/sh -c /bin/smuxctl --if nas0_2 --tx --tags 1 --set-vid 0x401 1 --set-priority 0 1 --target ACCEPT --rule-alias nas0_2-tx-default --rule-append
==> [addEthWANdev] /bin/smuxctl --if nas0_2 --tx --tags 2 --set-vid 0x401 2 --set-priority 0 2 --target ACCEPT --rule-alias nas0_2-tx-default --rule-append
CMD: /bin/sh -c /bin/smuxctl --if nas0_2 --tx --tags 2 --set-vid 0x401 2 --set-priority 0 2 --target ACCEPT --rule-alias nas0_2-tx-default --rule-append
==> [addEthWANdev] /bin/smuxctl --if nas0_2 --tx --tags 3 --set-vid 0x401 3 --set-priority 0 3 --target ACCEPT --rule-alias nas0_2-tx-default --rule-append
CMD: /bin/sh -c /bin/smuxctl --if nas0_2 --tx --tags 3 --set-vid 0x401 3 --set-priority 0 3 --target ACCEPT --rule-alias nas0_2-tx-default --rule-append
CMD: /bin/ifconfig nas0_2 mtu 1500
cmdStr: echo 130818 1 1025 0 2 1026 > /proc/rtk_tr142/wan_info
CMD: /bin/ifconfig nas0_0 down
CMD: /bin/ifconfig nas0_0 down hw ether
CMD: /bin/ifconfig nas0_0 mtu 1500
CMD: /bin/ifconfig nas0_0 txqueuelen 10
CMD: /bin/ifconfig nas0_0 up
unlink /var/interface/uptime/nas0_0
[startConnection@4311] pEntry->ifIndex = 130816, pEntry->cmode = 1
1483 MER
CMD: /bin/iptables -A INPUT -i nas0_0 -p UDP --dport 69 -d 255.255.255.255 -m state --state NEW -j ACCEPT
voip flash server share size = 15885
rcm_voip_get_ctype_interface
++++++The size of voipConfig 15185
CMD: /bin/ifconfig nas0_0 up
CMD: /bin/udhcpc -i nas0_0 -p CMD: /var/run/udhcpc.pid.nas0_0 -s /etc/scripts/udhcpc.sh
<bind_web_socket:345> socket:4, ip_ver:6, port:443
CMD: /bin/ip -4 rule del from all lookup 257 pref 19900
main 753 wan_ifIndex=130816 client_config.interface=nas0_0
udhcp client (v0.9.8) started
initialDhcpcOptionTbl: existing rule num:36
RTNETLINK answers: No such file or directory
CMD: /bin/ip -4 rule add from all lookup 257 pref 19900
CMD: /bin/ip rule del fwmark 0x2000/0x3e000 prohibit
RTNETLINK answers: No such file or directory
CMD: /bin/ip rule add fwmark 0x2000/0x3e000 pref 30000 prohibit
RTNETLINK answers: No such process
initialDhcpcOptionTbl: add 0 rule to interface 0x1ff00
RTNETLINK answers: No such process
[ 13.160000] [32m[0000008760][ ][0m Si3228x: : ProSLIC initialization completed.
[ 13.170000] [32m[0000008770][ ][0m ProSLIC:Starting LB Cal on channel 0
UPNP=0
<bind_web_socket:345> socket:9, ip_ver:6, port:80
[ 14.040000] IPv6: ADDRCONF(NETDEV_UP): nas0_0: link is not ready
startIP_for_V6 do DHCPv6 for INFO_REQUEST_DHCP_MODE
CMD: /var/run/dhcpc6.sh
CMD: /bin/ip -6 rule del fwmark 0x2000/0x3e000 prohibit
RTNETLINK answers: No such file or directory
CMD: /bin/ip -6 rule add fwmark 0x2000/0x3e000 pref 30000 prohibit
CMD: /bin/iptables -t nat -N address_map_tbl
CMD: /bin/ip6tables -t nat -N address_map_tbl
CMD: /bin/iptables -t nat -A address_map_tbl -o nas0_0 -j MASQUERADE
CMD: /bin/ifconfig nas0_1 down
CMD: /bin/ifconfig nas0_1 down hw ether
CMD: /bin/ifconfig nas0_1 mtu 1500
CMD: /bin/ifconfig nas0_1 txqueuelen 10
[ 14.170000] IPv6: ADDRCONF(NETDEV_UP): nas0_1: link is not ready
CMD: /bin/ifconfig nas0_1 up
unlink /var/interface/uptime/nas0_1
[ 14.190000] IPv6: ADDRCONF(NETDEV_UP): nas0_1: link is not ready
[startConnection@4311] pEntry->ifIndex = 130817, pEntry->cmode = 1
1483 MER
CMD: /bin/iptables -A INPUT -i nas0_1 -p UDP --dport 69 -d 255.255.255.255 -m state --state NEW -j ACCEPT
CMD: /bin/ifconfig nas0_1 up
CMD: /bin/udhcpc -i nas0_1 -p CMD: /var/run/udhcpc.pid.nas0_1 -s /etc/scripts/udhcpc.sh
RTNETLINK answers: No such process
CMD: /bin/ip -4 rule del from all lookup 257 pref 19900
CMD: /bin/ip -4 rule add from all lookup 257 pref 19900
RTNETLINK answers: No such process
CMD: /bin/ip rule del fwmark 0x4000/0x3e000 prohibit
main 753 wan_ifIndex=130817 client_config.interface=nas0_1
udhcp client (v0.9.8) started
initialDhcpcOptionTbl: existing rule num:36
RTNETLINK answers: No such file or directory
CMD: /bin/ip rule add fwmark 0x4000/0x3e000 pref 30000 prohibit
initialDhcpcOptionTbl: add 0 rule to interface 0x1ff01
UPNP=0
[ 15.240000] [32m[0000010730][ ][0m ProSLIC:Starting LB Cal on channel 1
CMD: /bin/ip -6 rule del fwmark 0x4000/0x3e000 prohibit
RTNETLINK answers: No such file or directory
CMD: /bin/ip -6 rule add fwmark 0x4000/0x3e000 pref 30000 prohibit
CMD: /bin/iptables -t nat -N address_map_tbl
iptables: Chain already exists.
CMD: /bin/ip6tables -t nat -N address_map_tbl
ip6tables: Chain already exists.
CMD: /bin/iptables -t nat -A address_map_tbl -o nas0_1 -j MASQUERADE
CMD: /bin/ifconfig nas0_2 down
CMD: /bin/ifconfig nas0_2 down hw ether
CMD: /bin/ifconfig nas0_2 txqueuelen 10
CMD: /bin/ifconfig nas0_2 up
unlink /var/interface/uptime/nas0_2
[startConnection@4311] pEntry->ifIndex = 130818, pEntry->cmode =[ 15.360000] device nas0_2 entered promiscuous mode
0
1483 bridged
CMD: /bin/brctl addif br0 nas0_2
CMD: /bin/ip rule del fwmark 0x6000/0x3e000 prohibit
RTNETLINK answers: No such file or directory
CMD: /bin/ip rule add fwmark 0x6000/0x3e000 pref 30000 prohibit
CMD: /bin/ip -6 rule del fwmark 0x6000/0x3e000 prohibit
RTNETLINK answers: No such file or directory
CMD: /bin/ip -6 rule add fwmark 0x6000/0x3e000 pref 30000 prohibit
unlink /var/interface/uptime/nas0_2
CMD: /bin/iptables -t nat -N address_map_tbl
iptables: Chain already exists.
CMD: /bin/ip6tables -t nat -N address_map_tbl
ip6tables: Chain already exists.
CMD: /bin/ip -6 rule del from all lookup 257 pref 19900
unlink /var/interface/uptime/nas0_2
RTNETLINK answers: No such file or directory
CMD: /bin/ip -6 rule add from all lookup 257 pref 19900
CMD: /bin/sh -c echo 1 > /sys/devices/virtual/net/br0/bridge/multicast_router
CMD: /bin/ethctl conntrack killall
unlink /var/interface/uptime/nas0_2
CMD: /bin/ebtables -N lan_igmp_flooding_block
CMD: /bin/ebtables -P lan_igmp_flooding_block RETURN
CMD: /bin/ebtables -A FORWARD -j lan_igmp_flooding_block
CMD: /bin/ebtables -A lan_igmp_flooding_block -i ! nas+ -o ! nas+ -p IPv4 --ip-proto igmp -j DROP
CMD: /bin/ebtables -A lan_igmp_flooding_block -i ! nas+ -o ! nas+ -p IPv6 --ip6-proto ipv6-icmp --ip6-icmp-type 130:132/0:255 -j DROP
CMD: /bin/ebtables -A lan_igmp_flooding_block -i ! nas+ -o ! nas+ -p IPv6 --ip6-proto ipv6-icmp --ip6-icmp-type 143:143/0:255 -j DROP
CMD: /bin/iptables -P INPUT ACCEPT
CMD: /bin/iptables -P FORWARD ACCEPT
CMD: /bin/iptables -A FORWARD -p tcp -o ppp+ --tcp-flags SYN,RST SYN -j TCPMSS --clamp-mss-to-pmtu
CMD: /bin/iptables -A FORWARD -p tcp -i ppp+ --tcp-flags SYN,RST SYN -m tcpmss --mss 1452:65495 -j TCPMSS --set-mss 1452
CMD: /bin/ip6tables -A FORWARD -p tcp -o ppp+ --tcp-flags SYN,RST SYN -j TCPMSS --clamp-mss-to-pmtu
CMD: /bin/ip6tables -A FORWARD -p tcp -i ppp+ --tcp-flags SYN,RST SYN -m tcpmss --mss 1432:65475 -j TCPMSS --set-mss 1432
CMD: /bin/iptables -A INPUT -p udp --dport 520 -j ACCEPT
CMD: /bin/iptables -A INPUT ! -i br0 -d 239.255.255.250 -j DROP
CMD: /bin/iptables -A INPUT -d 224.0.0.0/4 -j ACCEPT
CMD: /bin/iptables -A INPUT -i lo -j ACCEPT
CMD: /bin/ip6tables -A INPUT -i lo -j ACCEPT
CMD: /bin/iptables -N aclblock
CMD: /bin/iptables -t nat -N aclblock
CMD: /bin/iptables -t mangle -N aclblock
CMD: /bin/iptables -F aclblock
CMD: /bin/iptables -t nat -F aclblock
CMD: /bin/iptables -t mangle -F aclblock
CMD: /bin/iptables -A aclblock -i lo -j RETURN
CMD: /bin/iptables -A aclblock ! -i br0 -m mark --mark 0x1000 -j ACCEPT
CMD: /bin/iptables -A aclblock ! -i br0 -p udp --dport 67 -j ACCEPT
CMD: /bin/iptables -A aclblock ! -i br0 -p ICMP --icmp-type echo-request -m limit --limit 1/s -j DROP
CMD: /bin/iptables -A aclblock -m state --state ESTABLISHED,RELATED -j ACCEPT
CMD: /bin/iptables -A aclblock ! -i br0 -j DROP
CMD: /bin/iptables -F aclblock
CMD: /bin/iptables -t nat -F aclblock
CMD: /bin/iptables -t mangle -F aclblock
CMD: /bin/iptables -A aclblock -i br0 -m iprange --src-range 192.168.1.1-192.168.1.255 -j RETURN
CMD: /bin/iptables -A aclblock -p udp -i br0 --dport 53 -j RETURN
CMD: /bin/iptables -A aclblock -p udp ! -i br0 --dport 53 -j DROP
CMD: /bin/iptables -A aclblock -p udp -i br0 --dport 67 -j RETURN
CMD: /bin/iptables -A aclblock -i lo -j RETURN
CMD: /bin/iptables -A aclblock ! -i br0 -m mark --mark 0x1000 -j ACCEPT
CMD: /bin/iptables -A aclblock ! -i br0 -p udp --dport 67 -j ACCEPT
CMD: /bin/iptables -A aclblock ! -i br0 -p ICMP --icmp-type echo-request -m limit --limit 1/s -j DROP
CMD: /bin/iptables -A aclblock -m state --state ESTABLISHED,RELATED -j ACCEPT
CMD: /bin/iptables -A aclblock -j DROP
CMD: /bin/iptables -A INPUT -j aclblock
CMD: /bin/iptables -t nat -A PREROUTING -j aclblock
CMD: /bin/iptables -t mangle -A PREROUTING -j aclblock
CMD: /bin/ip6tables -N aclblock
CMD: /bin/ip6tables -F aclblock
CMD: /bin/ip6tables -P INPUT DROP
CMD: /bin/ip6tables -I INPUT -p icmpv6 -j ACCEPT
CMD: /bin/ip6tables -P INPUT ACCEPT
CMD: /bin/ip6tables -A aclblock -p udp -i br0 --dport 53 -j RETURN
CMD: /bin/ip6tables -A aclblock -p udp ! -i br0 --dport 53 -j DROP
CMD: /bin/ip6tables -A aclblock -p udp -i br0 --dport 547 -j RETURN
CMD: /bin/ip6tables -A aclblock -i lo -j RETURN
CMD: /bin/ip6tables -A aclblock ! -i br0 -p udp --dport 67 -j ACCEPT
CMD: /bin/ip6tables -A aclblock -p icmpv6 --icmpv6-type router-advertisement -j RETURN
CMD: /bin/ip6tables -A aclblock -p icmpv6 --icmpv6-type neighbour-solicitation -j RETURN
CMD: /bin/ip6tables -A aclblock -p icmpv6 --icmpv6-type neighbour-advertisement -j RETURN
CMD: /bin/ip6tables -A aclblock -p udp --dport 546 -j RETURN
CMD: /bin/ip6tables -A aclblock -p udp --dport 547 -j RETURN
CMD: /bin/ip6tables -A aclblock -m state --state ESTABLISHED,RELATED -j ACCEPT
CMD: /bin/ip6tables -A aclblock -j DROP
CMD: /bin/ip6tables -I INPUT -p icmpv6 -j ACCEPT
CMD: /bin/ip6tables -A INPUT -j aclblock
CMD: /bin/iptables -N cwmp_aclblock
CMD: /bin/iptables -t mangle -N cwmp_aclblock
CMD: /bin/iptables -F cwmp_aclblock
CMD: /bin/iptables -t mangle -F cwmp_aclblock
CMD: /bin/iptables -t mangle -A cwmp_aclblock ! -i br0 -s 122.2.165.192/28 -p TCP --dport 7547 -j MARK --set-mark 0x1000
CMD: /bin/iptables -t mangle -A cwmp_aclblock ! -i br0 -s 122.52.182.98/32 -p TCP --dport 7547 -j MARK --set-mark 0x1000
CMD: /bin/iptables -t mangle -A cwmp_aclblock ! -i br0 -s 122.52.182.99/32 -p TCP --dport 7547 -j MARK --set-mark 0x1000
CMD: /bin/iptables -t mangle -A cwmp_aclblock ! -i br0 -s 122.52.182.100/32 -p TCP --dport 7547 -j MARK --set-mark 0x1000
CMD: /bin/iptables -t mangle -A cwmp_aclblock ! -i br0 -s 122.52.182.101/32 -p TCP --dport 7547 -j MARK --set-mark 0x1000
CMD: /bin/iptables -t mangle -A cwmp_aclblock ! -i br0 -s 122.52.182.102/32 -p TCP --dport 7547 -j MARK --set-mark 0x1000
CMD: /bin/iptables -A cwmp_aclblock ! -i br0 -m mark --mark 0x1000 -j ACCEPT
CMD: /bin/iptables -A cwmp_aclblock ! -i br0 -p TCP --dport 7547 -j DROP
CMD: /bin/iptables -A INPUT -j cwmp_aclblock
CMD: /bin/iptables -t mangle -A PREROUTING -j cwmp_aclblock
CMD: /bin/ebtables -N br_wan
CMD: /bin/ebtables -P br_wan RETURN
CMD: /bin/ebtables -N br_wan_out
CMD: /bin/ebtables -P br_wan_out RETURN
CMD: /bin/ebtables -N br_lan_out
CMD: /bin/ebtables -P br_lan_out RETURN
CMD: /bin/ebtables -A br_wan -i nas0_2 -j DROP
CMD: /bin/ebtables -A br_wan_out -o nas0_2 -j DROP
CMD: /bin/ebtables -A INPUT -j br_wan
CMD: /bin/ebtables -A OUTPUT -j br_wan_out
CMD: /bin/ebtables -A OUTPUT -j br_lan_out
CMD: /bin/ebtables -N br_wan_forward
CMD: /bin/ebtables -P br_wan_forward RETURN
[block_br_wan_forward:428] Entry.cmode =1, Entry.IpProtocol=3
[block_br_wan_forward:428] Entry.cmode =1, Entry.IpProtocol=3
[block_br_wan_forward:428] Entry.cmode =0, Entry.IpProtocol=3
CMD: /bin/ebtables -A FORWARD -j br_wan_forward
CMD: /bin/iptables -D INPUT -j voip_chain
iptables v1.4.18: Couldn't load target `voip_chain':No such file or directory
Try `iptables -h' or 'iptables --help' for more information.
CMD: /bin/iptables -F voip_chain
iptables: No chain/target/match by that name.
CMD: /bin/iptables -X voip_chain
iptables: No chain/target/match by that name.
CMD: /bin/iptables -N voip_chain
CMD: /bin/iptables -I INPUT -j voip_chain
CMD: /bin/iptables -I voip_chain ! -i br0 -p UDP --dport 5060 -j ACCEPT
CMD: /bin/iptables -I voip_chain ! -i br0 -p UDP --dport 9000:9003 -j ACCEPT
CMD: /bin/iptables -I voip_chain ! -i br0 -p UDP --dport 9000 -j ACCEPT
CMD: /bin/iptables -I voip_chain ! -i br0 -p UDP --dport 5060 -j ACCEPT
CMD: /bin/iptables -I voip_chain ! -i br0 -p UDP --dport 9004:9007 -j ACCEPT
CMD: /bin/iptables -I voip_chain ! -i br0 -p UDP --dport 9004 -j ACCEPT
CMD: /bin/ebtables -N wlan_block -P RETURN
CMD: /bin/ebtables -A FORWARD -j wlan_block
CMD: /bin/ebtables -N wlan_map_block -P RETURN
CMD: /bin/ebtables -A FORWARD -j wlan_map_block
CMD: /bin/ebtables -N br_pppoe
CMD: /bin/ebtables -P br_pppoe RETURN
CMD: /bin/ebtables -N br_pppoe_acl
CMD: /bin/ebtables -P br_pppoe_acl DROP
CMD: /bin/ebtables -A FORWARD -j br_pppoe
CMD: /bin/ebtables -A br_pppoe_acl --proto 0x8100 --vlan-encap 0x8863 -j RETURN
CMD: /bin/ebtables -A br_pppoe_acl --proto 0x8100 --vlan-encap 0x8864 -j RETURN
CMD: /bin/ebtables -A br_pppoe_acl --proto 0x8863 -j RETURN
CMD: /bin/ebtables -A br_pppoe_acl --proto 0x8864 -j RETURN
CMD: /bin/ebtables -A br_pppoe_acl -p IPv4 -d Multicast --ip-proto ! icmp -j ACCEPT
CMD: /bin/ebtables -A br_pppoe_acl -p IPv6 -d Multicast --ip6-proto ! ipv6-icmp -j ACCEPT
CMD: /bin/iptables -N domainblk
CMD: /bin/ip6tables -N domainblk
CMD: /bin/iptables -A domainblk -p udp --dport 53 -m dns --qname example.com --rmatch -j DROP
connect 216.239.35.4: Network is unreachable
CMD: /bin/ip6tables -D domainblk -p udp --dport 53 -m dns --qname example.com --rmatch -j DROP
ip6tables: Bad rule (does a matching rule exist in that chain?).
CMD: /bin/ip6tables -A domainblk -p udp --dport 53 -m dns --qname example.com --rmatch -j DROP
CMD: /bin/iptables -A domainblk -p udp --dport 53 -m dns --qname wpad.domain.name --rmatch -j DROP
CMD: /bin/ip6tables -D FORWARD -p udp --dport 53 -m dns --qname wpad.domain.name --rmatch -j DROP
ip6tables: Bad rule (does a matching rule exist in that chain?).
CMD: /bin/ip6tables -A FORWARD -p udp --dport 53 -m dns --qname wpad.domain.name --rmatch -j DROP
CMD: /bin/iptables -A INPUT -j domainblk
CMD: /bin/iptables -A FORWARD -j domainblk
CMD: /bin/iptables -A OUTPUT -j domainblk
CMD: /bin/ip6tables -A INPUT -j domainblk
CMD: /bin/ip6tables -A FORWARD -j domainblk
CMD: /bin/ip6tables -A OUTPUT -j domainblk
CMD: /bin/iptables -N tr069
CMD: /bin/iptables -A INPUT -j tr069
CMD: /bin/ip6tables -N ipv6_tr069
CMD: /bin/ip6tables -A INPUT -j ipv6_tr069
CMD: /bin/iptables -F tr069
CMD: /bin/ip6tables -F ipv6_tr069
CMD: /bin/iptables -A tr069 -i br0 -p tcp --dport 7547 -j REJECT --reject-with tcp-reset
CMD: /bin/iptables -A tr069 ! -i nas0_1 -p tcp --dport 7547 -j REJECT --reject-with tcp-reset
CMD: /bin/ip6tables -A ipv6_tr069 -p TCP --dport 7547 -j ACCEPT
CMD: /bin/iptables -t mangle -F interface_grouping_br0
iptables: No chain/target/match by that name.
CMD: /bin/iptables -t mangle -D PREROUTING -i br0 -j interface_grouping_br0
iptables v1.4.18: Couldn't load target `interface_grouping_br0':No such file or directory
Try `iptables -h' or 'iptables --help' for more information.
CMD: /bin/iptables -t mangle -X interface_grouping_br0
iptables: No chain/target/match by that name.
CMD: /bin/iptables -N dhcp_port_filter
CMD: /bin/iptables -A INPUT -j dhcp_port_filter
CMD: /bin/iptables -t nat -N address_map_tbl
iptables: Chain already exists.
CMD: /bin/iptables -t nat -A POSTROUTING -j address_map_tbl
CMD: /bin/ip6tables -t nat -N address_map_tbl
ip6tables: Chain already exists.
CMD: /bin/ip6tables -t nat -A POSTROUTING -j address_map_tbl
CMD: /bin/iptables -N urlblock
CMD: /bin/ip6tables -N urlblock
CMD: /bin/iptables -t mangle -N urlblock_fwd
CMD: /bin/iptables -t mangle -N urlblock_post
CMD: /bin/iptables -t mangle -N voip_remarking
CMD: /bin/ip6tables -t mangle -N urlblock_fwd
CMD: /bin/ip6tables -t mangle -N urlblock_post
CMD: /bin/iptables -t mangle -N voip_remarking
iptables: Chain already exists.
CMD: /bin/iptables -F urlblock
CMD: /bin/ip6tables -F urlblock
CMD: /bin/iptables -t mangle -F urlblock_fwd
CMD: /bin/iptables -t mangle -F urlblock_post
CMD: /bin/ip6tables -t mangle -F urlblock_fwd
CMD: /bin/ip6tables -t mangle -F urlblock_post
CMD: /bin/iptables -A FORWARD -j urlblock
CMD: /bin/ip6tables -A FORWARD -j urlblock
CMD: /bin/iptables -t mangle -A FORWARD -i br0 -p tcp -j urlblock_fwd
CMD: /bin/iptables -t mangle -A POSTROUTING -p tcp -j urlblock_post
CMD: /bin/iptables -t mangle -A POSTROUTING -p udp -j voip_remarking
CMD: /bin/ip6tables -t mangle -A FORWARD -i br0 -p tcp -j urlblock_fwd
CMD: /bin/ip6tables -t mangle -A POSTROUTING -p tcp -j urlblock_post
CMD: /bin/ip6tables -t mangle -A POSTROUTING -p udp -j voip_remarking
ip6tables v1.4.18: Couldn't load target `voip_remarking':No such file or directory
Try `ip6tables -h' or 'ip6tables --help' for more information.
CMD: /bin/iptables -N portfw
CMD: /bin/iptables -A FORWARD -j portfw
CMD: /bin/iptables -t nat -N portfw
CMD: /bin/iptables -t nat -A PREROUTING -j portfw
CMD: /bin/iptables -t nat -N portfwPreNatLB
CMD: /bin/iptables -t nat -A PREROUTING -j portfwPreNatLB
CMD: /bin/iptables -t nat -N portfwPostNatLB
CMD: /bin/iptables -t nat -A POSTROUTING -j portfwPostNatLB
CMD: /bin/iptables -F portfw
CMD: /bin/iptables -t nat -F portfw
CMD: /bin/iptables -t nat -F portfwPreNatLB
CMD: /bin/iptables -t nat -F portfwPostNatLB
CMD: /bin/iptables -t nat -A portfw ! -i br0 -m mark --mark 0x1000 -j RETURN
CMD: /bin/iptables -N ipfilter
CMD: /bin/iptables -A FORWARD -j ipfilter
CMD: /bin/iptables -F ipfilter
CMD: /bin/iptables -A ipfilter ! -i br+ ! -o br+ -j DROP
CMD: /bin/iptables -A ipfilter -d 224.0.0.0/4 -j RETURN
CMD: /bin/iptables -A ipfilter -m state --state ESTABLISHED,RELATED -j RETURN
CMD: /bin/ethctl conntrack killall
CMD: /bin/iptables -N parental_ctrl
CMD: /bin/iptables -A FORWARD -j parental_ctrl
CMD: /bin/iptables -t nat -N dmzPreNatLB
CMD: /bin/iptables -t nat -A PREROUTING -j dmzPreNatLB
CMD: /bin/iptables -t nat -N dmzPostNatLB
CMD: /bin/iptables -t nat -A POSTROUTING -j dmzPostNatLB
CMD: /bin/iptables -N dmz
CMD: /bin/iptables -t nat -N dmz
CMD: /bin/iptables -F dmz
CMD: /bin/iptables -t nat -F dmz
CMD: /bin/iptables -t nat -F dmzPreNatLB
CMD: /bin/iptables -t nat -F dmzPostNatLB
CMD: /bin/iptables -A ipfilter -j dmz
CMD: /bin/iptables -t nat -A PREROUTING -j dmz
CMD: /bin/iptables -A ipfilter ! -i br+ -j DROP
CMD: /bin/ebtables -N macfilter_forward
CMD: /bin/ebtables -N macfilter_local_in
CMD: /bin/ebtables -N macfilter_local_out
CMD: /bin/iptables -N macfilter_forward
CMD: /bin/ebtables -F macfilter_forward
CMD: /bin/ebtables -F macfilter_local_in
CMD: /bi[ 16.740000] 0
n/ebtables -F macfilter_local_out
CMD: /bin/iptables -F macfilter_forward
/bin/ebtables -P macfilter_forward RETURN
/bin/ebtables -P macfilter_local_in RETURN
/bin/ebtables -P macfilter_local_out RETURN
CMD: /bin/echo 2 > /proc[ 16.760000] 0
/fastbridge
sh: can't create /proc/fastbridge: nonexistent directory
CMD: /bin/ebtables -I INPUT -j macfilter_local_in
CMD: /bin/ebtables -A OUTPUT -j macfilter_local_out
CMD: /bin/ebtables -I FORWARD -j macfilter_forward
CMD: /bin/iptables -A FORWARD -j macfilter_forward
CMD: /bin/ip6tables -P INPUT ACCEPT
CMD: /bin/ip6tables -A INPUT -p icmpv6 --icmpv6-type router-solicitation -j ACCEPT
CMD: /bin/ip6tables -A INPUT -p icmpv6 --icmpv6-type router-advertisement -j ACCEPT
CMD: /bin/ip6tables -A INPUT -p icmpv6 --icmpv6-type neighbour-solicitation -j ACCEPT
CMD: /bin/ip6tables -A INPUT -p icmpv6 --icmpv6-type neighbour-advertisement -j ACCEPT
CMD: /bin/ip6tables -A INPUT -p icmpv6 -i br0 -j ACCEPT
CMD: /bin/ip6tables -A INPUT -m state --state NEW -i br0 -j ACCEPT
CMD: /bin/ip6tables -A INPUT -m state --state ESTABLISHED,RELATED -j ACCEPT
CMD: /bin/ip6tables -A INPUT -p udp --dport 546 -j ACCEPT
CMD: /bin/ip6tables -A INPUT ! -i br0 -p udp --dport 547 -j ACCEPT
CMD: /bin/ip6tables -N ipv6filter
CMD: /bin/ip6tables -A FORWARD -j ipv6filter
Restart IPv6 Filter!
CMD: /bin/ip6tables -F ipv6filter
Update Firewall rule set by user.
CMD: /bin/ethctl conntrack killall
CMD: /bin/ethctl conntrack killall
CMD: /bin/ip6tables -A ipv6filter -m state --state ESTABLISHED,RELATED -j RETURN
CMD: /bin/ip6tables -A ipv6filter ! -i br+ -j DROP
CMD: /bin/iptables -N vpnPassThrough
CMD: /bin/iptables -A FORWARD -j vpnPassThrough
CMD: /bin/iptables -N tr247_multicast
CMD: /bin/iptables -I OUTPUT -j tr247_multicast
CMD: /bin/ebtables -N GPON_PPTP_PORT_SERVICE
CMD: /bin/ebtables -P GPON_PPTP_PORT_SERVICE RETURN
CMD: /bin/ebtables -A GPON_PPTP_PORT_SERVICE -p ipv4 --ip-proto udp --ip-dport 67:68 -j DROP
CMD: /bin/ebtables -A GPON_PPTP_PORT_SERVICE -p ipv4 --ip-proto 2 -j DROP
CMD: /bin/ebtables -A GPON_PPTP_PORT_SERVICE -p ipv6 --ip6-proto udp --ip6-dport 546:547 -j DROP
CMD: /bin/ebtables -A GPON_PPTP_PORT_SERVICE -p ipv6 --ip6-proto ipv6-icmp --ip6-icmp-type 130:134 -j DROP
CMD: /bin/ebtables -N GPON_PPTP_PORT_FORWARD
CMD: /bin/ebtables -P GPON_PPTP_PORT_FORWARD DROP
CMD: /bin/ebtables -A GPON_PPTP_PORT_FORWARD -d 01:80:C2:00:00:00/FF:FF:FF:00:00:00 -j RETURN
CMD: /bin/ebtables -A GPON_PPTP_PORT_FORWARD -i nas+ -j RETURN
CMD: /bin/ebtables -N GPON_PPTP_PORT_INPUT_TBL
CMD: /bin/ebtables -P GPON_PPTP_PORT_INPUT_TBL RETURN
CMD: /bin/ebtables -I INPUT -j GPON_PPTP_PORT_INPUT_TBL
CMD: /bin/ebtables -N GPON_PPTP_PORT_OUTPUT_TBL
CMD: /bin/ebtables -P GPON_PPTP_PORT_OUTPUT_TBL RETURN
CMD: /bin/ebtables -I OUTPUT -j GPON_PPTP_PORT_OUTPUT_TBL
CMD: /bin/ebtables -N GPON_PPTP_PORT_FORWARD_TBL
CMD: /bin/ebtables -P GPON_PPTP_PORT_FORWARD_TBL RETURN
CMD: /bin/ebtables -I FORWARD -j GPON_PPTP_PORT_FORWARD_TBL
CMD: /bin/sh -c echo rx_save_int_prio_to_skb 1 > /proc/rtl8686gmac/misc
CMD: /bin/sh -c echo 192 > /proc/sys/net/core/netdev_hi_priomask
CMD: /bin/sh -c /bin/smuxctl --if nas0 --rx --tags 1 --rule-remove-alias iptv_mvlan_nas0_0+
CMD: /bin/sh -c /bin/smuxctl --if nas0_0 --rx --tags 1 --rule-remove-alias iptv_mvlan_nas0_0+
CMD: /bin/sh -c /bin/smuxctl --if nas0 --rx --tags 1 --filter-vid 1024 1 --filter-multicast --set-rxif nas0_0 --target ACCEPT --rule-priority 950 --rule-alias iptv_mvlan_nas0_0 --rule-insert
CMD: /bin/sh -c /bin/smuxctl --if nas0_0 --rx --tags 1 --filter-vid 1024 1 --filter-multicast --set-vid 1024 1 --rule-priority 950 --rule-alias iptv_mvlan_nas0_0 --rule-insert
CMD: /bin/sh -c /bin/smuxctl --if nas0 --rx --tags 2 --rule-remove-alias iptv_mvlan_nas0_0+
CMD: /bin/sh -c /bin/smuxctl --if nas0_0 --rx --tags 2 --rule-remove-alias iptv_mvlan_nas0_0+
CMD: /bin/sh -c /bin/smuxctl --if nas0 --rx --tags 2 --filter-vid 1024 2 --filter-multicast --set-rxif nas0_0 --target ACCEPT --rule-priority 950 --rule-alias iptv_mvlan_nas0_0 --rule-insert
CMD: /bin/sh -c /bin/smuxctl --if nas0_0 --rx --tags 2 --filter-vid 1024 2 --filter-multicast --set-vid 1024 2 --rule-priority 950 --rule-alias iptv_mvlan_nas0_0 --rule-insert
CMD: /bin/sh -c /bin/smuxctl --if nas0 --rx --tags 3 --rule-remove-alias iptv_mvlan_nas0_0+
CMD: /bin/sh -c /bin/smuxctl --if nas0_0 --rx --tags 3 --rule-remove-alias iptv_mvlan_nas0_0+
CMD: /bin/sh -c /bin/smuxctl --if nas0 --rx --tags 3 --filter-vid 1024 3 --filter-multicast --set-rxif nas0_0 --target ACCEPT --rule-priority 950 --rule-alias iptv_mvlan_nas0_0 --rule-insert
CMD: /bin/sh -c /bin/smuxctl --if nas0_0 --rx --tags 3 --filter-vid 1024 3 --filter-multicast --set-vid 1024 3 --rule-priority 950 --rule-alias iptv_mvlan_nas0_0 --rule-insert
CMD: /bin/sh -c /bin/smuxctl --if nas0 --rx --tags 4 --rule-remove-alias iptv_mvlan_nas0_0+
CMD: /bin/sh -c /bin/smuxctl --if nas0_0 --rx --tags 4 --rule-remove-alias iptv_mvlan_nas0_0+
CMD: /bin/sh -c /bin/smuxctl --if nas0 --rx --tags 4 --filter-vid 1024 4 --filter-multicast --set-rxif nas0_0 --target ACCEPT --rule-priority 950 --rule-alias iptv_mvlan_nas0_0 --rule-insert
CMD: /bin/sh -c /bin/smuxctl --if nas0_0 --rx --tags 4 --filter-vid 1024 4 --filter-multicast --set-vid 1024 4 --rule-priority 950 --rule-alias iptv_mvlan_nas0_0 --rule-inser[ 17.310000] SLIC0 master state check pass!
t
CMD: /bin[ 17.320000] SLIC1 master state check pass!
/sh -c /bin/smux[ 17.320000] [32m[0000012600][DRV][0m SLIC PCM Setup for CH0 ...ctl --if nas0 --rx --tags 1 --rule-remove-alias iptv_mvlan_nas0_1+
CMD: /bin/sh -c /bin/smu
[ 17.340000] [32m[0000012620][ ][0m ProSLIC:PCMStart
xctl --if nas0_1[ 17.340000] [32m[0000012620][DRV][0m OK
--rx --tags 1 --rule-remove-alias iptv_mvlan_nas0_1+
CMD: /bin/sh -c /bin/smuxctl --if nas0 --rx --tags 1 --filter-vid 1030 1 --filter-multicast --set-rxif nas0_1 --target ACCEPT --rule-priority 950 --rule-alias iptv_mvlan_nas0_1 --rule-insert
CMD: /bin/sh -c /bin/smuxctl --if nas0_1 --rx --tags 1 --filter-vid 1030 1 --filt[ 17.380000] [32m[0000012660][DRV][0m Set to LF_FWD_ACTIVE
er-multicast --s[ 17.390000] [32m[0000012670][DRV][0m SLIC PCM Setup for CH1 ...et-vid 1030 1 --rule-priority 950 --rule-alias iptv_mvlan_nas0_1 --rule-insert
CMD: /bin/sh
[ 17.400000] [32m[0000012680][ ][0m ProSLIC:PCMStart
-c /bin/smuxctl[ 17.410000] [32m[0000012680][DRV][0m OK
--if nas0 --rx --tags 2 --rule-remove-alias iptv_mvlan_nas0_1+
CMD: /bin/sh -c /bin/smuxctl --if nas0_1 --rx --tags 2 --rule-remove-alias iptv_mvlan_nas0_1+
CMD: /bin/sh -c /bin/smuxctl --if nas0 --rx --tags 2 --filter-vid 1030 2 --filter-multicast --set-rxif nas0_1 --target ACCEPT --rule-priority 950 --rule-alias iptv_mvla[ 17.440000] [32m[0000012710][DRV][0m Set to LF_FWD_ACTIVE
n_nas0_1 --rule-[ 17.450000] Init OK!
insert
CMD: /bin/sh -c /bin/smuxctl --if nas0_1 --rx --tags 2 --filter-vid 1030 2 --filter-multicast --set-vid 1030 2 --rule-priority 950 --rule-alias iptv_mvlan_nas0_1 --rule-insert
CMD: /bin/sh -c /bin/smuxctl --if nas0 --rx --tags 3 --rule-remove-alias iptv_mvlan_nas0_1+
CMD: /bin/sh -c /bin/smuxctl --if nas0_1 --rx --tags 3 --rule-remove-alias iptv_mvlan_nas0_1+
CMD: /bin/sh -c /bin/smuxctl --if nas0 --rx --tags 3 --filter-vid 1030 3 --filter-multicast --set-rxif nas0_1 --target ACCEPT --rule-priority 950 --rule-alias iptv_mvlan_nas0_1 --rule-insert
CMD: /bin/sh -c /bin/smuxctl --if nas0_1 --rx --tags 3 --filter-vid 1030 3 --filter-multicast --set-vid 1030 3 --rule-priority 950 --rule-alias iptv_mvlan_nas0_1 --rule-insert
CMD: /bin/sh -c /bin/smuxctl --if nas0 --rx --tags 4 --rule-remove-alias iptv_mvlan_nas0_1+
CMD: /bin/sh -c /bin/smuxctl --if nas0_1 --rx --tags 4 --rule-remove-alias iptv_mvlan_nas0_1+
CMD: /bin/sh -c /bin/smuxctl --if nas0 --rx --tags 4 --filter-vid 1030 4 --filter-multicast --set-rxif nas0_1 --target ACCEPT --rule-priority 950 --rule-alias iptv_mvlan_nas0_1 --rule-insert
CMD: /bin/sh -c /bin/smuxctl --if nas0_1 --rx --tags 4 --filter-vid 1030 4 --filter-multicast --set-vid 1030 4 --rule-priority 950 --rule-alias iptv_mvlan_nas0_1 --rule-insert
CMD: /bin/sh -c /bin/smuxctl --if nas0 --rx --tags 1 --rule-remove-alias iptv_mvlan_nas0_2+
CMD: /bin/sh -c /bin/smuxctl --if nas0_2 --rx --tags 1 --rule-remove-alias iptv_mvlan_nas0_2+
CMD: /bin/sh -c /bin/smuxctl --if nas0 --rx --tags 1 --filter-vid 1026 1 --filter-multicast --set-rxif nas0_2 --target ACCEPT --rule-priority 950 --rule-alias iptv_mvlan_nas0_2 --rule-insert
CMD: /bin/sh -c /bin/smuxctl --if nas0_2 --rx --tags 1 --filter-vid 1026 1 --filter-multicast --set-vid 1025 1 --rule-priority 950 --rule-alias iptv_mvlan_nas0_2 --rule-insert
CMD: /bin/sh -c /bin/smuxctl --if nas0 --rx --tags 2 --rule-remove-alias iptv_mvlan_nas0_2+
CMD: /bin/sh -c /bin/smuxctl --if nas0_2 --rx --tags 2 --rule-remove-alias iptv_mvlan_nas0_2+
CMD: /bin/sh -c /bin/smuxctl --if nas0 --rx --tags 2 --filter-vid 1026 2 --filter-multicast --set-rxif nas0_2 --target ACCEPT --rule-priority 950 --rule-alias iptv_mvlan_nas0_2 --rule-insert
CMD: /bin/sh -c /bin/smuxctl --if nas0_2 --rx --tags 2 --filter-vid 1026 2 --filter-multicast --set-vid 1025 2 --rule-priority 950 --rule-alias iptv_mvlan_nas0_2 --rule-insert
CMD: /bin/sh -c /bin/smuxctl --if nas0 --rx --tags 3 --rule-remove-alias iptv_mvlan_nas0_2+
CMD: /bin/sh -c /bin/smuxctl --if nas0_2 --rx --tags 3 --rule-remove-alias iptv_mvlan_nas0_2+
CMD: /bin/sh -c /bin/smuxctl --if nas0 --rx --tags 3 --filter-vid 1026 3 --filter-multicast --set-rxif nas0_2 --target ACCEPT --rule-priority 950 --rule-alias iptv_mvlan_nas0_2 --rule-insert
CMD: /bin/sh -c /bin/smuxctl --if nas0_2 --rx --tags 3 --filter-vid 1026 3 --filter-multicast --set-vid 1025 3 --rule-priority 950 --rule-alias iptv_mvlan_nas0_2 --rule-insert
CMD: /bin/sh -c /bin/smuxctl --if nas0 --rx --tags 4 --rule-remove-alias iptv_mvlan_nas0_2+
CMD: /bin/sh -c /bin/smuxctl --if nas0_2 --rx --tags 4 --rule-remove-alias iptv_mvlan_nas0_2+
CMD: /bin/sh -c /bin/smuxctl --if nas0 --rx --tags 4 --filter-vid 1026 4 --filter-multicast --set-rxif nas0_2 --target ACCEPT --rule-priority 950 --rule-alias iptv_mvlan_nas0_2 --rule-insert
CMD: /bin/sh -c /bin/smuxctl --if nas0_2 --rx --tags 4 --filter-vid 1026 4 --filter-multicast --set-vid 1025 4 --rule-priority 950 --rule-alias iptv_mvlan_nas0_2 --rule-insert
CMD: /bin/sh -c echo 1 > /sys/class/net/br0/bridge/multicast_snooping
CMD: /bin/sh -c echo 2 > /sys/devices/virtual/net/nas0_2/brport/multicast_router
All DSP Software Ready. VoIP Defer Init done.
start watch dog
CMD: /bin/iptables -F vpnPassThrough
CMD: /bin/modprobe -r nf_nat_ipsec
CMD: /bin/iptables -A vpnPassThrough -p udp --dport 1701 -j DROP
CMD: /bin/iptables -A vpnPassThrough -p udp --dport 4500 -j DROP
CMD: /bin/iptables -A vpnPassThrough -p udp --dport 500 -j DROP
CMD: /bin/modprobe -r nf_nat_pptp
CMD: /bin/modprobe -r nf_nat_ftp
CMD: /bin/modprobe -r nf_nat_tftp
CMD: /bin/modprobe -r nf_nat_h323
CMD: /bin/modprobe -r nf_nat_irc
CMD: /bin/modprobe -r nf_nat_rtsp
CMD: /bin/modprobe -r nf_nat_sip
CMD: /bin/ethctl conntrack killall
CMD: /bin/sh -c echo 1 > /sys/class/net/br0/bridge/multicast_snooping
CMD: /bin/sh -c echo 2 > /sys/devices/virtual/net/nas0_2/brport/multicast_router
checkDefaultSSIDAndWPAKey
checkDefaultSSIDAndWPAKey
CMD: /bin/iwpriv wlan0 set_mib mp_specific=0
CMD: /bin/iwpriv wlan0 set_mib regdomain=1
CMD: /bin/iwpriv wlan0 set_mib led_type=7
CMD: /bin/iwpriv wlan0 set_mib ssid=PLDTHOMEFIBR53589
CMD: /bin/iwpriv wlan0 set_mib opmode=16
CMD: /bin/iwpriv wlan0 set_mib phyBandSelect=2
CMD: /bin/iwpriv wlan0 set_mib pwrlevel_TSSICCK_A=0000000000000000000000000000
CMD: /bin/iwpriv wlan0 set_mib pwrlevel_TSSICCK_B=0000000000000000000000000000
CMD: /bin/iwpriv wlan0 set_mib pwrlevel_TSSIHT40_1S_A=0000000000000000000000000000
CMD: /bin/iwpriv wlan0 set_mib pwrlevel_TSSIHT40_1S_B=0000000000000000000000000000
CMD: /bin/iwpriv wlan0 set_mib tssi_enable=1
CMD: /bin/iwpriv wlan0 set_mib ther=29
CMD: /bin/iwpriv wlan0 set_mib thermal1=29
CMD: /bin/iwpriv wlan0 set_mib thermal2=28
CMD: /bin/iwpriv wlan0 set_mib xcap=100
CMD: /bin/iwpriv wlan0 set_mib countrycode=1
CMD: /bin/iwpriv wlan0 set_mib countrystr=US
CMD: /bin/iwpriv wlan0 set_mib pwrlevel5GHT40_1S_A=000000000000000000000000000000000000000000000000000000000000000000000060606060605e5e5e5e5e5e5e5e5e5e5e5e5e5e5e5e60606060606060606060606060606060606060606060606060606060606060606060606060606060606060606060606060606060606060605e5e5e5e5e5e5e5e5e5e5e5e5e5e5e5e5e5e5e5e5e5e5e5e60606060606060605b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b585858585858585800000000000000000000000000000000000000
CMD: /bin/iwpriv wlan0 set_mib pwrlevel5GHT40_1S_B=00000000000000000000000000000000000000000000000000000000000000000000005a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5c5c5c5c5c5c5c5c59595959595959595b5b5b5b5b5b5b5b5d5d5d5d5d5d5d5d60606060606060605c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5a5a5a5a5a5a5a5a5e5e5e5e5e5e5e5e00000000000000000000000000000000000000
CMD: /bin/iwpriv wlan0 set_mib pwrlevel_TSSI5GHT40_1S_A=00000000000000000000000000000000000000000000000000000000000000000000000404040404080808080808080809090909090909090000000000000000080808080808080808080808080808080808080808080808080808080808080808080808080808080e0e0e0e0e0e0e0e0d0d0d0d0d0d0d0d0c0c0c0c0c0c0c0c0b0b0b0b0b0b0b0b08080808080808080a0a0a0a0a0a0a0a0a090909090909090908080808080808080a0a0a0a0a0a0a0a00000000000000000000000000000000000000
CMD: /bin/iwpriv wlan0 set_mib pwrlevel_TSSI5GHT40_1S_B=000000000000000000000000000000000000000000000000000000000000000000000000000000000505050505050505080808080808080805050505050505050e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e1414141414141414141414141414141411111111111111110f0f0f0f0f0f0f0f141414141414141414101010101010101015151515151515150c0c0c0c0c0c0c0c00000000000000000000000000000000000000
CMD: /bin/iwpriv wlan0 set_mib pwrlevel_TSSI5GHT40_1S_A=00000000000000000000000000000000000000000000000000000000000000000000000404040404080808080808080809090909090909090000000000000000080808080808080808080808080808080808080808080808080808080808080808080808080808080e0e0e0e0e0e0e0e0d0d0d0d0d0d0d0d0c0c0c0c0c0c0c0c0b0b0b0b0b0b0b0b08080808080808080a0a0a0a0a0a0a0a0a090909090909090908080808080808080a0a0a0a0a0a0a0a00000000000000000000000000000000000000 Entering released state
CMD: /bin/iwpriv wlan0 set_mib pwrlevel_TSSI5GHT40_1S_B=000000000000000000000000000000000000000000000000000000000000000000000000000000000505050505050505080808080808080805050505050505050e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e0e1414141414141414141414141414141411111111111111110f0f0f0f0f0f0f0f141414141414141414101010101010101015151515151515150c0c0c0c0c0c0c0c00000000000000000000000000000000000000
CMD: /bin/iwpriv wlan0 set_mib pwrlevel_TSSI5GHT40_1S_C=00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000
CMD: /bin/iwpriv wlan0 set_mib pwrlevel_TSSI5GHT40_1S_D=00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000
CMD: /bin/iwpriv wlan0 set_mib is_5g_pdk_patha_ok=0
Interface doesn't accept private ioctl...
89F1: Operation not permitted
CMD: /bin/iwpriv wlan0 set_mib is_5g_pdk_pathb_ok=0
Interface doesn't accept private ioctl...
89F1: Operation not permitted
CMD: /bin/iwpriv wlan0 set_mib bcnint=100
CMD: /bin/iwpriv wlan0 set_mib channel=0
CMD: /bin/iwpriv wlan0 set_mib autoch_timeout=0
CMD: /bin/iwpriv wlan0 set_mib autoch_diff_pkt=0
CMD: /bin/iwpriv wlan0 set_mib autoch_3664157_enable=0
CMD: /bin/iwpriv wlan0 set_mib basicrates=496
CMD: /bin/iwpriv wlan0 set_mib oprates=4095
CMD: /bin/iwpriv wlan0 set_mib autorate=1
CMD: /bin/iwpriv wlan0 set_mib rtsthres=2347
CMD: /bin/iwpriv wlan0 set_mib fragthres=2346
CMD: /bin/iwpriv wlan0 set_mib expired_time=30000
CMD: /bin/iwpriv wlan0 set_mib preamble=0
CMD: /bin/iwpriv wlan0 set_mib hiddenAP=0
CMD: /bin/iwpriv wlan0 set_mib dtimperiod=1
C[ 18.340000] device wlan0 entered promiscuous mode
MD: /bin/iwpriv wlan0 set_mib txbf=1
CMD: /bin/iwpriv wlan0 set_mib txbf_mu=0
CMD: /bi[ 18.360000] chip_version=0x2001,WlanSupportAbility = 0x3
n/iwpriv wlan0 set_mib mc2u_disable=0
CMD: /bin/iwpriv wlan0 set_mib aclnum=0
CMD: /bin/iwpriv wlan0 set_mib aclmode=0
CMD: /bin/iwpriv wlan0 set_mib stactrl_enable=1
CMD: /bin/iwpriv wlan0 set_mib stactrl_rssi_th_high=50
Interface doesn't accept private ioctl...
89F1: Operation not permitted
CMD: /bin/iwpriv wlan0 set_mib stactrl_rssi_th_low=30
Interface doesn't accept private ioctl...
89F1: Operation not permitted
CMD: /bin/iwpriv wlan0 set_mib stactrl_ch_util_th=204
Interface doesn't accept private ioctl...
89F1: Operation not permitted
CMD: /bin/iwpriv wlan0 set_mib stactrl_steer_detect=10
Interface doesn't accept private ioctl...
89F1: Operation not permitted
CMD: /bin/iwpriv wlan0 set_mib stactrl_sta_load_th_2g=75
Interface doesn't accept private ioctl...
89F1: Operation not permitted
CMD: /bin/iwpriv wlan0 set_mib stactrl_prefer_band=1
CMD: /bin/ebtables -F wlan_block
CMD: /bin/iwpriv wlan0 set_mib wsc_enable=0
CMD: /bin/iwpriv wlan0 set_mib authtype=2
CMD: /bin/iwpriv wlan0 set_mib wpa_cipher=0
CMD: /bin/iwpriv wlan0 set_mib wpa2_cipher=8
CMD: /bin/iwpriv wlan0 set_mib psk_enable=2
CMD: /bin/iwpriv wlan0 set_mib passphrase=51-3|Lj%090+
CMD: /bin/iwpriv wlan0 set_mib gk_rekey=86400
CMD: /bin/iwpriv wlan0 set_mib dot11IEEE80211W=0
CMD: /bin/iwpriv wlan0 set_mib enableSHA256=0
CMD: /bin/iwpriv wlan0 set_mib encmode=2
CMD: /bin/iwpriv wlan0 set_mib rm_activated=1
CMD: /bin/iwpriv wlan0 set_mib rm_link_measure=1
CMD: /bin/iwpriv wlan0 set_mib rm_beacon_passive=1
CMD: /bin/iwpriv wlan0 set_mib rm_beacon_active=1
CMD: /bin/iwpriv wlan0 set_mib rm_beacon_table=1
CMD: /bin/iwpriv wlan0 set_mib [ 18.520000] eric-8822 [ODM_software_init][15466]
rm_neighbor_repo[ 18.520000] clock 25MHz
rt=1
CMD: /[ 18.530000] [TRACE]pre_init_system_cfg_8812f ===>
bin/iwpriv wlan0[ 18.530000] [TRACE]set_hw_value_88xx ===>
set_mib rm_ap_c[ 18.540000] [TRACE]set_hw_value_88xx <===
hannel_report=1 [ 18.550000] [TRACE]pre_init_system_cfg_8812f <===
CMD: /bin/d[ 18.550000] [TRACE]mac_pwr_switch_pcie_8812f ===>
ot11k_deamon -i [ 18.560000] [TRACE]pwr = 1
wlan0
CMD: [ 18.560000] [TRACE]8812F pwr seq ver = V02
/bin/iwpriv wlan[ 18.570000] [TRACE]mac_pwr_switch_pcie_8812f <===
0 set_mib BssTra[ 18.580000] InitPON OK!!!
nsEnable=1
[ 18.580000] [TRACE]init_system_cfg_8812f ===>
CMD: /bin/iwpriv[ 18.590000] [TRACE]init_system_cfg_8812f <===
wlan0 set_mib m[ 18.590000] InitMAC Page0
ultiap_bss_type=[ 18.600000] [TRACE]download_firmware_88xx ===>
0
CMD: /bin[ 18.600000] [TRACE]halmac h2c ver = f, fw h2c ver = e!!
/iwpriv wlan0 set_mib a4_enable=0
CMD: /bin/iwpriv wlan0 set_mib multiap_mo[ 18.620000] [TRACE]=== FW info ===
nitor_mode_disab[ 18.620000] [TRACE]ver : 3
le=1
CMD: /[ 18.620000] [TRACE]sub-ver : 6
bin/iwpriv wlan0[ 18.630000] [TRACE]sub-idx : 0
set_mib 802_1x=[ 18.630000] [TRACE]build : 2020/0/24 14:39
1
CMD: /bin[ 18.640000] [TRACE]Dlfw OK, enable CPU
/iwpriv wlan0 se[ 18.650000] [TRACE]0x80=0xC078, cnt=5000
t_mib band=76
[ 18.650000] [TRACE]download_firmware_88xx <===
CMD: /bin/iwp[ 18.660000] >>SetBeaconDownload88XX
riv wlan0 set_mi[ 18.660000] Init Download FW OK
b deny_legacy=0 [ 18.670000] [TRACE]cfg_la_mode_88xx ===>
CMD: /bin/i[ 18.670000] [TRACE]cfg_la_mode_88xx <===
wpriv wlan0 set_[ 18.680000] [TRACE]init_mac_cfg_88xx ===>
mib lgyEncRstrct[ 18.680000] [TRACE]init_trx_cfg_8812f ===>
=15
CMD: /b[ 18.690000] [TRACE]rqpn_parser_88xx done
in/iwpriv wlan0 [ 18.700000] [TRACE]pg_num_parser_88xx done
set_mib wifi_spe[ 18.700000] [TRACE]Set FIFO page
cific=2
CMD[ 18.710000] [TRACE]h2c fs : 1024
: /bin/iwpriv wl[ 18.710000] [TRACE]init_trx_cfg_8812f <===
an0 set_mib cts2[ 18.720000] [TRACE]init_protocol_cfg_8812f ===>
self=1
CMD:[ 18.720000] [TRACE]init_protocol_cfg_8812f <===
/bin/iwpriv wla[ 18.730000] [TRACE]init_edca_cfg_8812f ===>
n0 set_mib disab[ 18.740000] [TRACE]init_edca_cfg_8812f <===
le_protection=1 [ 18.740000] [TRACE]init_wmac_cfg_8812f ===>
CMD: /bin/i[ 18.750000] [TRACE]init_low_pwr_8812f ===>
wpriv wlan0 set_[ 18.750000] [TRACE]init_low_pwr_8812f <===
mib block_relay=[ 18.760000] [TRACE]init_wmac_cfg_8812f <===
0
CMD: /bin[ 18.770000] [TRACE]init_mac_cfg_88xx <===
/iwpriv wlan0 se[ 18.770000] halmac_init_mac_cfg OK
t_mib qos_enable[ 18.780000] halmac_cfg_rx_aggregation OK
=1
CMD: /bi[ 18.780000] [TRACE]cfg_mac_addr_88xx ===>
n/iwpriv wlan0 s[ 18.790000] [TRACE]cfg_mac_addr_88xx <===
et_mib apsd_enab[ 18.790000] halmac_init_mac_cfg OK
le=0
CMD: /[ 18.800000] [TRACE]cfg_drv_info_8812f ===>
bin/iwpriv wlan0[ 18.800000] [TRACE]drv info = 1
set_mib use40M=[ 18.810000] [TRACE]set_hw_value_8812f ===>
2
CMD: /bin[ 18.820000] [TRACE]set_hw_value_88xx ===>
/iwpriv wlan0 se[ 18.820000] [TRACE]cfg_rx_ignore_8812f ===>
t_mib 2ndchoffse[ 18.830000] [TRACE]cfg_rx_ignore_8812f <===
t=1
CMD: /b[ 18.830000] [TRACE]set_hw_value_8812f <===
in/iwpriv wlan0 [ 18.840000] [TRACE]cfg_drv_info_8812f <===
set_mib coexist=[ 18.850000] [GetHwReg88XX][size PHY_REG_PG_8812Fmp_Type0]
0
CMD: /bin[ 18.850000] [GetHwReg88XX][PHY_REG_PG_8812Fmp_Type0]
/iwpriv wlan0 set_mib shortGI20M[ 18.860000]
[ 18.860000] >>manual_dfs_regdomain:1
[ 18.860000]
=1
CMD: /bi[ 18.870000]
[ 18.870000] >>dfs VERSION_8812f~
n/iwpriv wlan0 set_mib shortGI40M=1
CMD: /bin/iwpriv wlan0 set_mib shortGI80M=1
CMD: /bin/iwpriv wlan0 set_mib ampdu=1
CMD: /bin/iwpriv wlan0 set_mib amsdu=2
CMD: /bin/iwpriv wlan0 set_mib vap_enable=1
CMD: /bin/brctl addif br0 wlan0
CMD: /bin/iwpriv wlan0 set_mib func_off=0
CMD: /bin/ifconfig wlan0 up
[ 19.410000] start_addr=(0x20000), end_addr=(0x40000), buffer_size=(0x20000), smp_number_max=(16384)
[ 19.420000] [set_8812F_trx_regs] +++
[ 19.620000] br0: port 6(wlan0) entered forwarding state
[ 19.630000] br0: port 6(wlan0) entered forwarding state
[ 19.640000] IPv6: ADDRCONF(NETDEV_CHANGE): br0: link becomes ready
CMD: /bin/iwpriv wlan0-vap0 set_mib ssid=PLDTHOMEFIBR53589_ap1
CMD: /bin/iwpriv wlan0-vap0 set_mib rtsthres=2347
CMD: /bin/iwpriv wlan0-vap0 set_mib fragthres=2346
CMD: /bin/iwpriv wlan0-vap0 set_mib aclnum=0
CMD: /bin/iwpriv wlan0-vap0 set_mib aclmode=0
CMD: /bin/ebtables -F wlan_block
CMD: /bin/iwpriv wlan0-vap0 set_mib authtype=2
CMD: /bin/iwpriv wlan0-vap0 set_mib band=76
CMD: /bin/iwpriv wlan0-vap0 set_mib autorate=1
CMD: /bin/iwpriv wlan0-vap0 set_mib hiddenAP=0
CMD: /bin/iwpriv wlan0-vap0 set_mib qos_enable=1
CMD: /bin/iwpriv wlan0-vap0 set_mib block_relay=0
CMD: /bin/iwpriv wlan0-vap0 set_mib deny_legacy=0
CMD: /bin/iwpriv wlan0-vap0 set_mib wpa_cipher=0
CMD: /bin/iwpriv wlan0-vap0 set_mib wpa2_cipher=8
CMD: /bin/iwpriv wlan0-vap0 set_mib psk_enable=2
CMD: /bin/iwpriv wlan0-vap0 set_mib passphrase=PLDTWIFI42QMK
CMD: /bin/iwpriv wlan0-vap0 set_mib gk_rekey=86400
CMD: /bin/iwpriv wlan0-vap0 set_mib dot11IEEE80211W=0
CMD: /bin/iwpriv wlan0-vap0 set_mib enableSHA256=0
CMD: /bin/iwpriv wlan0-vap0 set_mib encmode=2
CMD: /bin/iwpriv wlan0-vap0 set_mib rm_activated=0
CMD: /bin/iwpriv wlan0-vap0 set_mib BssTransEnable=0
CMD: /bin/iwpriv wlan0-vap0 set_mib multiap_bss_type=0
CMD: /bin/iwpriv wlan0-vap0 set_mib a4_enable=0
CMD: /bin/iwpriv wlan0-vap0 set_mib multiap_monitor_mode_disable=1
CMD: /bin/iwpriv wlan0-vap0 set_mib 802_1x=1
CMD: /bin/iwpriv wlan0-vap0 set_mib lgyEncRstrct=15
CMD: /bin/iwpriv wlan0-vap0 set_mib wifi_specific=2
CMD: /bin/iwpriv wlan0-vap0 set_mib disable_protection=1
CMD: /bin/iwpriv wlan0-vap0 set_mib use40M=2
CMD: /bin/iwpriv wlan0-vap0 set_mib 2ndchoffset=1
CMD: /bin/iwpriv wlan0-vap0 set_mib coexist=0
CMD: /bin/iwpriv wlan0-vap0 set_mib shortGI20M=1
CMD: /bin/iwpriv wlan0-vap0 set_mib shortGI40M=1
CMD: /bin/iwpriv wlan0-vap0 set_mib shortGI80M=1
CMD: /bin/iwpriv wlan0-vap0 set_mib ampdu=1
CMD: /bin/iwpriv wlan0-vap0 set_mib amsdu=2
CMD: /bin/iwpriv wlan0-vap1 set_mib ssid=PLDTHOMEFIBR53589_ap2
CMD: /bin/iwpriv wlan0-vap1 set_mib rtsthres=2347
CMD: /bin/iwpriv wlan0-vap1 set_mib fragthres=2346
CMD: /bin/iwpriv wlan0-vap1 set_mib aclnum=0
CMD: /bin/iwpriv wlan0-vap1 set_mib aclmode=0
CMD: /bin/ebtables -F wlan_block
CMD: /bin/iwpriv wlan0-vap1 set_mib authtype=2
CMD: /bin/iwpriv wlan0-vap1 set_mib band=76
CMD: /bin/iwpriv wlan0-vap1 set_mib autorate=1
CMD: /bin/iwpriv wlan0-vap1 set_mib hiddenAP=0
CMD: /bin/iwpriv wlan0-vap1 set_mib qos_enable=1
CMD: /bin/iwpriv wlan0-vap1 set_mib block_relay=0
CMD: /bin/iwpriv wlan0-vap1 set_mib deny_legacy=0
CMD: /bin/iwpriv wlan0-vap1 set_mib wpa_cipher=0
CMD: /bin/iwpriv wlan0-vap1 set_mib wpa2_cipher=8
CMD: /bin/iwpriv wlan0-vap1 set_mib psk_enable=2
CMD: /bin/iwpriv wlan0-vap1 set_mib passphrase=PLDTWIFI42QMK
CMD: /bin/iwpriv wlan0-vap1 set_mib gk_rekey=86400
CMD: /bin/iwpriv wlan0-vap1 set_mib dot11IEEE80211W=0
CMD: /bin/iwpriv wlan0-vap1 set_mib enableSHA256=0
CMD: /bin/iwpriv wlan0-vap1 set_mib encmode=2
CMD: /bin/iwpriv wlan0-vap1 set_mib rm_activated=0
CMD: /bin/iwpriv wlan0-vap1 set_mib BssTransEnable=0
CMD: /bin/iwpriv wlan0-vap1 set_mib multiap_bss_type=0
CMD: /bin/iwpriv wlan0-vap1 set_mib a4_enable=0
CMD: /bin/iwpriv wlan0-vap1 set_mib multiap_monitor_mode_disable=1
CMD: /bin/iwpriv wlan0-vap1 set_mib 802_1x=1
CMD: /bin/iwpriv wlan0-vap1 set_mib lgyEncRstrct=15
CMD: /bin/iwpriv wlan0-vap1 set_mib wifi_specific=2
CMD: /bin/iwpriv wlan0-vap1 set_mib disable_protection=1
CMD: /bin/iwpriv wlan0-vap1 set_mib use40M=2
CMD: /bin/iwpriv wlan0-vap1 set_mib 2ndchoffset=1
CMD: /bin/iwpriv wlan0-vap1 set_mib coexist=0
CMD: /bin/iwpriv wlan0-vap1 set_mib shortGI20M=1
CMD: /bin/iwpriv wlan0-vap1 set_mib shortGI40M=1
CMD: /bin/iwpriv wlan0-vap1 set_mib shortGI80M=1
CMD: /bin/iwpriv wlan0-vap1 set_mib ampdu=1
CMD: /bin/iwpriv wlan0-vap1 set_mib amsdu=2
CMD: /bin/iwpriv wlan0-vap2 set_mib ssid=PLDTHOMEFIBR53589_ap3
CMD: /bin/iwpriv wlan0-vap2 set_mib rtsthres=2347
CMD: /bin/iwpriv wlan0-vap2 set_mib fragthres=2346
CMD: /bin/iwpriv wlan0-vap2 set_mib aclnum=0
CMD: /bin/iwpriv wlan0-vap2 set_mib aclmode=0
CMD: /bin/ebtables -F wlan_block
CMD: /bin/iwpriv wlan0-vap2 set_mib authtype=2
CMD: /bin/iwpriv wlan0-vap2 set_mib band=76
CMD: /bin/iwpriv wlan0-vap2 set_mib autorate=1
CMD: /bin/iwpriv wlan0-vap2 set_mib hiddenAP=0
CMD: /bin/iwpriv wlan0-vap2 set_mib qos_enable=1
CMD: /bin/iwpriv wlan0-vap2 set_mib block_relay=0
CMD: /bin/iwpriv wlan0-vap2 set_mib deny_legacy=0
CMD: /bin/iwpriv wlan0-vap2 set_mib wpa_cipher=0
CMD: /bin/iwpriv wlan0-vap2 set_mib wpa2_cipher=8
CMD: /bin/iwpriv wlan0-vap2 set_mib psk_enable=2
CMD: /bin/iwpriv wlan0-vap2 set_mib passphrase=PLDTWIFI42QMK
CMD: /bin/iwpriv wlan0-vap2 set_mib gk_rekey=86400
CMD: /bin/iwpriv wlan0-vap2 set_mib dot11IEEE80211W=0
CMD: /bin/iwpriv wlan0-vap2 set_mib enableSHA256=0
CMD: /bin/iwpriv wlan0-vap2 set_mib encmode=2
CMD: /bin/iwpriv wlan0-vap2 set_mib rm_activated=0
CMD: /bin/iwpriv wlan0-vap2 set_mib BssTransEnable=0
CMD: /bin/iwpriv wlan0-vap2 set_mib multiap_bss_type=0
CMD: /bin/iwpriv wlan0-vap2 set_mib a4_enable=0
CMD: /bin/iwpriv wlan0-vap2 set_mib multiap_monitor_mode_disable=1
CMD: /bin/iwpriv wlan0-vap2 set_mib 802_1x=1
CMD: /bin/iwpriv wlan0-vap2 set_mib lgyEncRstrct=15
CMD: /bin/iwpriv wlan0-vap2 set_mib wifi_specific=2
launch /bin/VoIP_maserati at 20
CMD: /bin/iwpriv wlan0-vap2 set_mib disable_protection=1
CMD: /bin/iwpriv wlan0-vap2 set_mib use40M=2
CMD: /bin/iwpriv wlan0-vap2 set_mib 2ndchoffset=1
CMD: /bin/iwpriv wlan0-vap2 set_mib coexist=0
CMD: /bin/iwpriv wlan0-vap2 set_mib shortGI20M=1
CMD: /bin/iwpriv wlan0-vap2 set_mib shortGI40M=1
CMD: /bin/iwpriv wlan0-vap2 set_mib shortGI80M=1
CMD: /bin/iwpriv wlan0-vap2 set_mib ampdu=1
CMD: /bin/iwpriv wlan0-vap2 set_mib amsdu=2
CMD: /bin/iwpriv wlan1 set_mib mp_specific=0
CMD: /bin/iwpriv wlan1 set_mib regdomain=1
CMD: /bin/iwpriv wlan1 set_mib led_type=7
CMD: /bin/iwpriv wlan1 set_mib ssid=PLDTHOMEFIBR53589
CMD: /bin/iwpriv wlan1 set_mib opmode=16
CMD: /bin/iwpriv wlan1 set_mib phyBandSelect=1
CMD: /bin/iwpriv wlan1 set_mib pwrlevelCCK_A=2a2a2a2b2b2b2b2b2b2b2b2b2b2b
CMD: /bin/iwpriv wlan1 set_mib pwrlevelCCK_B=2d2d2d2d2d2d2d2d2d2d2d2d2d2d
CMD: /bin/iwpriv wlan1 set_mib pwrlevel_TSSICCK_A=0000000000000000000000000000
CMD: /bin/iwpriv wlan1 set_mib pwrlevel_TSSICCK_B=0000000000000000000000000000
CMD: /bin/iwpriv wlan1 set_mib pwrlevelHT40_1S_A=2d2d2d2d2d2d2d2d2d2d2d2d2d2d
CMD: /bin/iwpriv wlan1 set_mib pwrlevelHT40_1S_B=2d2d2d2d2d2d2d2d2d2d2d2d2d2d
CMD: /bin/iwpriv wlan1 set_mib pwrlevel_TSSIHT40_1S_A=0000000000000000000000000000
CMD: /bin/iwpriv wlan1 set_mib pwrlevel_TSSIHT40_1S_B=0000000000000000000000000000
CMD: /bin/iwpriv wlan1 set_mib pwrdiffHT40_2S=0000000000000000000000000000
CMD: /bin/iwpriv wlan1 set_mib pwrdiffHT20=0000000000000000000000000000
CMD: /bin/iwpriv wlan1 set_mib pwrdiffOFDM=2121212121212121212121212121
CMD: /bin/iwpriv wlan1 set_mib tssi_enable=0
CMD: /bin/iwpriv wlan1 set_mib ther=35
CMD: /bin/iwpriv wlan1 set_mib thermal1=35
CMD: /bin/iwpriv wlan1 set_mib xcap=32
CMD: /bin/iwpriv wlan1 set_mib countrycode=1
CMD: /bin/iwpriv wlan1 set_mib countrystr=US
voip flash client share size = 15885
waiting voip flash server init...)
voip omci line state share size = 764
codec_suporrt_list 1279
watch dog pipe mode
CMD: /bin/iwpriv wlan1 set_mib bDPPathAOK=1
CMD: /bin/iwpriv wlan1 set_mib bDPPathBOK=1
CMD: /bin/iwpriv wlan1 set_mib pwsf_2g_a=1d1d1d
CMD: /bin/iwpriv wlan1 set_mib pwsf_2g_b=1e1e1e
CMD: /bin/iwpriv wlan1 set_mib lut_2g_even_a0=000db7dc000d97e2000d97e5000da7e8000dc7ea000dffee000e27f1000e4ff2000e57f2000e7ff3000e9ff5000ebff5000f07f7000f37f9000f87fb000fdfff000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800
CMD: /bin/iwpriv wlan1 set_mib lut_2g_even_a1=000dafe7000d97e9000d97ec000dafef000dcff0000e07f3000e3ff7000e5ff7000e6ff7000e87f9000eb7f8000ecff9000f17fa000f37fb000f8ffc000fbfff000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800
CMD: /bin/iwpriv wlan1 set_mib lut_2g_even_a2=000de7ed000dcfef000dbff0000ddff2000df7f2000e37f6000e67f9000e87f8000e97f9000e9ff8000ed7f8000efffa000f2ffa000f5ffc000fa7fd000fdffe000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800
CMD: /bin/iwpriv wlan1 set_mib lut_2g_odd_a0=000da7e0000d9fe5000d97e6000db7e8000dd7ec000e27f1000e37f2000e4ff3000e6ff3000e8ff4000eaff5000edff6000f17f8000f67f9000fbffd00100000000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800 VoIP RCM LOG is ENABLED!!
Reset register status...
CMD: /bin/iwpriv wlan1 set_mib lut_2g_odd_a1=000da7e8000da7eb000da7ee000db7ef000ddff2000e2ff6000e4ff7000e5ff8000e7ff8000e9ff8000ebff9000eeff9000f27fb000f57fc000f9ffe00100000000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800
CMD: /bin/iwpriv wlan1 set_mib lut_2g_odd_a2=000dd7ef000dd7ef000dc7f1000ddff1000dfff3000e57f7000e77f8000e87f8000e9ff8000ebff9000eeff9000f17f9000f3ffa000f87fc000fc7fe00100000000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7[ 20.630000] br0: port 6(wlan0) entered forwarding state
800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800
CMD: /bin/iwpriv wlan1 set_mib lut_2g_even_b0=000d7fd9000d67dd000d5fe1000d77e3000d7fe6000d9fe8000dbfec000e0fef000e37f1000e67f2000e97f3000ec7f5000f0ff7000f37f9000f8ffc000fd7ff000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800
CMD: /bin/iwpriv wlan1 set_mib lut_2g_even_b1=000d77dd000d67e2000d67e6000d7fe7000d8fe9000da7ec000dc7ee000e0ff2000e3ff3000e67f6000e97f6000ec7f8000f17f9000f3ffb000f8ffd000fd000000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800
CMD: /bin/iwpriv wlan1 set_mib lut_2g_even_b2=000d6fe4000d4fe6000d57e8000d6fe9000d87eb000d9fed000dc7f1000e0ff2000e3ff5000e6ff5000e97f7000ed7f8000f0ff9000f3ffa000f97fc000fcfff000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800
CMD: /bin/iwpriv wlan1 set_mib lut_2g_odd_b0=000d77da000d67df000d5fe2000d7fe5000d97e6000dafea000de7ee000e27f1000e57f1000e77f3000eaff4000ee7f7000f17f7000f5ffc000fc7fd00100000000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800
CMD: /bin/iwpriv wlan1 set_mib lut_2g_odd_b1=000d77e1000d5fe3000d6fe7000d7fe8000d9fea000dbfec000de7f0000e2ff2000e57f4000e77f6000eaff6000ee7f8000f1ffa000f5ffc000fbfff00100000000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800
CMD: /bin/iwpriv wlan1 set_mib lut_2g_odd_b2=000d77e4000d57e6000d57e8000d77ea000d97ec000dbfee000de7f1000e2ff3000e57f5000e7ff5000ebff7000ee7f8000f1ffa000f67fc000fbffe00100000000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800
CMD: /bin/iwpriv wlan1 set_mib bcnint=100
CMD: /bin/iwpriv wlan1 set_mib channel=1
CMD: /bin/iwpriv wlan1 set_mib autoch_timeout=0
CMD: /bin/iwpriv wlan1 set_mib autoch_diff_pkt=0
CMD: /bin/iwpriv wlan1 set_mib autoch_1611_enable=0
CMD: /bin/iwpriv wlan1 set_mib basicrates=15
CMD: /bin/iwpriv wlan1 set_mib oprates=4095
CMD: /bin/iwpriv wlan1 set_mib autorate=1
CMD: /bin/iwpriv wlan1 set_mib rtsthres=2347
CMD: /bin/iwpriv wlan1 set_mib fragthres=2346
CMD: /bin/iwpriv wlan1 set_mib expired_time=30000
CMD: /bin/iwpriv wlan1 set_mib preamble=0
CMD: /bin/iwpriv wlan1 set_mib hiddenAP=0
CMD: /bin/iwpriv wlan1 set_mib dtimperiod=1
CMD: /bin/iwpriv wlan1 set_mib txbf=1
CMD: /bin/iwpriv wlan1 set_mib txbf_mu=0
CMD: /bin/iwpriv wlan1 set_mib mc2u_disable=0
CMD: /bin/iwpriv wlan1 set_mib aclnum=0
CMD: /bin/iwpriv wlan1 set_mib aclmode=0
CMD: /bin/iwpriv wlan1 set_mib stactrl_enable=1
CMD: /bin/iwpriv wlan1 set_mib stactrl_rssi_th_high=50
Interface doesn't accept private ioctl...
89F1: Operation not permitted
CMD: /bin/iwpriv wlan1 set_mib stactrl_rssi_th_low=30
Interface doesn't accept private ioctl...
89F1: Operation not permitted
CMD: /bin/iwpriv wlan1 set_mib stactrl_ch_util_th=204
Interface doesn't accept private ioctl...
89F1: Operation not permitted
CMD: /bin/iwpriv wlan1 set_mib stactrl_steer_detect=10
Interface doesn't accept private ioctl...
89F1: Operation not permitted
CMD: /bin/iwpriv wlan1 set_mib stactrl_sta_load_th_2g=75
Interface doesn't accept private ioctl...
89F1: Operation not permitted
CMD: /bin/iwpriv wlan1 set_mib stactrl_prefer_band=0
CMD: /bin/ebtabl[ 21.100000] device wlan1 entered promiscuous mode
es -F wlan_block
CMD: /bin/iwpriv wlan1 set_mib wsc_enable=0
CMD: /bin[ 21.110000] chip_version=0x100c,WlanSupportAbility = 0x7
/iwpriv wlan1 set_mib authtype=2
CMD: /bin/iwpriv wlan1 set_mib wpa_cipher=0
CMD: /bin/iwpriv wlan1 set_mib wpa2_cipher=8
CMD: /bin/iwpriv wlan1 set_mib psk_enable=2
CMD: /bin/iwpriv wlan1 set_mib passphrase=51-3|Lj%090+
CMD: /bin/iwpriv wlan1 set_mib gk_rekey=86400
CMD: /bin/iwpriv wlan1 set_mib dot11IEEE80211W=0
CMD: /bin/iwpriv wlan1 set_mib enableSHA256=0
CMD: /bin/iwpriv wlan1 set_mib encmode=2
CMD: /bin/iwpriv wlan1 set_mib rm_activated=1
CMD: /bin/iwpriv wlan1 set_mib rm_link_measure=1
CMD: /bin/iwpriv wlan1 set_mib rm_beacon_passive=1
CMD: /bin/iwpriv wlan1 set_mib rm_beacon_active=1
CMD: /bin/iwpriv wlan1 set_mib rm_beacon_table=1
CMD: /bin/iwpriv wlan1 set_mib rm_neighbor_report=1
CMD: /bin/iwpriv wlan1 set_mib rm_ap_channel_report=1
CMD: /bin/dot11k_deamon -i wlan1
CMD: /bin/iwpriv wlan1 set_mib BssTransEnable=1
CMD: /bin/iwpriv wlan1 set_mib multiap_bss_type=0
CMD: /bin/iwpriv wlan1 set_mib a4_enable=0
CMD: /bin/iwpriv wlan1 set_mib multiap_monitor_mode_disable=1
CMD: /bin/iwpriv wlan1 set_mib 802_1x=1
CMD: /bin/iwpriv wlan1 set_mib band=11
CMD: /bin/iwpriv wlan1 set_mib deny_legacy=0
CMD: /bin/iwpriv wlan1 set_mib lgyEncRstrct=15
CMD: /bin/iwpriv wlan1 set_mib wifi_specific=2
CMD: /bin/iwpriv wlan1 set_mib cts2self=1
CMD: /bin/iwpriv wlan1 set_mib disable_protection=1
CMD: /bin/iwpriv wlan1 set_mib block_relay=0
CMD: /bin/iwpriv wlan1 set_mib qos_enable=1
CMD: /bin/iwpriv wlan1 set_mib apsd_enable=0
CMD: /bin/iwpriv wlan1 set_mib use40M=1
CMD: /bin/iwpriv wlan1 set_mib 2ndchoffset=1
CMD: /bin/iwpriv wlan1 set_mib coexist=0
CMD: /bin/iwpriv wlan1 set_mib shortGI20M=1
CMD: /bin/iwpriv wlan1 set_mib shortGI40M=1
CMD: /bin/iwpriv wlan1 set_mib shortGI80M=1
CMD: /bin/iwpriv wlan1 set_mib ampdu=1
CMD: /bin/iwpriv wlan1 set_mib amsdu=0
C[ 21.290000] eric-8822 [ODM_software_init][15466]
MD: /bin/iwpriv [ 21.300000] clock 25MHz
wlan1 set_mib vap_enable=1
[ 21.300000] [PHY_REG_PG_8192Fmp]
CMD: /bin/brctl addif br0 wlan1
CMD: /bin/iwpriv wlan1 set_mib func_off=0
CMD: /bin/ifconfig wlan1 up
[ 21.680000] start_addr=(0x2000), end_addr=(0x10000), buffer_size=(0xe000), smp_number_max=(7168)
[ 22.010000] br0: port 7(wlan1) entered forwarding state
[ 22.010000] br0: port 7(wlan1) entered forwarding state
CMD: /bin/iwpriv wlan1-vap0 set_mib ssid=PLDTHOMEFIBR53589_ap1
CMD: /bin/iwpriv wlan1-vap0 set_mib rtsthres=2347
CMD: /bin/iwpriv wlan1-vap0 set_mib fragthres=2346
CMD: /bin/iwpriv wlan1-vap0 set_mib aclnum=0
CMD: /bin/iwpriv wlan1-vap0 set_mib aclmode=0
CMD: /bin/ebtables -F wlan_block
CMD: /bin/iwpriv wlan1-vap0 set_mib authtype=2
CMD: /bin/iwpriv wlan1-vap0 set_mib band=11
CMD: /bin/iwpriv wlan1-vap0 set_mib autorate=1
CMD: /bin/iwpriv wlan1-vap0 set_mib hiddenAP=0
CMD: /bin/iwpriv wlan1-vap0 set_mib qos_enable=1
CMD: /bin/iwpriv wlan1-vap0 set_mib block_relay=0
CMD: /bin/iwpriv wlan1-vap0 set_mib deny_legacy=0
CMD: /bin/iwpriv wlan1-vap0 set_mib wpa_cipher=0
CMD: /bin/iwpriv wlan1-vap0 set_mib wpa2_cipher=8
CMD: /bin/iwpriv wlan1-vap0 set_mib psk_enable=2
CMD: /bin/iwpriv wlan1-vap0 set_mib passphrase=PLDTWIFI42QMK
CMD: /bin/iwpriv wlan1-vap0 set_mib gk_rekey=86400
CMD: /bin/iwpriv wlan1-vap0 set_mib dot11IEEE80211W=0
CMD: /bin/iwpriv wlan1-vap0 set_mib enableSHA256=0
CMD: /bin/iwpriv wlan1-vap0 set_mib encmode=2
CMD: /bin/iwpriv wlan1-vap0 set_mib rm_activated=0
CMD: /bin/iwpriv wlan1-vap0 set_mib BssTransEnable=0
CMD: /bin/iwpriv wlan1-vap0 set_mib multiap_bss_type=0
CMD: /bin/iwpriv wlan1-vap0 set_mib a4_enable=0
CMD: /bin/iwpriv wlan1-vap0 set_mib multiap_monitor_mode_disable=1
CMD: /bin/iwpriv wlan1-vap0 set_mib 802_1x=1
CMD: /bin/iwpriv wlan1-vap0 set_mib lgyEncRstrct=15
CMD: /bin/iwpriv wlan1-vap0 set_mib wifi_specific=2
CMD: /bin/iwpriv wlan1-vap0 set_mib disable_protection=1
CMD: /bin/iwpriv wlan1-vap0 set_mib use40M=1
CMD: /bin/iwpriv wlan1-vap0 set_mib 2ndchoffset=1
CMD: /bin/iwpriv wlan1-vap0 set_mib coexist=0
CMD: /bin/iwpriv wlan1-vap0 set_mib shortGI20M=1
CMD: /bin/iwpriv wlan1-vap0 set_mib shortGI40M=1
CMD: /bin/iwpriv wlan1-vap0 set_mib shortGI80M=1
CMD: /bin/iwpriv wlan1-vap0 set_mib ampdu=1
CMD: /bin/iwpriv wlan1-vap0 set_mib amsdu=0
CMD: /bin/iwpriv wlan1-vap1 set_mib ssid=PLDTHOMEFIBR53589_ap2
CMD: /bin/iwpriv wlan1-vap1 set_mib rtsthres=2347
CMD: /bin/iwpriv wlan1-vap1 set_mib fragthres=2346
CMD: /bin/iwpriv wlan1-vap1 set_mib aclnum=0
CMD: /bin/iwpriv wlan1-vap1 set_mib aclmode=0
CMD: /bin/ebtables -F wlan_block
CMD: /bin/iwpriv wlan1-vap1 set_mib authtype=2
CMD: /bin/iwpriv wlan1-vap1 set_mib band=11
CMD: /bin/iwpriv wlan1-vap1 set_mib autorate=1
CMD: /bin/iwpriv wlan1-vap1 set_mib hiddenAP=0
CMD: /bin/iwpriv wlan1-vap1 set_mib qos_enable=1
CMD: /bin/iwpriv wlan1-vap1 set_mib block_relay=0
CMD: /bin/iwpriv wlan1-vap1 set_mib deny_legacy=0
CMD: /bin/iwpriv wlan1-vap1 set_mib wpa_cipher=0
CMD: /bin/iwpriv wlan1-vap1 set_mib wpa2_cipher=8
CMD: /bin/iwpriv wlan1-vap1 set_mib psk_enable=2
CMD: /bin/iwpriv wlan1-vap1 set_mib passphrase=PLDTWIFI42QMK
CMD: /bin/iwpriv wlan1-vap1 set_mib gk_rekey=86400
CMD: /bin/iwpriv wlan1-vap1 set_mib dot11IEEE80211W=0
CMD: /bin/iwpriv wlan1-vap1 set_mib enableSHA256=0
CMD: /bin/iwpriv wlan1-vap1 set_mib encmode=2
CMD: /bin/iwpriv wlan1-vap1 set_mib rm_activated=0
CMD: /bin/iwpriv wlan1-vap1 set_mib BssTransEnable=0
CMD: /bin/iwpriv wlan1-vap1 set_mib multiap_bss_type=0
CMD: /bin/iwpriv wlan1-vap1 set_mib a4_enable=0
CMD: /bin/iwpriv wlan1-vap1 set_mib multiap_monitor_mode_disable=1
CMD: /bin/iwpriv wlan1-vap1 set_mib 802_1x=1
CMD: /bin/iwpriv wlan1-vap1 set_mib lgyEncRstrct=15
CMD: /bin/iwpriv wlan1-vap1 set_mib wifi_specific=2
CMD: /bin/iwpriv wlan1-vap1 set_mib disable_protection=1
CMD: /bin/iwpriv wlan1-vap1 set_mib use40M=1
CMD: /bin/iwpriv wlan1-vap1 set_mib 2ndchoffset=1
CMD: /bin/iwpriv wlan1-vap1 set_mib coexist=0
CMD: /bin/iwpriv wlan1-vap1 set_mib shortGI20M=1
CMD: /bin/iwpriv wlan1-vap1 set_mib shortGI40M=1
CMD: /bin/iwpriv wlan1-vap1 set_mib shortGI80M=1
CMD: /bin/iwpriv wlan1-vap1 set_mib ampdu=1
CMD: /bin/iwpriv wlan1-vap1 set_mib amsdu=0
CMD: /bin/iwpriv wlan1-vap2 set_mib ssid=PLDTHOMEFIBR53589_ap3
CMD: /bin/iwpriv wlan1-vap2 set_mib rtsthres=2347
CMD: /bin/iwpriv wlan1-vap2 set_mib fragthres=2346
CMD: /bin/iwpriv wlan1-vap2 set_mib aclnum=0
CMD: /bin/iwpriv wlan1-vap2 set_mib aclmode=0
CMD: /bin/ebtables -F wlan_block
CMD: /bin/iwpriv wlan1-vap2 set_mib authtype=2
CMD: /bin/iwpriv wlan1-vap2 set_mib band=11
CMD: /bin/iwpriv wlan1-vap2 set_mib autorate=1
CMD: /bin/iwpriv wlan1-vap2 set_mib hiddenAP=0
CMD: /bin/iwpriv wlan1-vap2 set_mib qos_enable=1
CMD: /bin/iwpriv wlan1-vap2 set_mib block_relay=0
CMD: /bin/iwpriv wlan1-vap2 set_mib deny_legacy=0
CMD: /bin/iwpriv wlan1-vap2 set_mib wpa_cipher=0
CMD: /bin/iwpriv wlan1-vap2 set_mib wpa2_cipher=8
CMD: /bin/iwpriv wlan1-vap2 set_mib psk_enable=2
CMD: /bin/iwpriv wlan1-vap2 set_mib passphrase=PLDTWIFI42QMK
CMD: /bin/iwpriv wlan1-vap2 set_mib gk_rekey=86400
CMD: /bin/iwpriv wlan1-vap2 set_mib dot11IEEE80211W=0
CMD: /bin/iwpriv wlan1-vap2 set_mib enableSHA256=0
CMD: /bin/iwpriv wlan1-vap2 set_mib encmode=2
CMD: /bin/iwpriv wlan1-vap2 set_mib rm_activated=0
CMD: /bin/iwpriv wlan1-vap2 set_mib BssTransEnable=0
CMD: /bin/iwpriv wlan1-vap2 set_mib multiap_bss_type=0
CMD: /bin/iwpriv wlan1-vap2 set_mib a4_enable=0
CMD: /bin/iwpriv wlan1-vap2 set_mib multiap_monitor_mode_disable=1
CMD: /bin/iwpriv wlan1-vap2 set_mib 802_1x=1
CMD: /bin/iwpriv wlan1-vap2 set_mib lgyEncRstrct=15
CMD: /bin/iwpriv wlan1-vap2 set_mib wifi_specific=2
CMD: /bin/iwpriv wlan1-vap2 set_mib disable_protection=1
CMD: /bin/iwpriv wlan1-vap2 set_mib use40M=1
CMD: /bin/iwpriv wlan1-vap2 set_mib 2ndchoffset=1
CMD: /bin/iwpriv wlan1-vap2 set_mib coexist=0
CMD: /bin/iwpriv wlan1-vap2 set_mib shortGI20M=1
CMD: /bin/iwpriv wlan1-vap2 set_mib shortGI40M=1
CMD: /bin/iwpriv wlan1-vap2 set_mib shortGI80M=1
CMD: /bin/iwpriv wlan1-vap2 set_mib ampdu=1
CMD: /bin/iwpriv wlan1-vap2 set_mib amsdu=0
Total WPA/WPA2 number is 0
CMD: /bin/ebtables -F wlan_map_block
CMD: /bin/iptables -F tr069
CMD: /bin/ip6tables -F ipv6_tr069
CMD: /bin/iptables -A tr069 -i br0 -p tcp --dport 7547 -j REJECT --reject-with tcp-reset
CMD: /bin/iptables -A tr069 ! -i nas0_1 -p tcp --dport 7547 -j REJECT --reject-with tcp-reset
CMD: /bin/ip6tables -A ipv6_tr069 -p TCP --dport 7547 -j ACCEPT
CMD: /bin/cwmpClient
CMD: /bin/udhcpd -S /var/udhcpd/udhcpd.conf
sh: can't create /proc/br_igmpsnoop: nonexistent directory
sh: can't create /proc/br_igmpquery: nonexistent directory
Start udhcpd server!
sh: can't create /proc/br_mldsnoop: nonexistent directory
udhcp server/relay (v0.9.8) started
Run Server function only
dhcpd server read configfile:p[ 22.730000] do_rtdrv_ext_igmpHook_set_ctl cmd (16018)
oolname=default
[ 22.730000] do_rtdrv_ext_igmpHook_set_ctl cmd (16018)
unable to parse[ 22.740000] do_rtdrv_ext_igmpHook_set_ctl cmd (16018)
'opt tzstring '[ 22.750000] do_rtdrv_ext_igmpHook_set_ctl cmd (16018)
Listening on S[ 22.750000] do_rtdrv_ext_igmpHook_set_ctl cmd (16018)
ocket/br0
Sendi[ 22.760000] do_rtdrv_ext_igmpHook_set_ctl cmd (16018)
ng on Socket/b[ 22.770000] do_rtdrv_ext_igmpHook_set_ctl cmd (16018)
r0
sh: can't cr[ 22.770000] do_rtdrv_ext_igmpHook_set_ctl cmd (16018)
eate /proc/br_mldquery: nonexistent directory
IGMP Snooping: enabled
MLD Snooping: enabled
CMD: /bin/ebtables -D INPUT -j portmapping_input
Illegal target name 'portmapping_input'.
CMD: /bin/ebtables -F portmapping_input
Chain 'portmapping_input' doesn't exist.
CMD: /bin/ebtables -X portmapping_input
Chain 'portmapping_input' doesn't exist.
CMD: /bin/ebtables -D OUTPUT -j portmapping_output
Illegal target name 'portmapping_output'.
CMD: /bin/ebtables -F portmapping_output
Chain 'portmapping_output' doesn't exist.
CMD: /bin/ebtables -X portmapping_output
Chain 'portmapping_output' doesn't exist.
CMD: /bin/ebtables -F portmapping_service
Chain 'portmapping_service' doesn't exist.
CMD: /bin/ebtables -X portmapping_service
cwmp_flag=30
<main.c>Set No Debug Message!
<cwmp_utility.c>Set No Debug Message[1]
<main.c>Set Delay!
<cwmp_utility.c>Set Delay[28]
<cwmp_utility.c>Set gPrintSoap[0]
<cwmp_utility.c>Set gRandomInform[0]
<cwmp_utility.c>Set gLibUseIpv6[1]
[update_monitor_list_file:23108] process_name = cwmpClient, action = 1
<cwmp_solarInit:24>INFO: Prepare to init maserati listener.
<cwmp_solarListener:46>INFO: Start maserati event listener thread.
New file monitor_list change.
Chain 'portmapping_service' doesn't exist.
CMD: /bin/ebtables -D FORWARD -j portmapping
Illegal target name 'portmapping'.
CMD: /bin/ebtables -F portmapping
Chain 'portmapping' doesn't exist.
CMD: /bin/ebtables -X portmapping
enter cwmp_main!
BuileTime
Mar 15 2023 18:50:33
Chain 'portmapping' doesn't exist.
CMD: /bin/ebtables -t broute -D BROUTING -j portmapping_broute
Illegal target name 'portmapping_broute'.
CMD: /bin/ebtables -t broute -F portmapping_broute
Chain 'portmapping_broute' doesn't exist.
CMD: /bin/ebtables -t broute -X portmapping_broute
Chain 'portmapping_broute' doesn't exist.
Start cwmp_main() !
========== CWMP library ==========
CMD: /bin/iptables -t mangle -D FORWARD -j portmapping_rt_tbl
94ec990
Tue Mar 23 22:28:11 2021 +0800
[cwmp] add additional delay up time (20 sec.) if current CWMP WAN is default route
Build time: 20210611_15:25:12
==================================
<port_update_CWMP_diagnose_status:4255> diagnose_type = 1, status_code = 0
iptables v1.4.18: Couldn't load target `portmapping_rt_tbl':No such file or directory
Try `iptables -h' or 'iptables --help' for more information.
CMD: /bin/iptables -t mangle -F portmapping_rt_tbl
iptables: No chain/target/match by that name.
CMD: /bin/iptable[ 23.010000] br0: port 7(wlan1) entered forwarding state
s -t mangle -X portmapping_rt_tbl
iptables: No chain/target/match by that name.
CMD: /bin/ip6tables -t mangle -D FORWARD -j portmapping_rt_tbl
ip6tables v1.4.18: Couldn't load target `portmapping_rt_tbl':No such file or directory
Try `ip6tables -h' or 'ip6tables --help' for more information.
CMD: /bin/ip6tables -t mangle -F portmapping_rt_tbl
ip6tables: No chain/target/match by that name.
CMD: /bin/ip6tables -t mangle -X portmapping_rt_tbl
ip6tables: No chain/target/match by that name.
CMD: /bin/ebtables -F portmapping_nas0_0_in
Chain 'portmapping_nas0_0_in' doesn't exist.
CMD: /bin/ebtables -X portmapping_nas0_0_in
Chain 'portmapping_nas0_0_in' doesn't exist.
CMD: /bin/ebtables -F portmapping_nas0_0_out
Chain 'portmapping_nas0_0_out' doesn't exist.
CMD: /bin/ebtables -X portmapping_nas0_0_out
Chain 'portmapping_nas0_0_out' doesn't exist.
CMD: /bin/iptables -t mangle -A portmapping_rt_tbl -i nas0_0 -j MARK --set-mark 0x0/0x0
iptables: No chain/target/match by that name.
CMD: /bin/ip6tables -t mangle -A portmapping_rt_tbl -i nas0_0 -j MARK --set-mark 0x0/0x0
ip6tables: No chain/target/match by that name.
CMD: /bin/ebtables -F portmapping_nas0_1_in
Chain 'portmapping_nas0_1_in' doesn't exist.
CMD: /bin/ebtables -X portmapping_nas0_1_in
Chain 'portmapping_nas0_1_in' doesn't exist.
CMD: /bin/ebtables -F portmapping_nas0_1_out
Chain 'portmapping_nas0_1_out' doesn't exist.
CMD: /bin/ebtables -X portmapping_nas0_1_out
Chain 'portmapping_nas0_1_out' doesn't exist.
CMD: /bin/iptables -t mangle -A portmapping_rt_tbl -i nas0_1 -j MARK --set-mark 0x0/0x0
iptables: No chain/target/match by that name.
CMD: /bin/ip6tables -t mangle -A portmapping_rt_tbl -i nas0_1 -j MARK --set-mark 0x0/0x0
ip6tables: No chain/target/match by that name.
CMD: /bin/ebtables -F portmapping_nas0_2_in
Chain 'portmapping_nas0_2_in' doesn't exist.
CMD: /bin/ebtables -X portmapping_nas0_2_in
Chain 'portmapping_nas0_2_in' doesn't exist.
CMD: /bin/ebtables -F portmapping_nas0_2_out
Chain 'portmapping_nas0_2_out' doesn't exist.
CMD: /bin/ebtables -X portmapping_nas0_2_out
Chain 'portmapping_nas0_2_out' doesn't exist.
CMD: /bin/iptables -t mangle -A portmapping_rt_tbl -i nas0_2 -j MARK --set-mark 0x0/0x0
iptables: No chain/target/match by that name.
CMD: /bin/ip6tables -t mangle -A portmapping_rt_tbl -i nas0_2 -j MARK --set-mark 0x0/0x0
ip6tables: No chain/target/match by that name.
CMD: /bin/ebtables -N portmapping_input
CMD: /bin/ebtables -P portmapping_input RETURN
CMD: /bin/ebtables -A INPUT -j portmapping_input
CMD: /bin/ebtables -N portmapping_output
CMD: /bin/ebtables -P portmapping_output RETURN
CMD: /bin/ebtables -A OUTPUT -j portmapping_output
CMD: /bin/ebtables -N portmapping_service
CMD: /bin/ebtables -P portmapping_service RETURN
CMD: /bin/ebtables -A portmapping_service -p ipv4 --ip-proto udp --ip-dport 67:68 -j DROP
CMD: /bin/ebtables -A portmapping_service -p ipv4 --ip-proto 2 -j DROP
CMD: /bin/ebtables -A portmapping_service -d multicast -p ipv4 --ip-proto ! icmp -j DROP
CMD: /bin/ebtables -A portmapping_service -p ipv6 --ip6-proto udp --ip6-dport 546:547 -j DROP
CMD: /bin/ebtables -A portmapping_service -p ipv6 --ip6-proto ipv6-icmp --ip6-icmp-type 130:134 -j DROP
CMD: /bin/ebtables -A portmapping_service -d multicast -p ipv6 --ip6-proto ! ipv6-icmp -j DROP
CMD: /bin/ebtables -N portmapping
CMD: /bin/ebtables -P portmapping RETURN
CMD: /bin/ebtables -A FORWARD -j portmapping
CMD: /bin/ebtables -t broute -N portmapping_broute
CMD: /bin/ebtables -t broute -P portmapping_broute RETURN
CMD: /bin/ebtables -t broute -I BROUTING -j portmapping_broute
CMD: /bin/iptables -t mangle -N portmapping_rt_tbl
CMD: /bin/iptables -t mangle -A FORWARD -j portmapping_rt_tbl
CMD: /bin/ip6tables -t mangle -N portmapping_rt_tbl
CMD: /bin/ip6tables -t mangle -A FORWARD -j portmapping_rt_tbl
CMD: /bin/ebtables -F portmapping_nas0_0_in
Chain 'portmapping_nas0_0_in' doesn't exist.
CMD: /bin/ebtables -X portmapping_nas0_0_in
Chain 'portmapping_nas0_0_in' doesn't exist.
CMD: /bin/ebtables -F portmapping_nas0_0_out
Chain 'portmapping_nas0_0_out' doesn't exist.
CMD: /bin/ebtables -X portmapping_nas0_0_out
Chain 'portmapping_nas0_0_out' doesn't exist.
CMD: /bin/ebtables -N portmapping_nas0_0_in
CMD: /bin/ebtables -P portmapping_nas0_0_in DROP
CMD: /bin/ebtables -N portmapping_nas0_0_out
CMD: /bin/ebtables -P portmapping_nas0_0_out DROP
CMD: /bin/ebtables -F portmapping_nas0_0_in
CMD: /bin/ebtables -X portmapping_nas0_0_in
CMD: /bin/ebtables -F portmapping_nas0_0_out
CMD: /bin/ebtables -X portmapping_nas0_0_out
CMD: /bin/iptables -t mangle -A portmapping_rt_tbl -i nas0_0 -j MARK --set-mark 0x2000/0x3e000
CMD: /bin/ip6tables -t mangle -A portmapping_rt_tbl -i nas0_0 -j MARK --set-mark 0x2000/0x3e000
CMD: /bin/ebtables -F portmapping_nas0_1_in
Chain 'portmapping_nas0_1_in' doesn't exist.
CMD: /bin/ebtables -X portmapping_nas0_1_in
Chain 'portmapping_nas0_1_in' doesn't exist.
CMD: /bin/ebtables -F portmapping_nas0_1_out
Chain 'portmapping_nas0_1_out' doesn't exist.
CMD: /bin/ebtables -X portmapping_nas0_1_out
Chain 'portmapping_nas0_1_out' doesn't exist.
CMD: /bin/ebtables -N portmapping_nas0_1_in
CMD: /bin/ebtables -P portmapping_nas0_1_in DROP
CMD: /bin/ebtables -N portmapping_nas0_1_out
CMD: /bin/ebtables -P portmapping_nas0_1_out DROP
CMD: /bin/ebtables -I portmapping_nas0_1_in -o eth0.2.0 -j RETURN
CMD: /bin/ebtables -I portmapping_nas0_1_out -i eth0.2.0 -j RETURN
CMD: /bin/ebtables -A portmapping_output -o eth0.2.0 -j portmapping_nas0_1_out
CMD: /bin/ebtables -t broute -A portmapping_broute -i eth0.2.0 -j mark --mark-or 0x4000 --mark-target CONTINUE
CMD: /bin/ebtables -I portmapping_nas0_1_in -o eth0.3.0 -j RETURN
CMD: /bin/ebtables -I portmapping_nas0_1_out -i eth0.3.0 -j RETURN
CMD: /bin/ebtables -A portmapping_output -o eth0.3.0 -j portmapping_nas0_1_out
CMD: /bin/ebtables -t broute -A portmapping_broute -i eth0.3.0 -j mark --mark-or 0x4000 --mark-target CONTINUE
CMD: /bin/ebtables -I portmapping_nas0_1_in -o eth0.4.0 -j RETURN
CMD: /bin/ebtables -I portmapping_nas0_1_out -i eth0.4.0 -j RETURN
CMD: /bin/ebtables -A portmapping_output -o eth0.4.0 -j portmapping_nas0_1_out
CMD: /bin/ebtables -t broute -A portmapping_broute -i eth0.4.0 -j mark --mark-or 0x4000 --mark-target CONTINUE
CMD: /bin/ebtables -I portmapping_nas0_1_in -o wlan0 -j RETURN
CMD: /bin/ebtables -I portmapping_nas0_1_out -i wlan0 -j RETURN
CMD: /bin/ebtables -A portmapping_output -o wlan0 -j portmapping_nas0_1_out
CMD: /bin/ebtables -t broute -A portmapping_broute -i wlan0 -j mark --mark-or 0x4000 --mark-target CONTINUE
CMD: /bin/ebtables -I portmapping_nas0_1_in -o wlan1 -j RETURN
CMD: /bin/ebtables -I portmapping_nas0_1_out -i wlan1 -j RETURN
CMD: /bin/ebtables -A portmapping_output -o wlan1 -j portmapping_nas0_1_out
CMD: /bin/ebtables -t broute -A portmapping_broute -i wlan1 -j mark --mark-or 0x4000 --mark-target CONTINUE
CMD: /bin/ebtables -A portmapping_nas0_1_out -i ! nas0+ --mark 0x0/0x3e000 -o ! nas0+ -j RETURN
CMD: /bin/ebtables -A portmapping_nas0_1_in -i ! nas0+ -o ! nas0+ -j RETURN
Reset register status...
CMD: /bin/ebtables -A portmapping_nas0_1_out --mark 0x4000/0x3e000 -j RETURN
CMD: /bin/iptables -t mangle -A portmapping_rt_tbl -i nas0_1 -j MARK --set-mark 0x4000/0x3e000
CMD: /bin/ip6tables -t mangle -A portmapping_rt_tbl -i nas0_1 -j MARK --set-mark 0x4000/0x3e000
CMD: /bin/ebtables -F portmapping_nas0_2_in
Chain 'portmapping_nas0_2_in' doesn't exist.
CMD: /bin/ebtables -X portmapping_nas0_2_in
Chain 'portmapping_nas0_2_in' doesn't exist.
CMD: /bin/ebtables -F portmapping_nas0_2_out
Chain 'portmapping_nas0_2_out' doesn't exist.
CMD: /bin/ebtables -X portmapping_nas0_2_out
Chain 'portmapping_nas0_2_out' doesn't exist.
CMD: /bin/ebtables -N portmapping_nas0_2_in
CMD: /bin/ebtables -P portmapping_nas0_2_in DROP
CMD: /bin/ebtables -N portmapping_nas0_2_out
CMD: /bin/ebtables -P portmapping_nas0_2_out DROP
CMD: /bin/ebtables -I portmapping_nas0_2_in -o eth0.5.0 -j RETURN
CMD: /bin/ebtables -I portmapping_nas0_2_out -i eth0.5.0 -j RETURN
CMD: /bin/ebtables -A portmapping_input -i eth0.5.0 -j portmapping_service
CMD: /bin/ebtables -A portmapping_output -o eth0.5.0 -j portmapping_service
CMD: /bin/ebtables -A portmapping_output -o eth0.5.0 -j portmapping_nas0_2_out
CMD: /bin/ebtables -t broute -A portmapping_broute -i eth0.5.0 -j mark --mark-or 0x6000 --mark-target CONTINUE
CMD: /bin/ebtables -A portmapping -i eth0.5.0 -j portmapping_nas0_2_in
CMD: /bin/ebtables -A portmapping -o eth0.5.0 -j portmapping_nas0_2_out
CMD: /bin/ebtables -I portmapping_nas0_2_out -i nas0_2 -j RETURN
CMD: /bin/ebtables -I portmapping_nas0_2_in -o nas0_2 -j RETURN
CMD: /bin/ebtables -A portmapping -i nas0_2 -j portmapping_nas0_2_in
CMD: /bin/ebtables -A portmapping -o nas0_2 -j portmapping_nas0_2_out
CMD: /bin/ebtables -A portmapping_input -i nas0_2 -j portmapping_service
CMD: /bin/ebtables -A portmapping_output -o nas0_2 -j portmapping_service
CMD: /bin/ebtables -t broute -A portmapping_broute -i nas0_2 -j mark --mark-or 0x6000 --mark-target CONTINUE
CMD: /bin/ebtables -A portmapping_nas0_2_out -i ! nas0+ --mark 0x0/0x3e000 -o ! nas0+ -j RETURN
CMD: /bin/ebtables -A portmapping_nas0_2_in -i ! nas0+ -o ! nas0+ -j RETURN
CMD: /bin/ebtables -A portmapping_nas0_2_out --mark 0x6000/0x3e000 -j RETURN
CMD: /bin/iptables -t mangle -A portmapping_rt_tbl -i nas0_2 -j MARK --set-mark 0x6000/0x3e000
CMD: /bin/ip6tables -t mangle -A portmapping_rt_tbl -i nas0_2 -j MARK --set-mark 0x6000/0x3e0[ 23.890000] internal priority 3 00
subr_qos_3.mapping to wifi queue 1
c: setupIPQ 6007
[setupLanItfMap:691] lan_itf_map.map[1].name:eth0.2
[setupLa[ 23.900000] internal priority 3 nItfMap:691] lanmapping to wifi queue 1
_itf_map.map[2].name:eth0.3
[setupLanItfMap:691] lan_itf_map.map[3].name:eth0.4[ 23.920000] internal priority 2
[setupLanItfMamapping to wifi queue 1
p:691] lan_itf_map.map[4].name:eth0.5
[setupLanItfMap:703] lan_itf_map.map[5].n[ 23.930000] internal priority 2 ame:wlan0
[setumapping to wifi queue 1
pLanItfMap:703] lan_itf_map.map[9].name:wlan1
subr_qos_3.c: setupDefaultQdisc 5839
CMD: tc[ 23.950000] internal priority 1 qdisc add dev nmapping to wifi queue 1
as0_0 root handle 1: prio
CMD: tc qdisc add dev nas0_1 root handle 1: prio
[ 23.960000] internal priority 1 CMD: tc qdiscmapping to wifi queue 1
add dev nas0_2 root handle 1: prio
[1;33;46m<subr_qos_3.c 6126 setupIPQ> [mC[ 23.980000] internal priority 0 onfig QoS total mapping to wifi queue 1
upstream 2097144 Kbps downstream 1024000 Kbps
[1;33;46m<fc_api.c 3249 rtk_fc_t[ 23.990000] internal priority 0 otal_upstream_bamapping to wifi queue 1
ndwidth_set> [mbandwidth=2097144
[1;33;46m<fc_api.c 3277 rtk_fc_total_downstr[ 24.000000] 0
eam_bandwidth_set> [mbandwidth=1024000
system(): /bin/echo 3 1 > /proc/rtl8686gmac/wifi_tx_qos_mapping
system(): /bin/echo 3 1 > /proc/rtl8686gmac1/wifi_tx_qos_mapping
system(): /bin/echo 2 1 > /proc/rtl8686gmac/wifi_tx_qos_mapping
system(): /bin/echo 2 1 > /proc/rtl8686gmac1/wifi_tx_qos_mapping
s[ 24.030000] 0
ystem(): /bin/echo 1 1 > /proc/rtl8686gmac/wifi_tx_qos_mapping
system(): /bin/echo 1 1 > /proc/rtl8686gmac1/wifi_tx_qos_mapping
system(): /bin/echo 0 1 > /proc/rtl8686gmac/wifi_tx_qos_mapping
system(): /bin/echo 0 1 > /proc/rtl8686gmac1/wifi_tx_qos_mapping
CMD: /bin/upnpctrl down nas0_1 br0
upnpctrl(down): MINIUPNPD did not start!
restartLanV6Server - 2823
setup_radvd_conf_br0: Get prefix information failed.
[get_prefixv6_info_by_wan 3463] Error! Could not get delegation info from wanconn nas0_0, file /var/run/dhcpcV6.leases.nas0_0!
[get_prefixv6_info_by_wan 3463] Error! Could not get delegation info from wanconn nas0_1, file /var/run/dhcpcV6.leases.nas0_1!
CMD: /bin/sysconf send_unix_sock_message /var/run/systemd.usock do_ipv6_radvd
CMD: /bin/ifconfig br0 del 3ffe:501:ffff:100:9261:cff:feb5:3589/64
ifconfig: SIOCDIFADDR: Cannot assign requested address
Update Firewall rule set by user.
CMD: /bin/ip6tables -F ipv6filter
CMD: /bin/ip6tables -A ipv6filter -m state --state ESTABLISHED,RELATED -j RETURN
CMD: /bin/ethctl conntrack killall
CMD: /bin/ip6tables -A ipv6filter -m state --state ESTABLISHED,RELATED -j RETURN
Setup default Firewall rule.
CMD: /bin/ip6tables -A ipv6filter ! -i br+ -j DROP
vsntp: Kicked to wake-up by SIGUSR1
4 cpu
[ 24.200000] do_rtdrv_ext_igmpHook_set_ctl cmd (16018)
[ 24.210000] do_rtdrv_ext_igmpHook_set_ctl cmd (16018)
[ 24.220000] do_rtdrv_ext_igmpHook_set_ctl cmd (16018)
[ 24.220000] do_rtdrv_ext_igmpHook_set_ctl cmd (16018)
CMD: /bin/ip6tables -t nat -N v6_local_nat_tbl
CMD: /bin/ip6tables -t nat -F v6_local_nat_tbl
CMD: /bin/ip6tables -t nat -D POSTROUTING -j v6_local_nat_tbl
ip6tables: No chain/target/match by that name.
CMD: /bin/ip6tables -t nat -A POSTROUTING -j v6_local_nat_tbl
[lanNetInfo] died!
Restart lanNetInfo !!
killall: lanNetInfo: no process killed
[newDevcieInfoMsgInit 3324]:not find msg.
[newDevcieInfoMsgInit 3342]:init msg queue successfully
[initLanNetInfoData 2147]:init LanNetInfoData.
cfg_mib_update_fn:294 delay mib commit
connect 216.239.35.4: Network is unreachable
Password: connect 216.239.35.4: Network is unreachable
login: admin
Password:
login: admin
Password:
#
# connect 216.239.35.4: Network is unreachable
# [ 77.030000] num = 0x[1], val = 0x[0]
[ 77.030000] dying gasp interrupt!
[ 77.050000] str = [00000000:01000000]
[ 77.050000] str = [00000000:01
List of partitions (MTD)
| dev | size | erasesize | name |
|---|---|---|---|
| mtd0 | 000c0000 | 00020000 | “boot” |
| mtd1 | 00020000 | 00020000 | “env” |
| mtd2 | 00020000 | 00020000 | “env2” |
| mtd3 | 00020000 | 00020000 | “static_conf” |
| mtd4 | 07c60000 | 00020000 | “ubi_device” |
| mtd5 | 00a89000 | 0001f000 | “ubi_Config” |
| mtd6 | 00a0d000 | 0001f000 | “ubi_k0” |
| mtd7 | 01911000 | 0001f000 | “ubi_r0” |
| mtd8 | 00a0d000 | 0001f000 | “ubi_k1” |
| mtd9 | 01911000 | 0001f000 | “ubi_r1” |
To back up a volume, cat the appropriate /dev/ubi0_X device to a file or pipe, to restore a volume, use the ubiupdatevol utility.
This ONT supports dual boot.
Volumes ubi_k0 and ubi_r0 respectively contain kernel and rootfs of the first image, while ubi_k1 and ubi_r1 contain kernel and rootfs of the second one.
Useful files and binaries
Useful files
User Configuration:
/var/config/config.xml
Hardware Configuration:
/var/config/config_hs.xml
GPON/OMCI settings
Set OMCI mode to customized so versions don’t reset
mib set OMCI_OLT_MODE 3
Setting OMCI software version (ME 7)
mib set OMCI_SW_VER1 YOURSWVER
mib set OMCI_SW_VER2 YOURSWVER
Setting OMCI vendor ID (ME 256)
mib set PON_VENDOR_ID VEND
Setting ONU GPON Serial Number
mib set GPON_SN VEND1234ABCD
Setting OMCI hardware version (ME 256)
mib set HW_HWVER YOURHWVER
Setting OMCC version (ME 257), only accepts decimal values.
mib set OMCC_VER 128
Setting Product Code (ME 257), only accepts decimal values.
mib set OMCI_VENDOR_PRODUCT_CODE 0
Setting OMCI equipment ID (ME 257)
mib set GPON_ONU_MODEL YOUREQUIPMENTID
Setting VEIP slot ID (example for 255), only accepts decimal values.
mib set OMCI_VEIP_SLOT_ID 255
Commit Changes.
mib commit
Verification commands for settings changed above (all settings take a reboot to apply)
Verify SwVer (ME 7)
omcicli mib get 7
Verify Vendor ID, HwVer, and G984 Serial (ME 256)
omcicli mib get 256
Verify OMCC version, Equipment ID and Product Code (ME 257)
omcicli mib get 257
Verify VEIP customized slot ID (ME 329)
omcicli mib get 329
Advanced Settings
Setting management MAC
mib set ELAN_MAC_ADDR 1A2B3C4D5E6F
Setting management IP
mib set LAN_IP_ADDR 192.168.8.1
Switch PON Mode
# GPON mode
mib set PON_MODE 1
# EPON mode
mib set PON_MODE 2
# Ethernet mode
mib set PON_MODE 3
Checking the currently active image
nv getenv sw_active
Booting to a different image
# Switch to image 0
nv setenv sw_commit 0
nv setenv sw_tryactive 0
# Switch to image 1
nv setenv sw_commit 1
nv setenv sw_tryactive 1
Cloning of image 0 into image 1
cp /dev/ubi0_1 /tmp/
cp /dev/ubi0_2 /tmp/
ubiupdatevol /dev/ubi0_3 /tmp/ubi0_1
ubiupdatevol /dev/ubi0_4 /tmp/ubi0_2
Rebooting the ONU
reboot
Enable Ethernet Ports
# enable lan 1
mib set SW_PORT_TBL.0.Enable 1
# disable lan 1 power down state
diag port set phy-force-power-down port 0 state disable
#enable lan 2
mib set SW_PORT_TBL.1.Enable 1
# disable lan 2 power down state
diag port set phy-force-power-down port 1 state disable
# enable lan 3
mib set SW_PORT_TBL.2.Enable 1
# disable lan 3 power down state
diag port set phy-force-power-down port 2 state disable
#enable lan 4
mib set SW_PORT_TBL.3.Enable 1
# disable lan 4 power down state
diag port set phy-force-power-down port 3 state disable
mib commit
Enable WiFi
# 5GHz
mib set WLAN_MBSSIB_TBL.0.wlanDisabled 0
# 2.4GHz
mib set WLAN1_MBSSIB_TBL.0.wlanDisabled 0
sysconf multi_ap_wlan_reinit
Teardown and other photos
