Hardware Specifications
| Vendor/Brand | AVM GmbH |
| Model | G-95SP |
| ODM | CIG |
| ODM Product Code | G-95SP |
| Chipset | Lantiq PEB98035 |
| CPU | |
| CPU Clock | |
| Flash | |
| RAM | |
| System | Linux (kernel 3.10.4, AVM firmware SFP_7.5.13) |
| SFP interfaces | SGMII, 1000BASE-X |
| Optics | SC/APC |
| IP address | 192.168.47.1 |
| Web Gui | No |
| SSH | No |
| Telnet | No |
| Serial | |
| Form Factor | miniONT SFP |

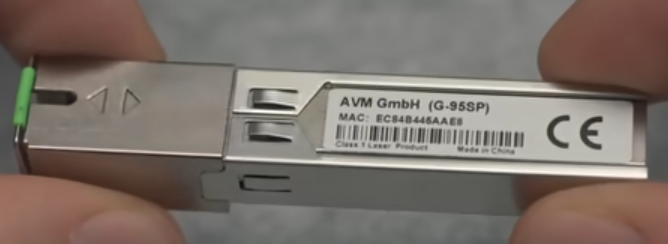

The AVM GmbH (G-95SP) is the CIG G-95SP with an AVM firmware, shipped together with some FRITZ!Box models with an SFP cage (e.g. FRITZ!Box 5491). For the optical and electrical specifications and the pinout see the CIG G-95SP page.
The firmware image of the stick (SFP_7.5.13, MIPS uImage with Linux 3.10.4 and a SquashFS root filesystem) is contained in the FRITZ!Box firmware.
AVM configuration protocol
The stick does not store the GPON serial number: when the FRITZ!Box detects the SFP it opens a TCP connection to the stick on 192.168.47.1:8888 (the FRITZ!Box uses 192.168.47.2) and pushes the configuration with a binary protocol. The stick does not listen on other ports.
The protocol is not documented. A capture taken from a FRITZ!Box 5491 (see the videos linked below) contains the following messages, each one starting with the AVM magic:
41564d00000007000400000001
41564d000000030000
41564d000200120000
41564d0604000b000400000001
41564d060600080000
41564d00080009000a4621426f783534393100
41564d000a0010000d30372e31325f312e332e323600
41564d000c000c0000
41564d000e000a000a20202020202020202020
41564d00100013000c41564d473632373233383341
41564d0012000d0000
41564d001400140000Some of the payloads are readable strings:
F!Box5491(shortened product name of the FRITZ!Box 5491)07.12_1.3.26(probably a firmware version)- 10 spaces (probably the PLOAM password)
AVMG6272383A(the GPON serial number)
Replaying the captured frames (e.g. with tcpreplay) brings the stick online with other hardware.
Note
The capture and its decoding come from issue #46. If you have a G-95SP and a FRITZ!Box, captures from other models or ISPs are welcome.
